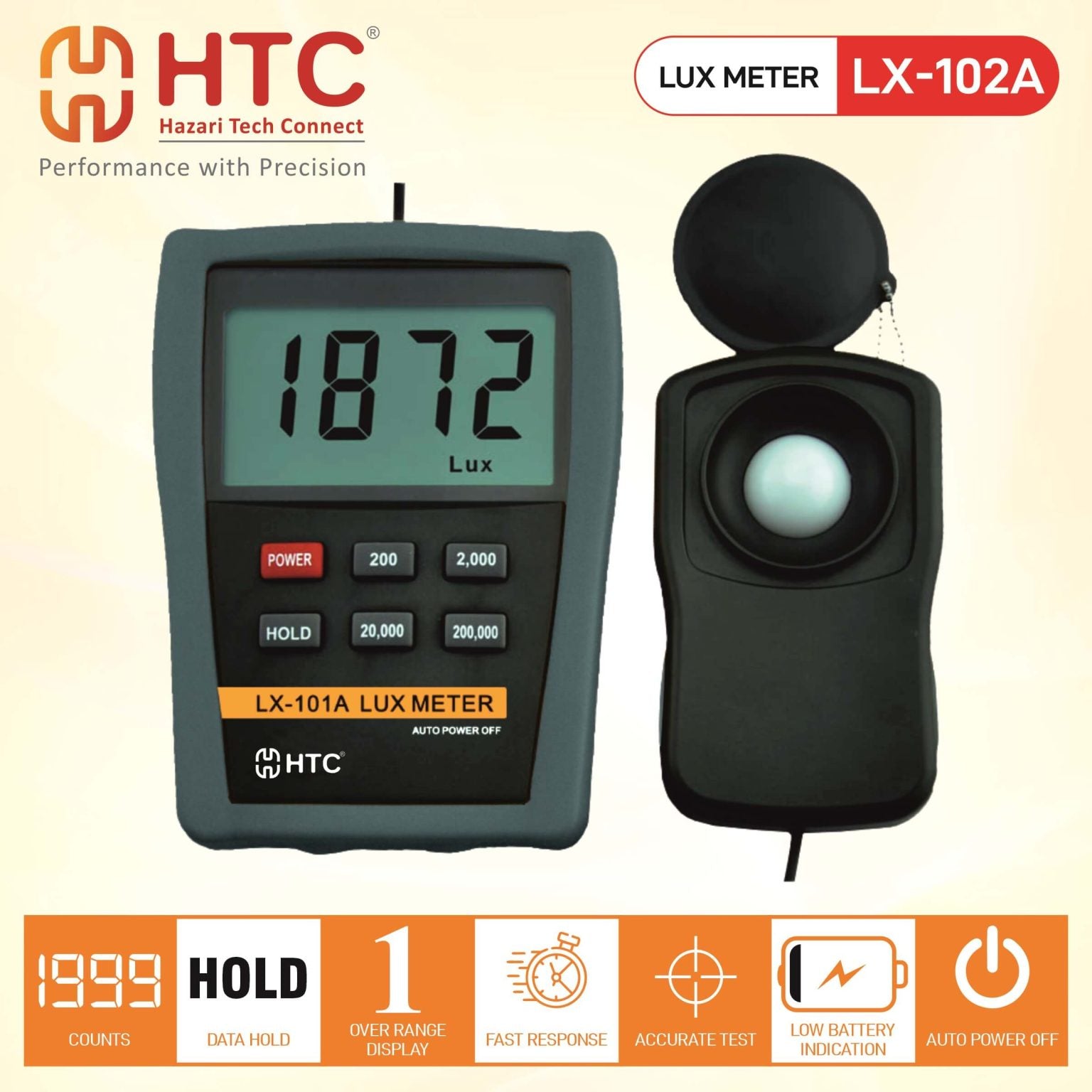

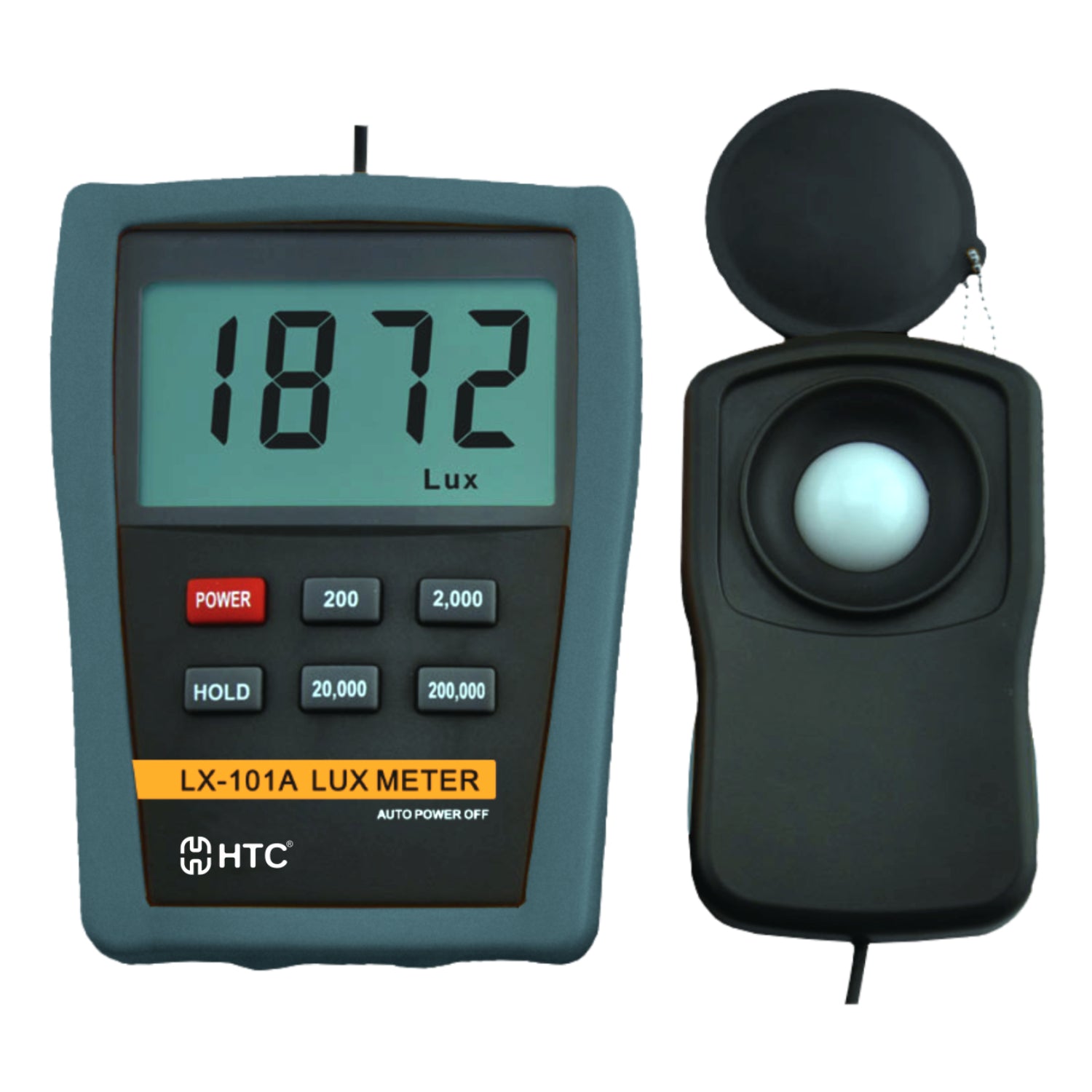

HTC LX-101A Lux Meter

HTC LX-101A Lux Meter

The HTC LX-101A Lux Meter is a reliable and easy-to-use digital light intensity meter designed to measure illumination levels in Lux (lx). It is widely used for lighting inspections in offices, factories, schools, hospitals, warehouses, photography studios, laboratories, and environmental monitoring. Featuring a separate photo sensor, wide measuring range, and fast response time, the LX-101A provides accurate and consistent light measurements for professional and general-purpose applications.

Key Features

• Measures illumination levels in Lux (lx).
• Wide measurement range from 0.1 Lux to 200,000 Lux.
• High-precision silicon photoelectric diode sensor with color correction filter.

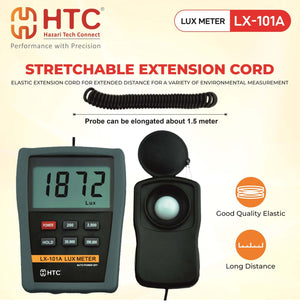

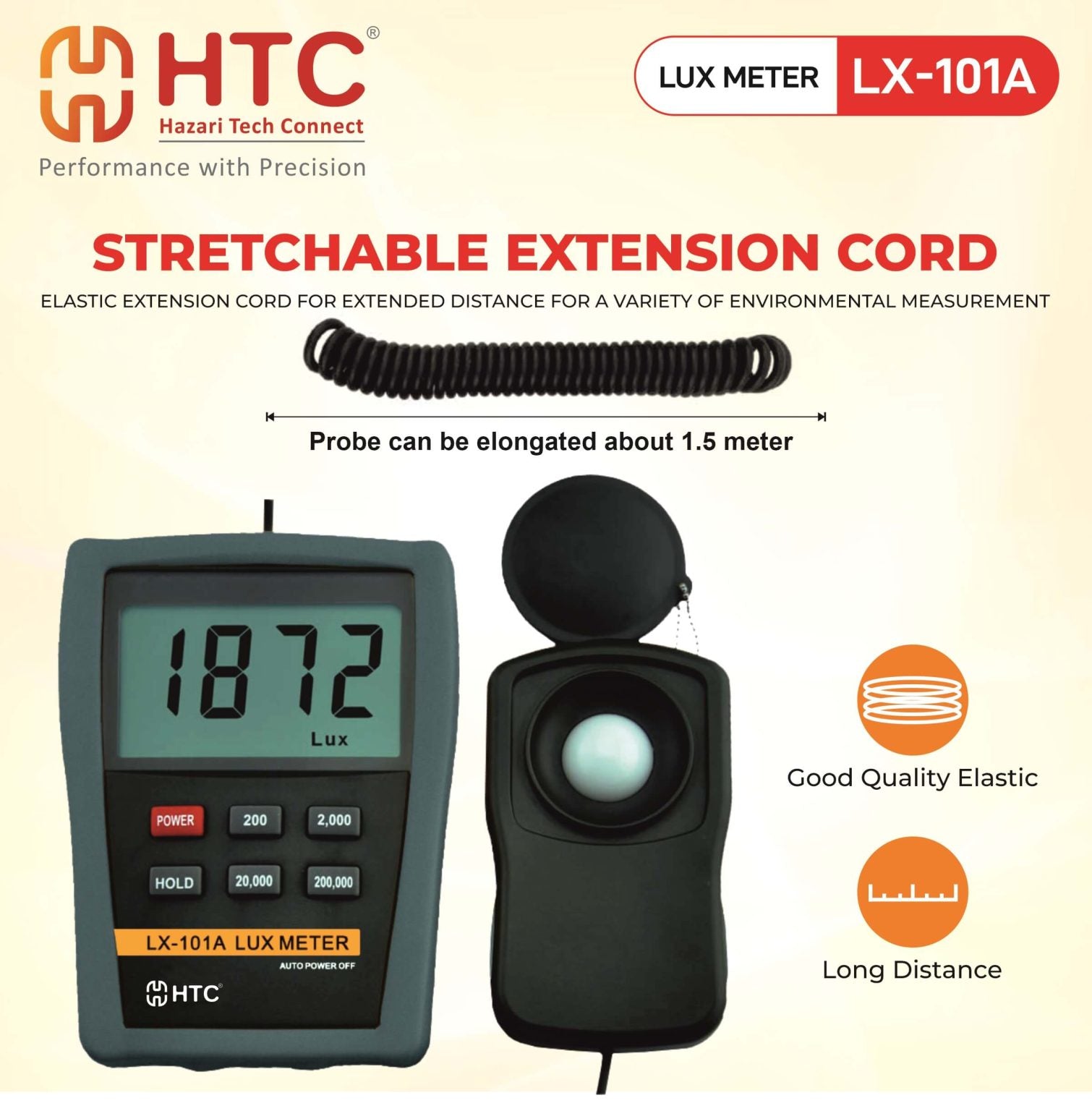

• Separate light sensor for flexible and accurate measurements.
• 3½-digit LCD display with 1999 counts.
• Fast response time for quick readings.
• Data Hold function to freeze displayed values.
• Automatic Zero Adjustment.
• Low Battery indication.
• Auto Power Off (APO) to extend battery life.
• Compact, lightweight, and ergonomic handheld design.



Technical Specifications

Parameter  Specification

Measurement Unit : Lux (lx)

Measuring Range : 0.1 to 200,000 Lux

Display : 3½-digit LCD (1999 counts)

Resolution : 0.1 Lux

Accuracy : ±5% of reading ±10% FS

Sensor : Silicon Photoelectric Diode

Response Time : Fast Response

Functions : Data Hold, Auto Zero, Low Battery Indicator

Power Supply : 1 × 9V (6F22) Battery

Auto Power Off : Yes

Meter Dimensions : 130 × 95 × 30 mm

Sensor Dimensions : 100 × 60 × 27 mm

Weight : Approximately 300 g

Applications

• Office and workplace lighting inspections
• Factory and industrial illumination testing
• Educational institutions and classrooms
• Hospitals and healthcare facilities
• Warehouses and storage areas
• Photography and videography studios
• Laboratories and research facilities
• Building maintenance and facility management
• Environmental and occupational safety monitoring

Benefits

• Accurately measures ambient light for compliance with lighting standards.
• Wide measurement range suitable for both dim and brightly illuminated environments.
• Separate sensor allows convenient measurements in hard-to-reach locations.
• Fast response ensures efficient lighting inspections.
• Compact and lightweight design is ideal for field technicians.
• Data Hold function simplifies recording and reporting of measurements.
• Durable construction suitable for everyday professional use.

Package Contents

• HTC LX-101A Lux Meter
• Remote Light Sensor
• 9V Battery
• Soft Carrying Case
• User Manual

The HTC LX-101A Lux Meter is an economical and dependable light measurement instrument, offering accurate illumination readings up to 200,000 Lux. Its portable design, remote sensor, and user-friendly features make it an excellent choice for electricians, facility managers, safety inspectors, laboratory professionals, and maintenance technicians who require precise light intensity measurements.
