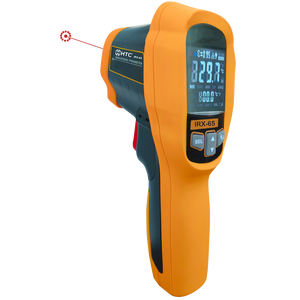

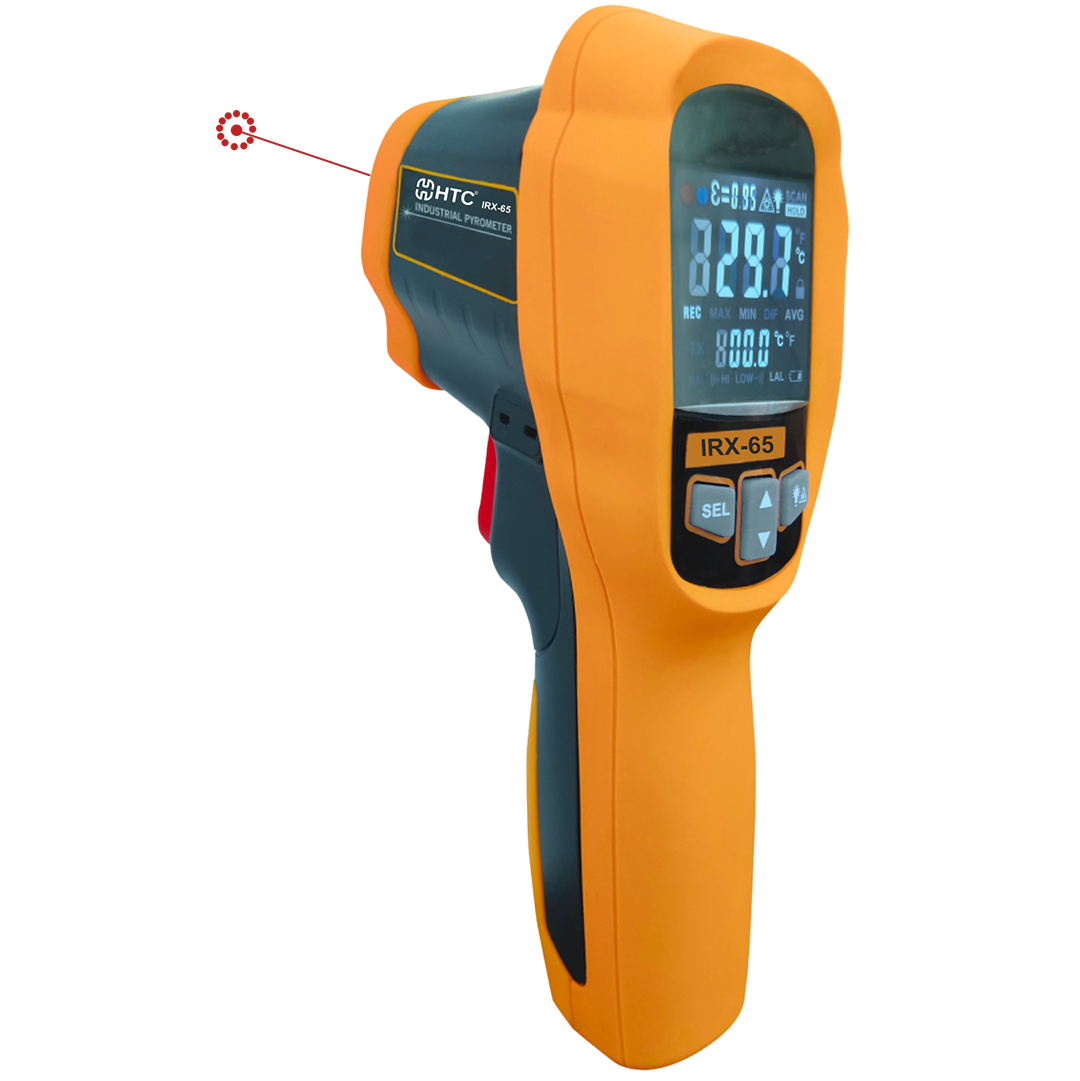

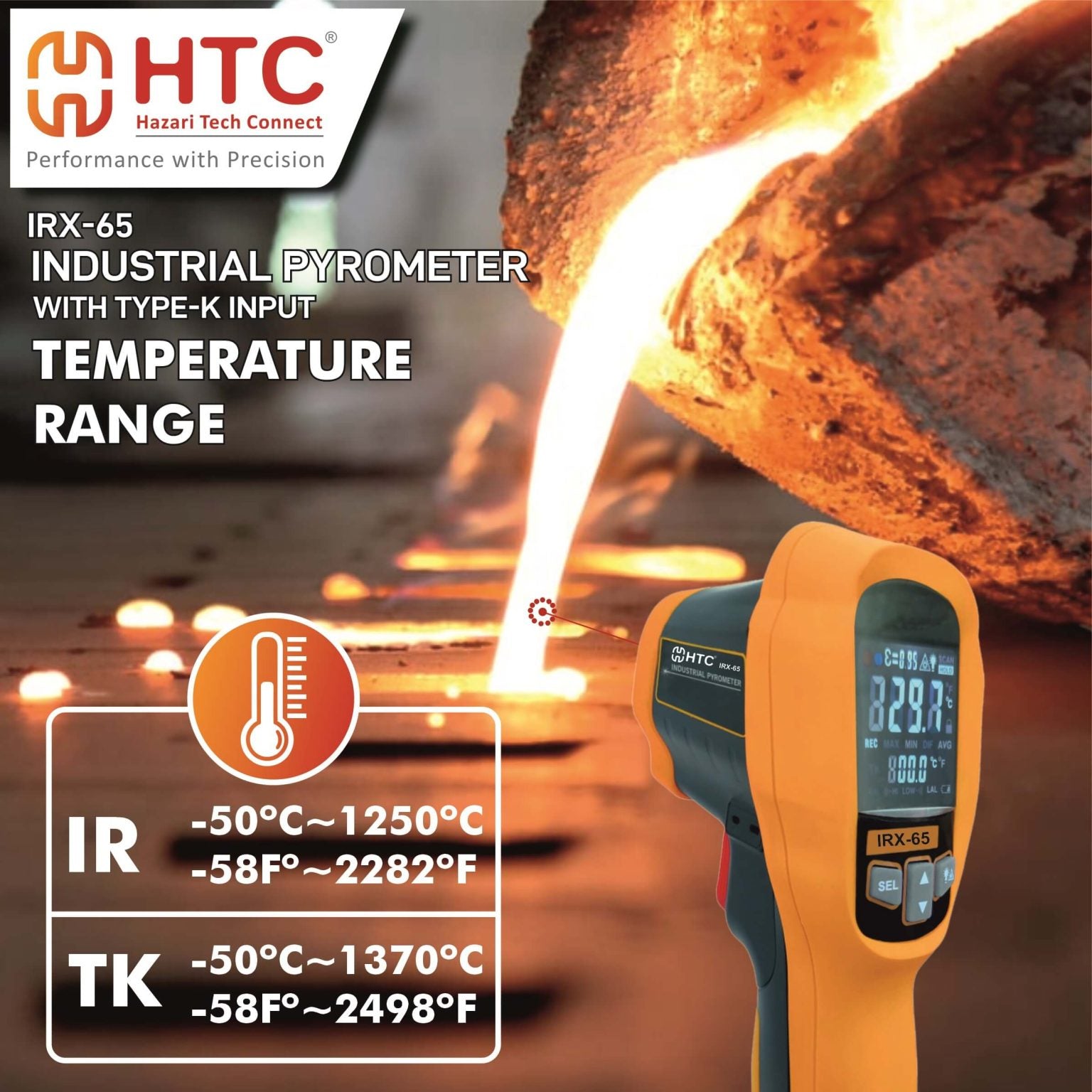

HTC IRX-65 Infrared Thermometer

HTC IRX-65 Infrared Thermometer

The HTC IRX-65 Infrared Thermometer is a professional dual-mode temperature measuring instrument that combines non-contact infrared (IR) measurement with Type-K thermocouple contact measurement. Designed for industrial, electrical, HVAC, automotive, and maintenance professionals, it offers precise temperature measurement over a wide range while ensuring safety and efficiency. Its adjustable emissivity, dual laser targeting, and 30:1 optical resolution make it ideal for measuring high-temperature surfaces from a safe distance.

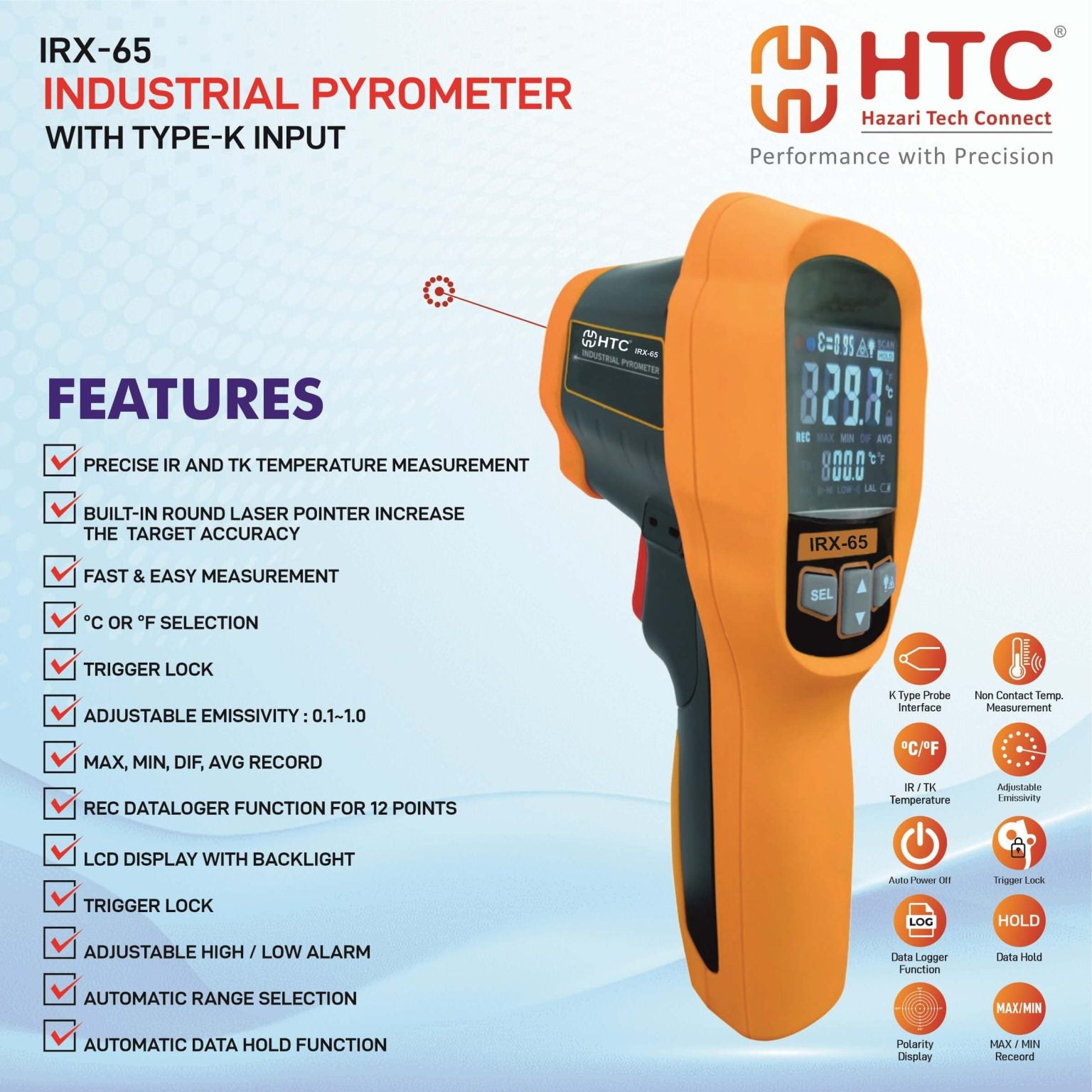

Key Features

• Dual temperature measurement:
• Infrared (Non-Contact): -50°C to 1250°C
• Type-K Contact Probe: -50°C to 1370°C
• High 30:1 Distance-to-Spot (D:S) ratio for accurate long-distance measurements.
• Adjustable emissivity (0.10 to 1.00) for different surface materials.
• Built-in dual round laser pointer for precise targeting.

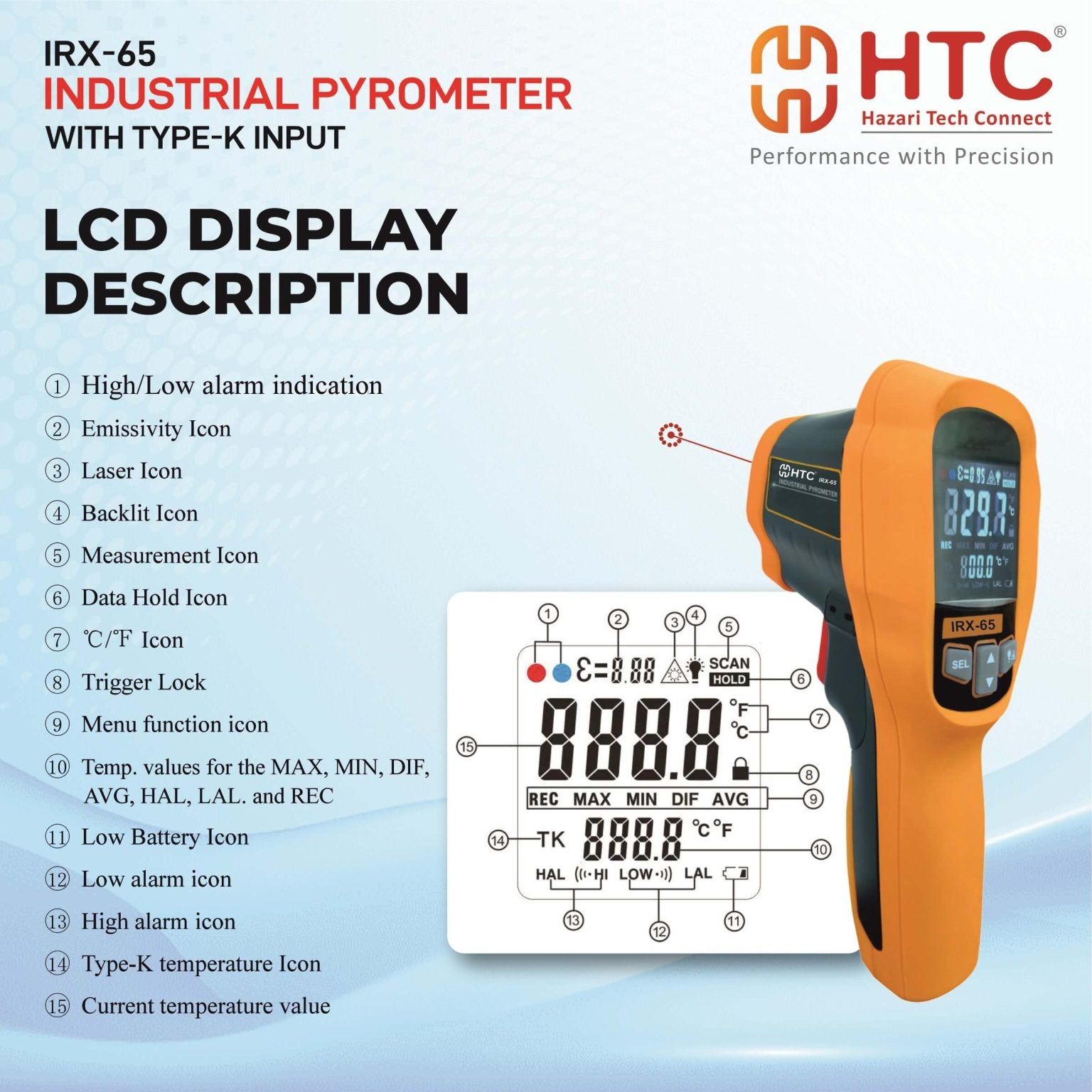

• Bright LCD display with backlight for clear visibility.
• MAX, MIN, DIF (Difference), and AVG recording functions.
• 12-point data logger for storing measurement readings.

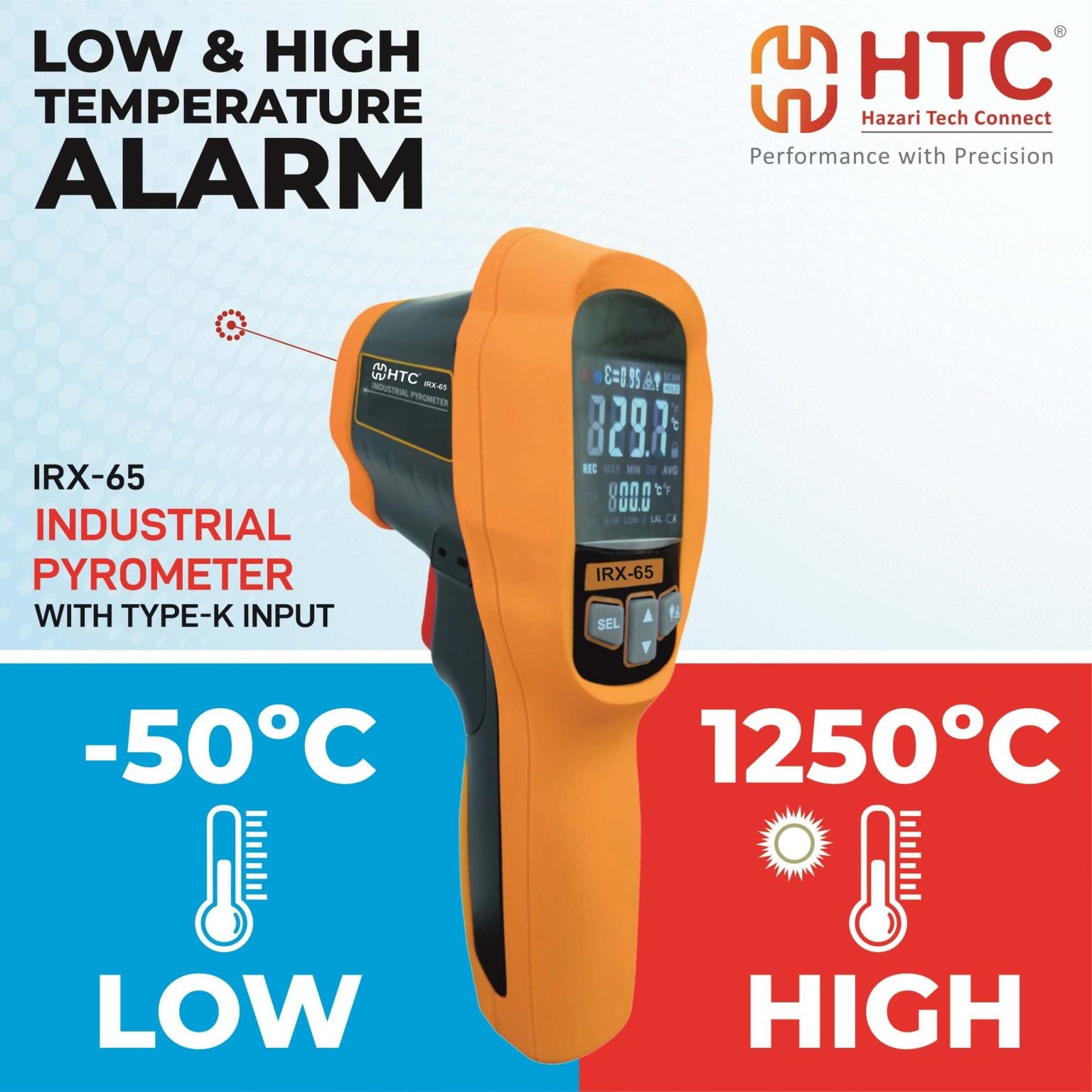

• Adjustable High and Low temperature alarms.
• Trigger lock for continuous monitoring.
• Automatic data hold function.
• Fast response time of less than 250 milliseconds.
• Automatic power-off to conserve battery life.
• Selectable °C / °F temperature units.
• Low battery indication.

Technical Specifications

Parameter  Specification

Infrared Temperature Range : -50°C to 1250°C (-58°F to 2282°F)

Contact Temperature Range : -50°C to 1370°C (-58°F to 2498°F)

Accuracy : ±1.5% of reading (IR); Type-K: ±1.5% ±1°C

Resolution : 0.1°C / 0.1°F (up to 1000°C)

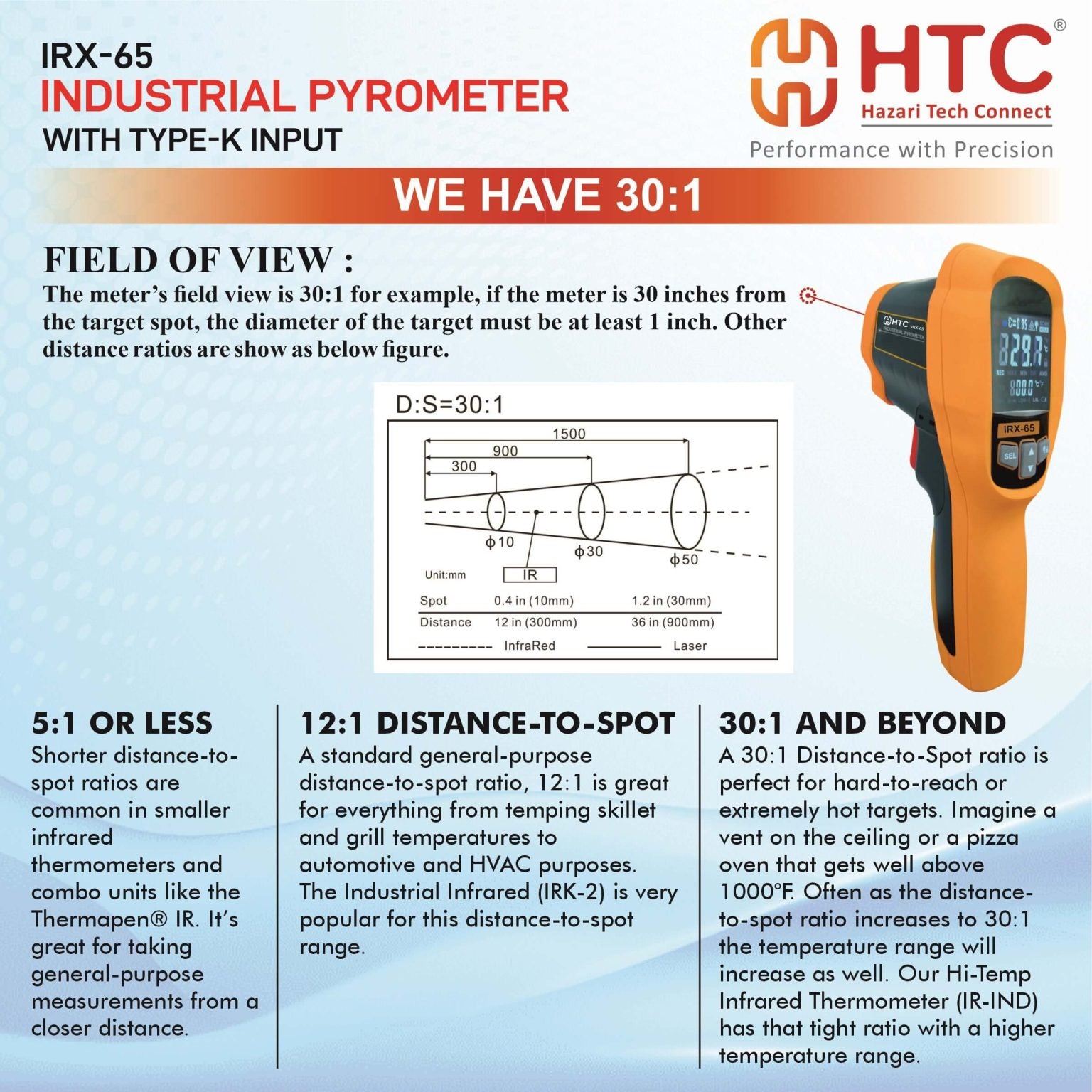

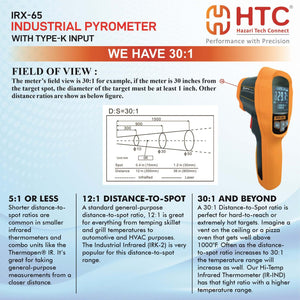

Distance-to-Spot Ratio : 30:1

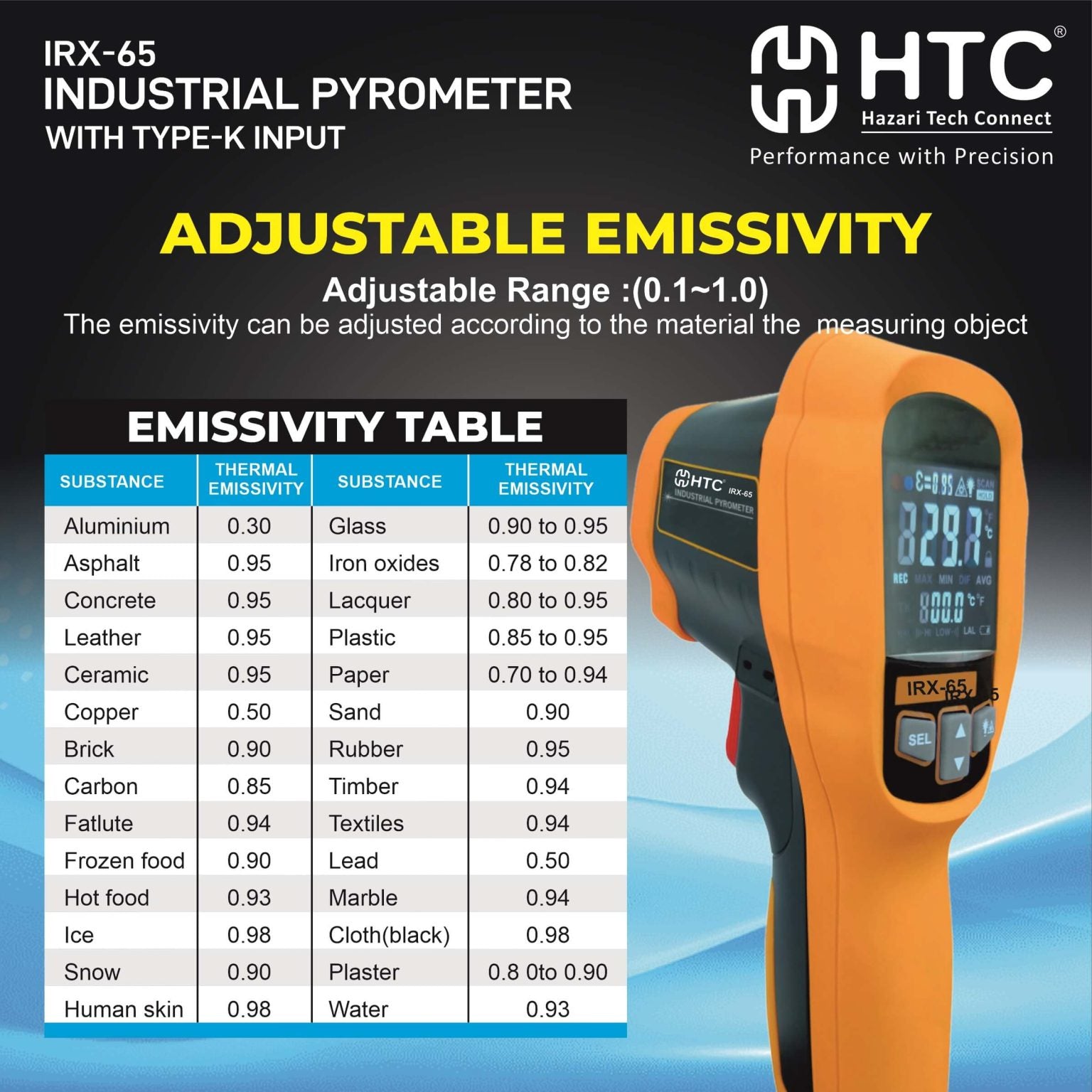

Emissivity : Adjustable (0.10–1.00)

Response Time : <250 ms

Spectral Response : 8–14 μm

Laser : Dual Class II Laser (<1 mW)

Display : LCD with Backlight

Power Supply : 1 × 9V (6F22) Battery

Dimensions : 192 × 83 × 95 mm

Weight : Approximately 275 g

Auto Power Off : Approximately 35 seconds

Applications

• Industrial equipment inspection
• Electrical panel and transformer diagnostics
• HVAC installation and maintenance
• Automotive engine and exhaust temperature testing
• Furnace, boiler, and kiln monitoring
• Food processing and packaging industries
• Plastic, glass, and metal manufacturing
• Laboratory testing and quality control
• Preventive maintenance and troubleshooting

Benefits

• Combines infrared and contact temperature measurement in one device.
• Safely measures extremely hot, hazardous, or moving objects without physical contact.
• Long-distance 30:1 optics deliver precise readings on smaller targets.
• Adjustable emissivity improves measurement accuracy across various materials.
• Advanced data logging and statistical functions simplify inspection and analysis.
• Rugged, ergonomic design suitable for demanding industrial environments.

Package Contents

• HTC IRX-65 Infrared Thermometer
• Type-K Temperature Probe
• Soft Carrying Case
• Carry Hook
• 9V Battery
• User Manual

The HTC IRX-65 Infrared Thermometer is an advanced industrial temperature measurement solution, offering both non-contact infrared and contact probe capabilities. Its wide temperature range, high optical resolution, data logging features, and professional-grade accuracy make it an ideal choice for maintenance engineers, electricians, HVAC technicians, and quality control professionals.
