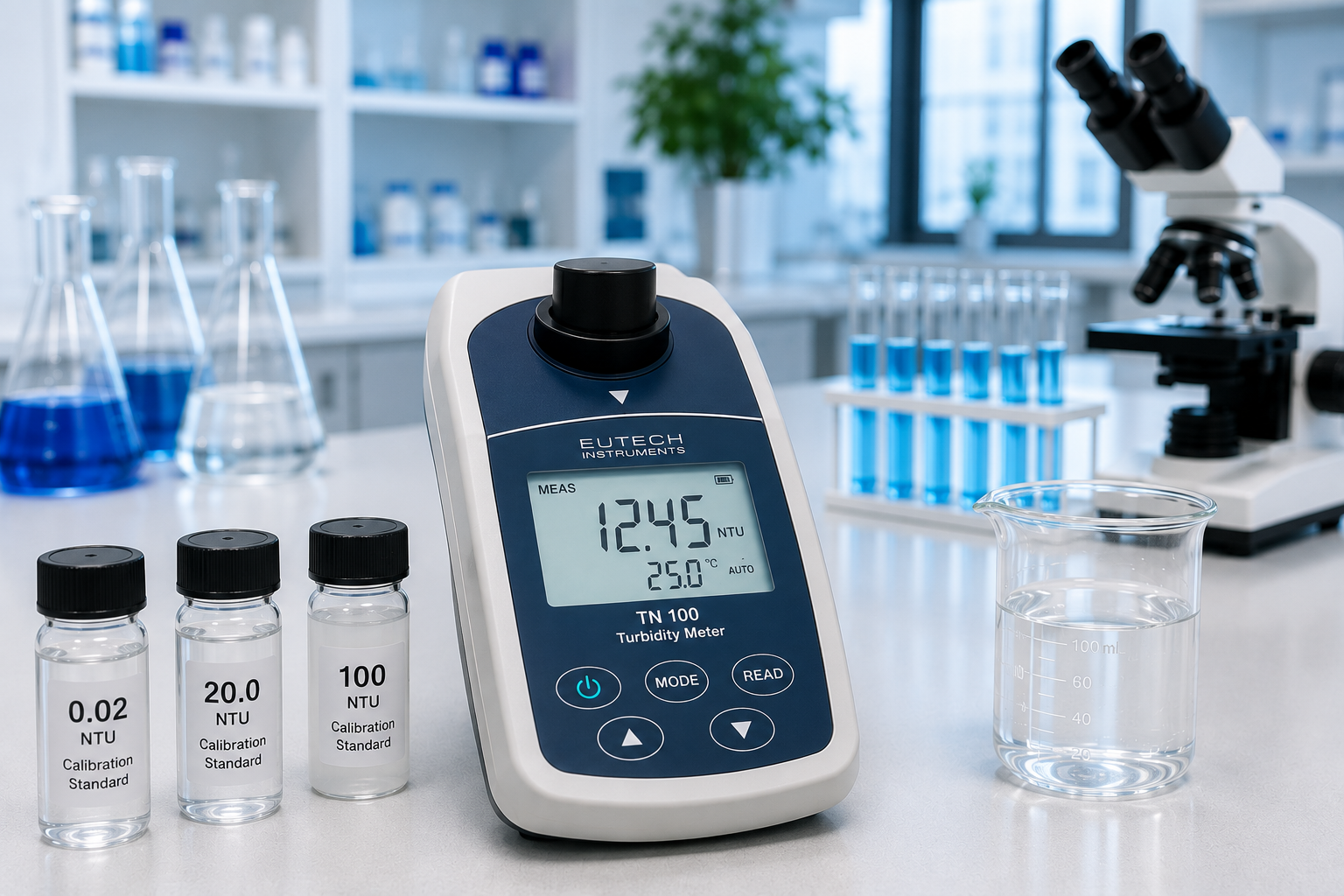

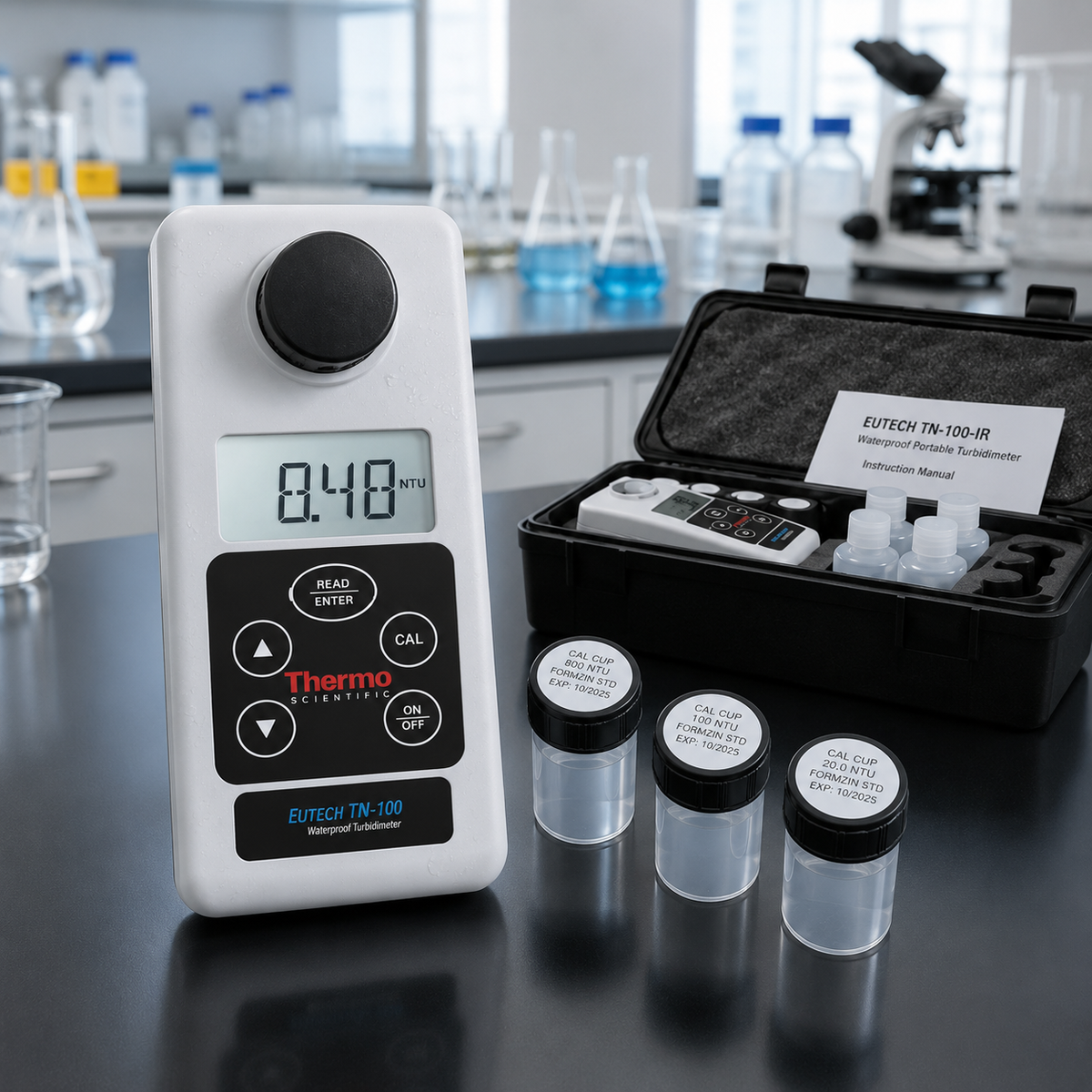

Eutech TN 100 Turbidity Meter

Eutech TN 100 Turbidity Meter

The Eutech TN 100 Turbidity Meter is a compact, high-precision portable instrument designed for accurate turbidity measurement in drinking water, wastewater, environmental monitoring, and laboratory applications. Utilizing the 90° nephelometric measurement method in compliance with USEPA 180.1, the TN 100 delivers fast, reliable, and repeatable results. Its rugged portable design, waterproof keypad, data storage capability, and user-friendly interface make it an excellent choice for field technicians, laboratories, water treatment plants, and quality control professionals.

Key Features

• High-Precision Turbidity Measurement: Measures turbidity from 0 to 1000 NTU, providing accurate results for both low and high turbidity samples.
• USEPA 180.1 Compliant: Uses the 90° nephelometric optical system with an infrared light source for dependable and repeatable measurements.
• Wide Measurement Range: Suitable for drinking water, wastewater, environmental, and industrial water quality testing.
• Automatic Range Selection: Automatically selects the most appropriate measurement range for improved accuracy.
• Large Backlit LCD Display: Displays turbidity readings clearly, even in low-light environments.
• Up to 5-Point Calibration: Easy calibration using standard turbidity solutions for enhanced measurement accuracy.
• Data Storage: Stores up to 100 measurement records for convenient data logging and review.
• Auto Shut-Off Function: Conserves battery life by automatically powering off after a period of inactivity.
• Low Battery Indicator: Alerts users when batteries require replacement.
• Portable & Lightweight: Compact handheld design allows easy transportation for field measurements.
• Simple User Interface: Intuitive keypad and menu navigation enable quick setup and operation.
• Durable Construction: Designed to withstand demanding laboratory and field environments.

Technical Specifications

Specification  Details

Measurement Range : 0.00 to 1000 NTU

Resolution : 0.01 NTU (0–9.99 NTU), 0.1 NTU (10–99.9 NTU), 1 NTU (100–1000 NTU)

Accuracy : ±2% of reading or ±0.02 NTU (whichever is greater)

Light Source : Infrared LED

Measurement Method : 90° Nephelometric

Compliance : USEPA 180.1

Calibration : Up to 5 Points

Data Memory : 100 Readings

Display : Large Backlit LCD

Power Supply : 4 × AA Batteries

Battery Life : Approximately 1,200 Measurements

Operating Temperature : 0 to 50°C

Dimensions : Approx. 155 × 75 × 46 mm

Weight : Approx. 300 g (including batteries)

Applications

The Eutech TN 100 Turbidity Meter is ideal for a wide range of water quality monitoring applications, including:

• Drinking Water Analysis
• Water & Wastewater Treatment Plants
• Environmental Monitoring
• Surface Water & Groundwater Testing
• Industrial Water Quality Control
• Pharmaceutical Water Testing
• Food & Beverage Industry
• Educational & Research Laboratories
• Municipal Water Supply Monitoring
• Quality Assurance & Quality Control (QA/QC)

Why Choose the Eutech TN 100?

The Eutech TN 100 Turbidity Meter combines precision, portability, and ease of use in a reliable handheld instrument. With its USEPA-compliant nephelometric technology, wide measurement range, automatic calibration, 100-reading memory, and long battery life, it is an excellent choice for professionals who require fast and dependable turbidity measurements in both laboratory and field environments. Whether monitoring drinking water quality or performing environmental assessments, the TN 100 delivers consistent and accurate results every time.
