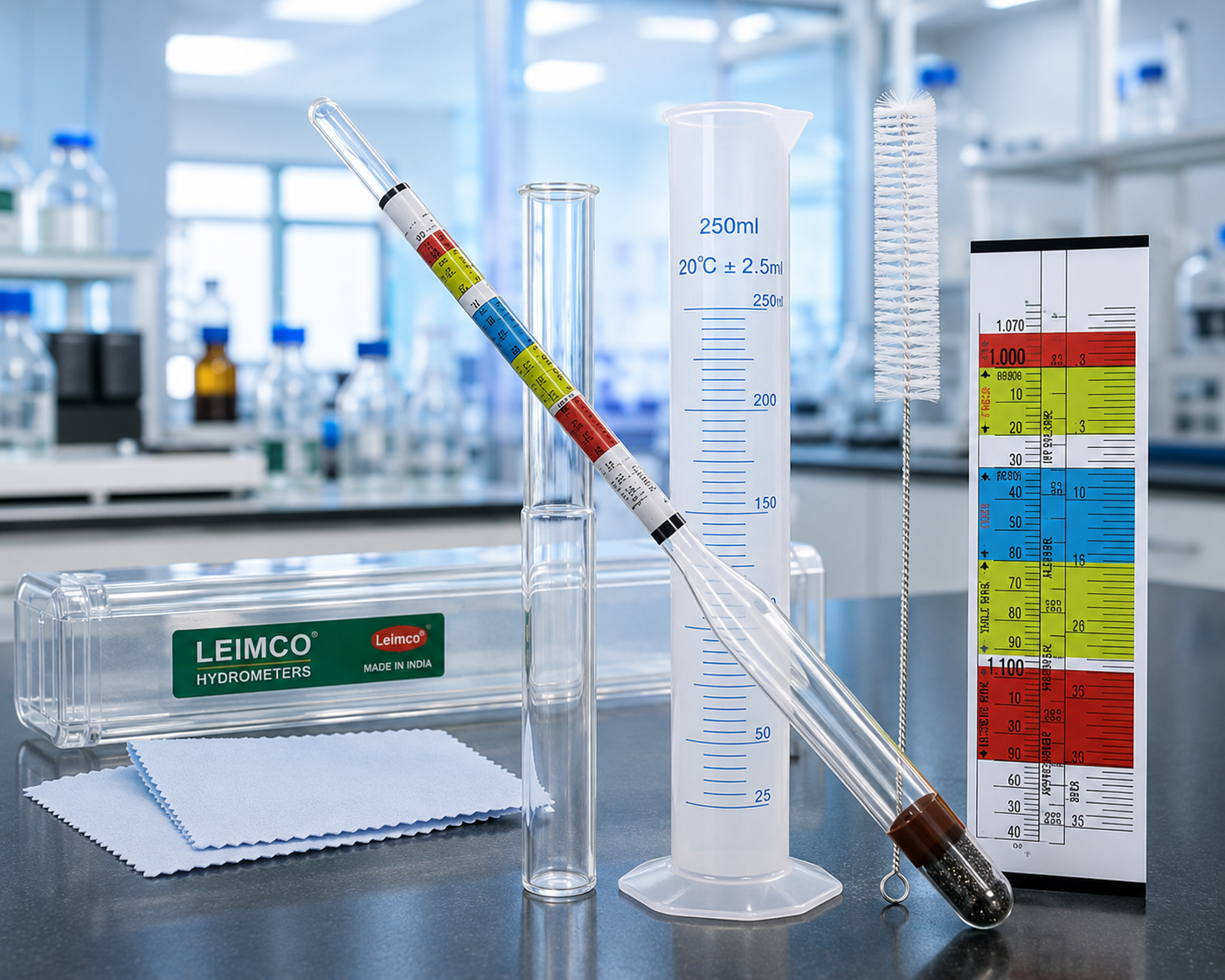

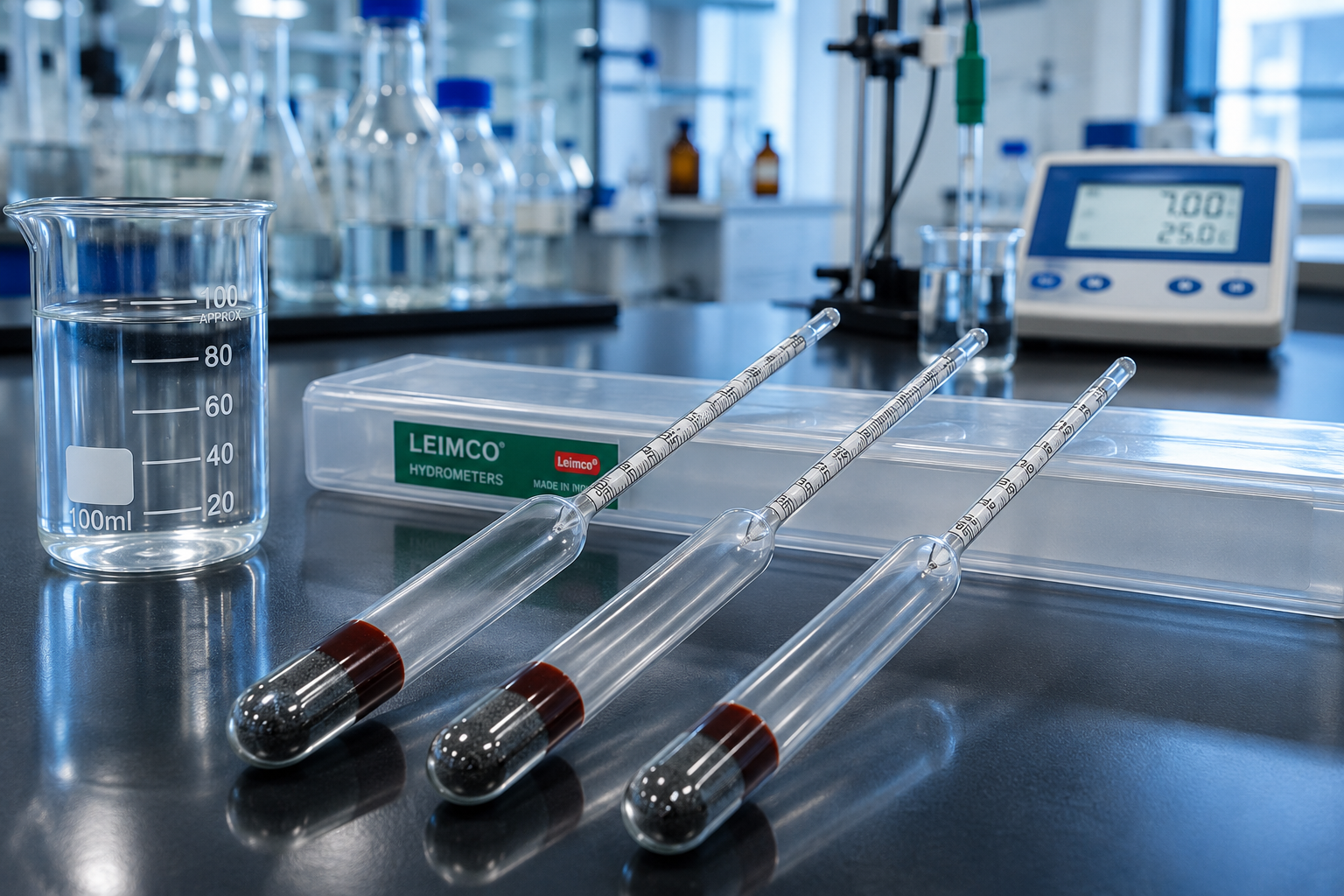

LEIMCO Classic Series Glass Hydrometer | Specific Gravity Hydrometer | 0.600–2.000 Range | 0.001 Graduation | 20°C Calibration | Industrial & Chemical Laboratory Use

Product Overview

LEIMCO Classic Series Plain Form Glass Hydrometers are precision glass hydrometers designed for specific gravity/density measurement of liquids in laboratories, chemical processing, industrial applications, quality control, and general-purpose testing.

These hydrometers feature a plain-form glass construction with clearly graduated scales and are calibrated at the standard reference temperature of 20°C. The series covers specific gravity ranges from 0.600 to 2.000, with a fine 0.001 graduation interval, allowing users to select the appropriate hydrometer according to the expected density of the sample.

Key Features

• Precision plain-form glass hydrometer
• Specific gravity measurement
• 0.001 graduation interval throughout the series
• Standard calibration temperature: 20°C
• Wide range from 0.600 to 2.000
• Suitable for heavy chemicals and industrial applications
• General-purpose laboratory use
• Easy-to-read graduated scale
• No thermometer or additional accessories required for basic measurement
• Suitable for quality control, process monitoring and laboratory testing
• Available in multiple range options for improved measurement resolution

Technical Specifications

Applications

LEIMCO Classic Series Hydrometers are suitable for:

• Chemical laboratories
• Heavy chemical industries
• Chemical concentration checking
• Industrial liquid testing
• Quality-control laboratories
• Manufacturing and process industries
• Liquid density/specific gravity determination
• Research and development laboratories
• Educational and general-purpose laboratories
• Incoming raw-material inspection
• Process and batch monitoring

How to Use

1. Select the hydrometer whose range covers the expected specific gravity of the sample.
2. Fill a suitable hydrometer cylinder with the liquid sample.
3. Carefully lower the hydrometer into the liquid.
4. Allow it to float freely without touching the sides or bottom of the cylinder.
5. Allow the hydrometer to stabilize.
6. Read the specific gravity at the appropriate liquid meniscus according to the applicable reading procedure.
7. The hydrometer is calibrated for 20°C; temperature correction should be considered when the sample temperature differs significantly from the calibration temperature.

Important Selection Guide

For liquids below water density:
Choose Cat. 17021–17024, covering 0.600–1.000.

For liquids around water density:
Choose Cat. 17025, covering 1.000–1.100.

For higher-density liquids:
Choose Cat. 17026–17034, covering 1.100–2.000.

For best readability and measurement resolution, select the hydrometer with the narrowest range that contains the expected specific gravity.

Product Details

Package / Ordering Information

Select the required Cat. No. according to the desired specific gravity range. Each catalog number represents a different measuring range.

Available Cat. Nos.: 17021, 17022, 17023, 17024, 17025, 17026, 17027, 17028, 17029, 17030, 17031, 17032, 17033 and 17034.
