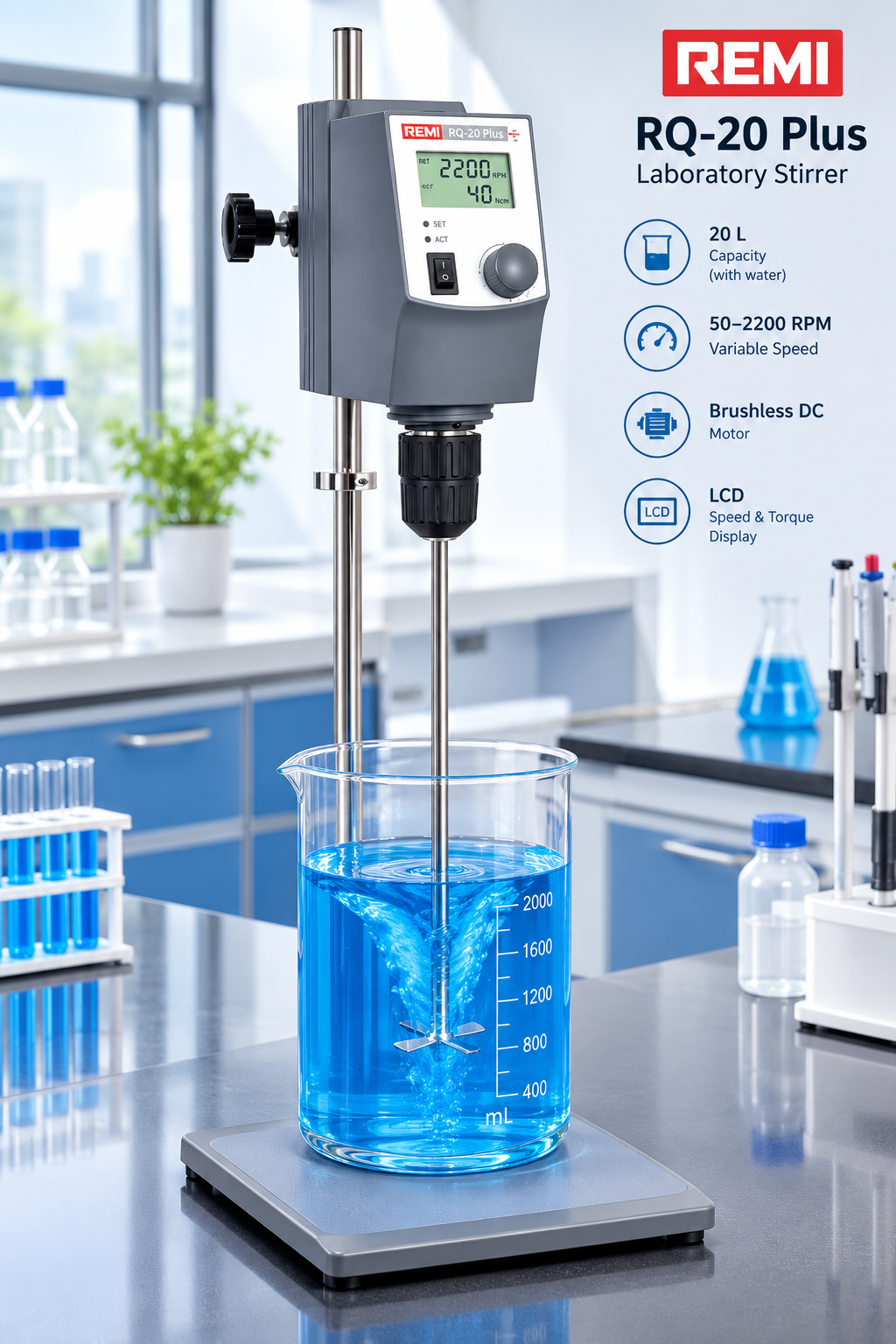

REMI RQ-20 Plus Laboratory Stirrer | 20 L Capacity | 50–2200 RPM | Brushless DC Motor | LCD Speed & Torque Display
Description
REMI RQ-20 Plus is a high-performance laboratory overhead stirrer with 20 L maximum water stirring capacity, 50–2200 RPM variable speed, high torque at low speeds, and LCD display for monitoring set/actual speed and torque. Its brushless DC motor and automatic overload protection make it suitable for continuous mixing applications in research, pharmaceutical, chemical, food, cosmetic and industrial laboratories.
Key Features
- Maximum stirring capacity: 20 L with water
- Variable speed range: 50–2200 RPM
- Brushless DC motor for maintenance-free operation
- Maximum torque: 40 Ncm
- LCD display for set and actual speed
- LCD display for torque
- Constant speed even with changes in load/voltage
- High torque performance at low speeds
- Automatic motor overload protection
- LED overload indication with auto-stop
- 13 mm chuck capacity
- Stainless-steel stirring shaft and blade propeller
- Special base design for stable, topple-resistant operation
- Shaft stopper for protection of vessel and shaft
- Compact laboratory design
- Suitable for continuous-duty mixing applications
Technical Specifications
| Specification | Details |
|---|---|
| Brand | REMI |
| Model | RQ-20 Plus |
| Product Type | Laboratory Overhead Stirrer |
| Stirring Capacity | Up to 20 L (water) |
| Speed Range | 50–2200 RPM |
| Motor Type | Brushless DC (BLDC) |
| Motor Input Rating | 60 W |
| Motor Output Rating | 50 W |
| Maximum Torque | 40 Ncm |
| Speed Display | LCD |
| Torque Display | LCD |
| Chuck Capacity | 13 mm |
| Stirring Shaft | 8 × 220 mm* |
| Impeller | 4 Cross Blade / 50 mm |
| Total Power | 70 W |
| Protection Class | IP42 |
| Stand Length | 750 mm |
| Dimensions | Approx. 83 × 186 × 220 mm |
| Weight | Approx. 2.4 kg |
| Electrical Supply | 220–240 V AC |
| Frequency | 50 Hz |
| Phase | Single Phase |
| Country of Origin | India |
Applications
The REMI RQ-20 Plus can be used for:
- Pharmaceutical formulation
- Chemical solution preparation
- Research & development laboratories
- Reagent preparation
- Mixing suspensions and emulsions
- Cosmetic formulations
- Shampoo and lotion formulation
- Syrup formulation
- Food and beverage processing/testing
- Paints, coatings and adhesives
- Industrial liquid blending
- Quality-control laboratories
What's Included
Typical RQ-20 Plus configuration includes:
- REMI RQ-20 Plus stirrer unit
- Stirring motor/head
- Chuck
- Stirring shaft
- 4-cross-blade impeller
- Laboratory stand/U-type support
- Required mounting/accessories
Why Choose REMI RQ-20 Plus?
High-Torque Mixing: 40 Ncm maximum torque provides effective stirring, including at lower speeds.
Wide Speed Control: 50–2200 RPM allows the instrument to handle a broad range of laboratory mixing requirements.
Maintenance-Free Motor: The BLDC motor eliminates conventional brush maintenance and is designed for reliable continuous operation.
Digital Monitoring: LCD monitoring of speed and torque makes operating parameters easy to observe.
Safety Protection: Automatic overload protection helps protect the motor during continuous or excessive loading.
