Short Description

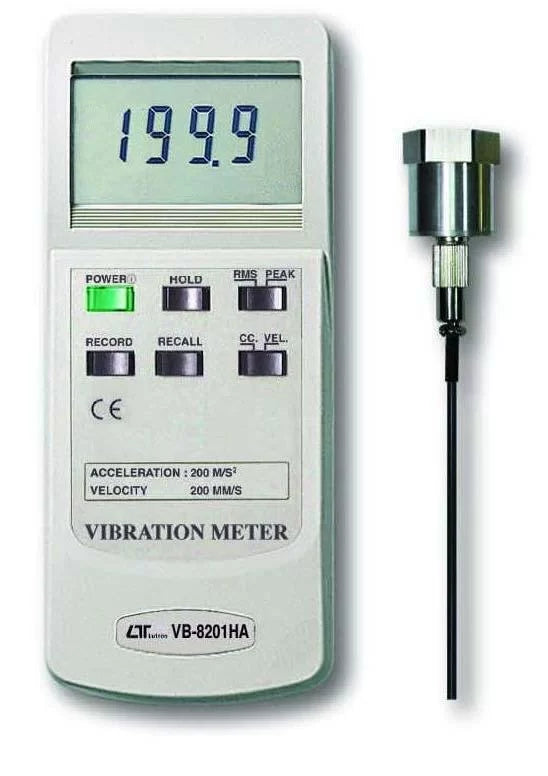

The Lutron VB-8201HA is a professional digital vibration meter designed for preventive maintenance and condition monitoring of industrial machinery. It measures both vibration velocity (RMS) and acceleration (Peak) using a separate vibration sensor with a magnetic base. Built with a high-performance microprocessor, wide frequency response, and ISO 2954-compliant sensitivity, it is ideal for diagnosing imbalance, misalignment, looseness, and bearing wear in motors, pumps, compressors, fans, and other rotating equipment.

Key Features

• Professional Digital Vibration Meter
• Measures Vibration Velocity (RMS)
• Measures Vibration Acceleration (Peak)
• Wide Frequency Response: 10 Hz to 1 kHz
• Separate Remote Vibration Probe
• Magnetic Probe Base for Easy Mounting
• ISO 2954 Compliant Sensitivity
• Large LCD Display
• Maximum & Minimum Memory Recall
• Data Hold Function
• Automatic Power Off
• Low Battery Indicator
• Microprocessor-Based Circuit
• Compact & Rugged ABS Housing
• Fast Measurement Response
• Suitable for Predictive Maintenance

Applications

Ideal for:

• Industrial Machinery Maintenance
• Electric Motors
• Pumps
• Compressors
• Fans & Blowers
• Gearboxes
• Bearings
• HVAC Equipment
• Production Lines
• Power Plants
• Manufacturing Industries
• Quality Control
• Preventive Maintenance
• Mechanical Engineering
• Research Laboratories

Technical Specifications

Vibration Velocity

Vibration Acceleration

Frequency Response

Accuracy

• ±(5% of Reading + 2 Digits) at 80 Hz or 160 Hz, 23 ± 5°C.

Calibration Point

• Velocity: 50 mm/s @ 160 Hz
• Acceleration: 50 m/s² @ 160 Hz

Display

• Super Large LCD Display
• Display Size: 61 × 34 mm
• Digit Height: 15 mm
• Easy-to-read Digital Readout

Measurement Functions

• Velocity Measurement (RMS)
• Acceleration Measurement (Peak)
• Data Hold
• Maximum Reading Memory
• Minimum Reading Memory

Sensor

• Separate Piezoelectric Vibration Probe
• Remote Sensor with Cable
• Magnetic Mount Included
• Easy Attachment to Metal Surfaces

Sampling Time

• Approximately 1 second

Operating Conditions

Operating Temperature

• 0°C to 50°C

Operating Humidity

• Less than 80% RH

Power Supply

• 1 × 9V Battery (006P / PP3 / MN1604)

Power Consumption

• Approximately 6 mA DC

Dimensions

Main Unit

• 185 × 78 × 38 mm

Probe

• 16 mm Diameter × 29 mm

Weight

• Main Unit: 274 g
• Probe with Magnetic Base: 38 g

Construction

• Heavy-Duty ABS Plastic Housing
• Industrial Grade Electronics
• Precision Piezoelectric Sensor
• Magnetic Probe Base

Standard Package Includes

• Lutron VB-8201HA Vibration Meter
• Vibration Sensor (VB-81A)
• Sensor Cable
• Magnetic Base
• Hard Carrying Case
• User Instruction Manual

Advantages

• Detects Machine Imbalance
• Identifies Bearing Wear
• Helps Prevent Unexpected Equipment Failure
• Fast & Accurate Measurements
• Portable & Lightweight
• Large Easy-to-Read Display
• Rugged Industrial Construction
• Easy Magnetic Probe Mounting
• Low Power Consumption
• Reliable for Continuous Industrial Maintenance

Industries Served

• Manufacturing
• Industrial Maintenance
• Mechanical Engineering
• Automotive
• Power Generation
• HVAC
• Mining
• Cement Plants
• Steel Industry
• Oil & Gas
• Research Laboratories
• Quality Assurance
