Short Description

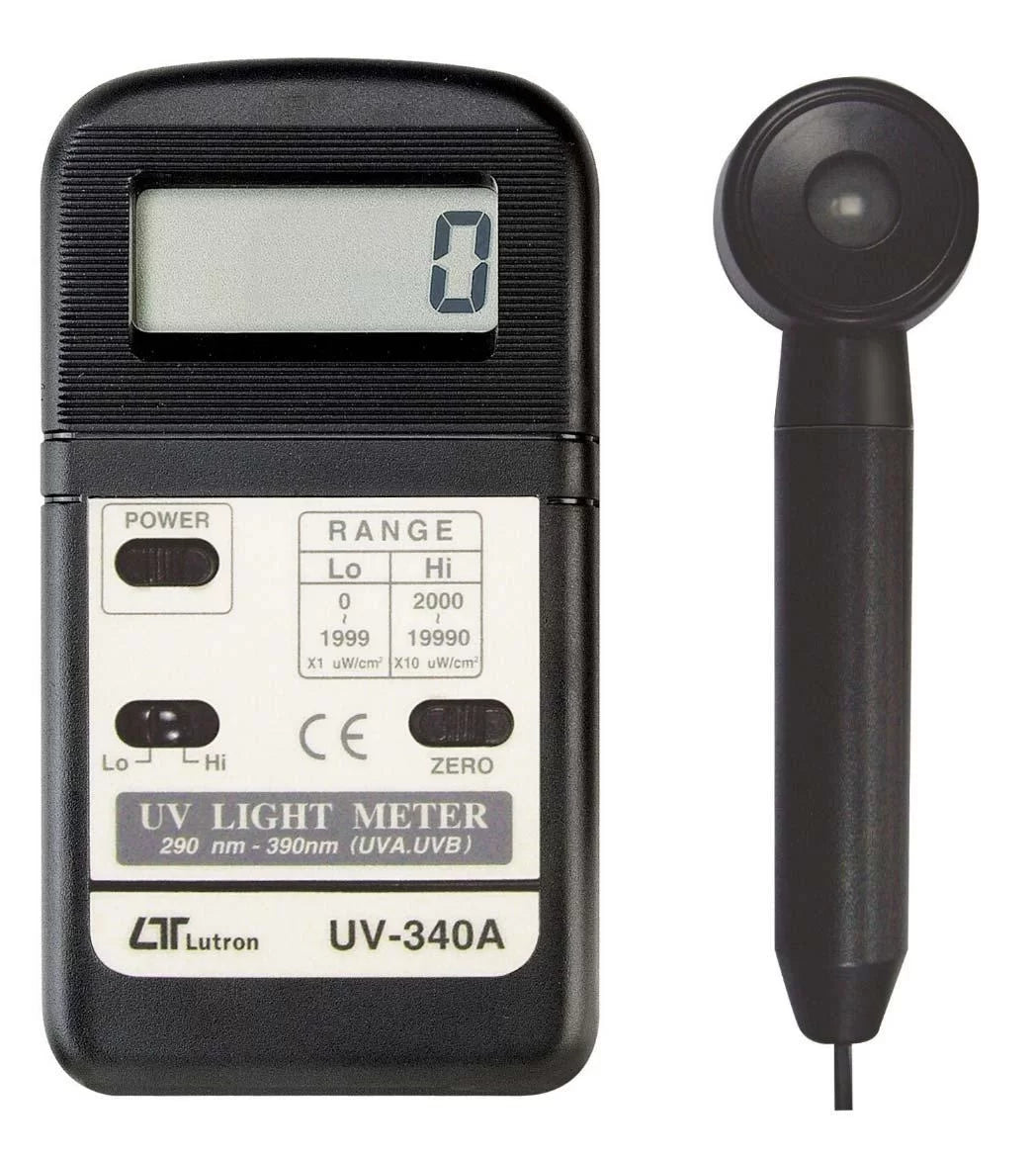

The Lutron UV-340A is a professional digital UV light meter designed for accurate measurement of UVA and UVB ultraviolet radiation. Equipped with a precision UV sensor featuring a cosine correction filter, the instrument measures UV irradiance over the 290 to 390 nm spectral range with high accuracy. Its separate probe design, dual measurement ranges, and microprocessor-based circuitry make it ideal for UV sterilization monitoring, laboratory research, photochemical processes, welding safety, printing, and industrial quality control.

Key Features

• Professional Digital UV Light Meter
• Measures UVA & UVB Radiation
• UV Spectral Response: 290 to 390 nm
• Dual Measurement Ranges
• Separate UV Sensor Probe
• Cosine Correction Filter for Accurate Readings
• High Accuracy Microprocessor Circuit
• Large LCD Display
• Zero Adjustment Function
• Fast Measurement Response
• Compact & Lightweight Design
• Durable ABS Housing
• Low Power Consumption
• Portable Battery Operation

Applications

Suitable for:

• UV Sterilization Systems
• UV Curing Equipment
• Printing Industry
• Graphic Arts
• Photochemical Processing
• UV EPROM Erasure
• Laboratory Research
• DNA Research
• Microbiology Laboratories
• Virology Laboratories
• Weathering Studies
• Welding UV Hazard Monitoring
• Industrial Quality Control
• Environmental Monitoring

Technical Specifications

UV Irradiance Measurement

1000 µW/cm² = 1 mW/cm²

Spectral Response

Accuracy

Calibration is performed under standard UVA light conditions.

Sensor

• Precision UV Photo Sensor
• Cosine Correction Filter
• Separate Remote Probe
• Optimized for Accurate UV Irradiance Measurement

Display

• LCD Display
• Display Size: 18 × 45 mm
• Maximum Display: 1999 Counts
• Over-Range Indication

Functions

• UVA Measurement
• UVB Measurement
• High/Low Range Selection
• Zero Adjustment
• Over-Range Indication
• Fast Digital Measurement

Sampling Time

• Approximately 1 Second

Operating Conditions

Operating Temperature

• 0°C to 50°C

Operating Humidity

• Less than 85% RH

Power Supply

• 1 × 9V Battery (006P / PP3 / MN1604)

Power Consumption

• Approximately 6 mA DC

Dimensions

Main Unit

• 131 × 70 × 25 mm

Sensor Head

• 45 mm Diameter × 32 mm

Probe Handle

• 125 × 24 mm Diameter

Weight

• Approximately 251 g (including battery)

Construction

• High-Impact ABS Plastic Housing
• Precision UV Photo Sensor
• Microprocessor-Controlled Electronics
• Cosine Correction Optical Filter

Standard Package Includes

• Lutron UV-340A UV Light Meter
• UV Sensor Probe
• User Instruction Manual

Optional Accessories

• Soft Carrying Case (CA-52A)
• Soft Carrying Case (CA-03)

Advantages

• Accurate UVA & UVB Measurement
• Wide UV Detection Range
• Precision Cosine-Corrected Sensor
• Separate Probe for Flexible Measurements
• Fast Response Time
• Compact & Lightweight Design
• Rugged Industrial Construction
• Simple One-Touch Operation
• Reliable Laboratory & Industrial Performance
• Low Power Consumption

Industries Served

• Pharmaceutical Industry
• Research Laboratories
• Universities
• Biotechnology
• Medical Laboratories
• Printing Industry
• Electronics Manufacturing
• UV Sterilization Facilities
• Industrial Maintenance
• Environmental Monitoring
• Quality Assurance
