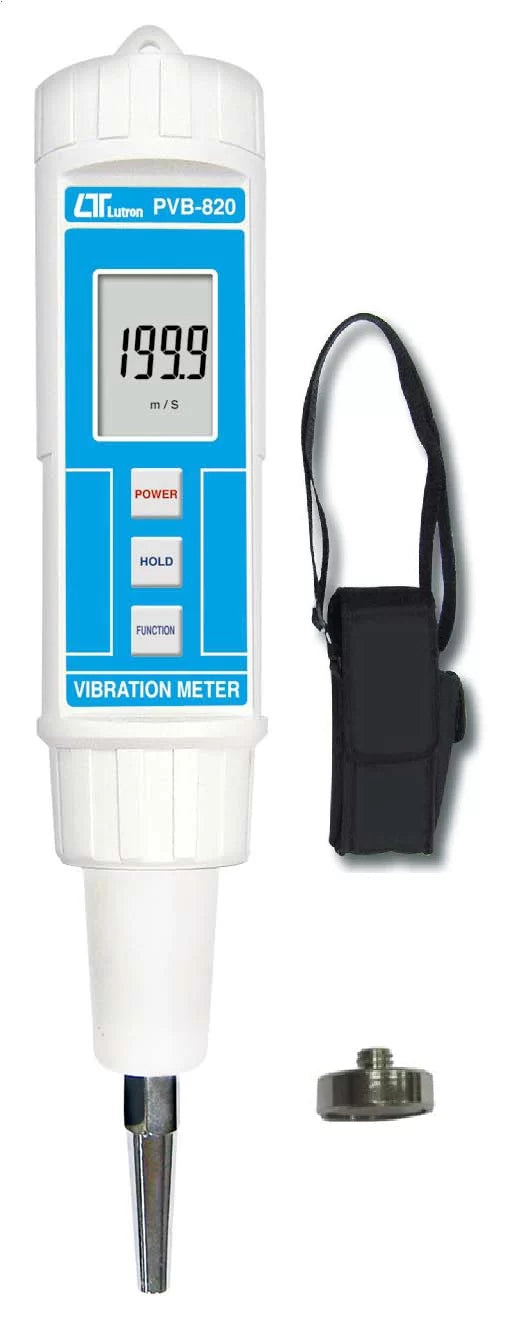

Lutron PVB-820 Pen Type Digital Vibration Meter | Acceleration & Velocity Meter | IP65 Waterproof | ISO 2954 Compliant
Description
Short Description
The Lutron PVB-820 is a compact pen-type digital vibration meter designed for fast and accurate monitoring of industrial machinery. Featuring a built-in vibration sensor, it measures vibration acceleration (RMS) and vibration velocity (RMS) with excellent accuracy. Its IP65-rated rugged housing, magnetic base, and compliance with ISO 2954make it ideal for preventive maintenance, machinery diagnostics, and field inspections in demanding industrial environments.
Key Features
- Professional Pen-Type Digital Vibration Meter
- Built-in Vibration Sensor
- Measures Vibration Velocity (RMS)
- Measures Vibration Acceleration (RMS)
- Wide Frequency Response (10 Hz to 1 kHz)
- Metric & Imperial Units
- IP65 Dust & Water Resistant Housing
- ISO 2954 Compliant Sensitivity
- Large LCD Display
- Zero Adjustment Function
- Low Battery Indicator
- Compact Lightweight Design
- Microprocessor-Controlled Circuit
- High Accuracy & Fast Response
- Magnetic Base Included
- Ideal for Field Maintenance
Applications
Suitable for:
- Electric Motors
- Pumps
- Compressors
- Fans & Blowers
- Gearboxes
- Bearings
- HVAC Systems
- Production Machinery
- Industrial Maintenance
- Predictive Maintenance
- Machine Condition Monitoring
- Quality Control
- Mechanical Workshops
- Manufacturing Plants
- Educational Laboratories
Technical Specifications
Vibration Velocity (RMS)
| Parameter | Specification |
|---|---|
| Range | 0.5 to 199.9 mm/s |
| Resolution | 0.1 mm/s |
| Accuracy | ±(5% of Reading + 2 Digits) |
Additional Velocity Units
- 0.05 to 19.99 cm/s
- 0.02 to 7.87 inch/s
Vibration Acceleration (RMS)
| Parameter | Specification |
|---|---|
| Range | 0.5 to 199.9 m/s² |
| Resolution | 0.1 m/s² |
Additional Acceleration Unit
- 0.05 to 20.39 g
- Resolution: 0.01 g
Frequency Response
| Parameter | Specification |
|---|---|
| Frequency Range | 10 Hz to 1 kHz |
| Standard | Sensitivity conforms to ISO 2954 |
Calibration
- Velocity: 50 mm/s @ 160 Hz
- Acceleration: 50 m/s² @ 160 Hz
Display
- LCD Display
- Display Size: 20 × 28 mm
- Clear Digital Readout
- Low Battery Indicator
Measurement Functions
- Vibration Velocity (RMS)
- Vibration Acceleration (RMS)
- Metric & Imperial Unit Selection
Sensor
- Built-in Piezoelectric Vibration Sensor
- Pen-Type Integrated Probe
- Magnetic Base Included for Stable Measurements
Sampling Time
- Approximately 1 second
Protection Rating
- IP65 Dustproof & Water Resistant
Operating Conditions
Operating Temperature
- 0°C to 50°C
Operating Humidity
- Less than 80% RH
Power Supply
- 4 × 1.5V AAA Batteries (UM-4)
Power Consumption
- Approximately 12 mA DC
Dimensions
- 175 × 40 × 32 mm
Sensor Head
- 9 mm Diameter × 30 mm
Weight
- Approximately 240 g
Construction
- Rugged ABS Plastic Housing
- Built-in Precision Piezoelectric Sensor
- IP65 Industrial Protection
- Compact Pen-Style Design
Standard Package Includes
- Lutron PVB-820 Digital Vibration Meter
- Magnetic Base
- Soft Carrying Case (CA-52A)
- User Instruction Manual
Advantages
- Compact Pen-Type Design
- No External Sensor Required
- IP65 Water & Dust Resistant
- Fast Machine Condition Assessment
- Ideal for Preventive Maintenance
- High Accuracy Measurements
- Lightweight & Portable
- Easy One-Hand Operation
- Rugged Industrial Construction
- Suitable for Daily Field Use
Industries Served
- Manufacturing
- Industrial Maintenance
- Power Plants
- Automotive
- HVAC
- Steel Plants
- Cement Industry
- Oil & Gas
- Mining
- Food Processing
- Mechanical Engineering
- Research Laboratories
