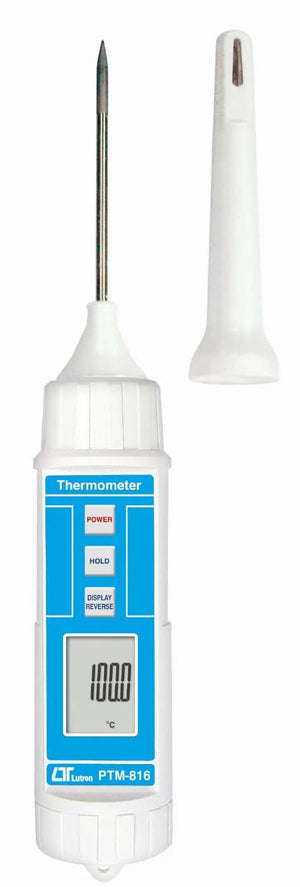

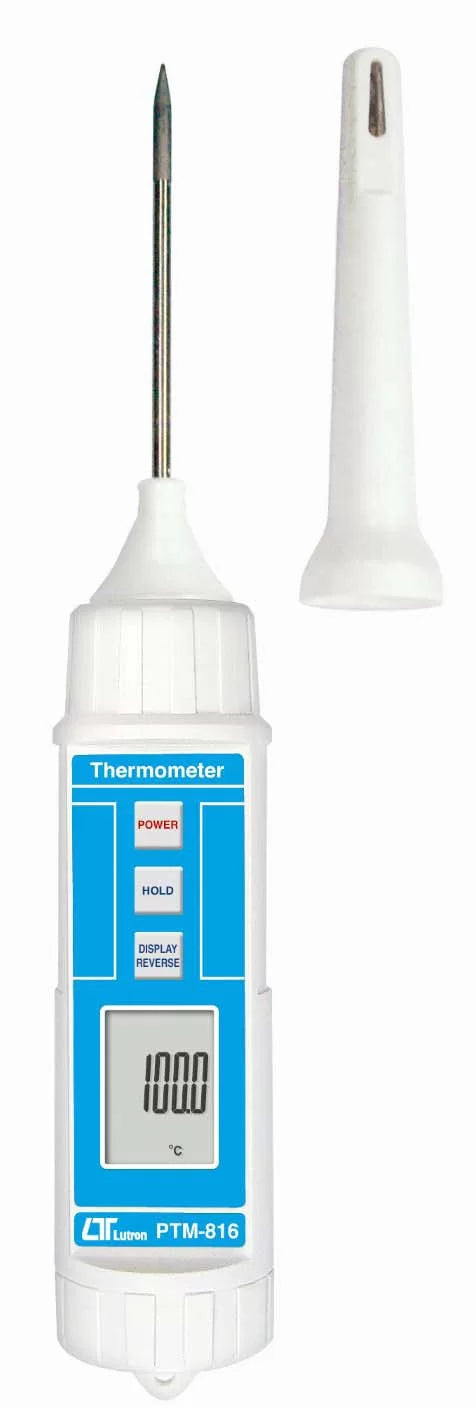

Lutron PTM-816 Digital Pen Type Thermometer | Type-K Thermocouple Thermometer | -40°C to 230°C | IP67 Waterproof
Description
Short Description
The Lutron PTM-816 is a professional pen-type digital thermometer with an integrated Type-K thermocouple probe, designed for fast and accurate temperature measurements. Featuring an IP67 waterproof construction, reversible LCD display, data hold function, and microprocessor-based circuitry, it is ideal for food processing, laboratories, HVAC servicing, industrial maintenance, and quality control applications. Its compact all-in-one design ensures convenient one-hand operation and reliable performance in demanding environments.
Key Features
- Professional All-in-One Pen Type Thermometer
- Integrated Type-K Thermocouple Probe
- Temperature Range: -40°C to 230°C (-40°F to 446°F)
- High Accuracy Digital Measurement
- IP67 Waterproof Protection
- Large LCD Display
- Reversible Display Function
- Data Hold Function
- °C / °F Selectable
- Fast Response Time
- Auto Power Off
- Low Battery Indicator
- Microprocessor-Based Circuit
- Lightweight & Portable Design
- Durable ABS Plastic Housing
Applications
Suitable for:
- Food Processing
- Commercial Kitchens
- HACCP Temperature Monitoring
- Refrigeration & Cold Storage
- HVAC Systems
- Laboratories
- Pharmaceutical Industry
- Chemical Industry
- Manufacturing Plants
- Industrial Maintenance
- Educational Institutions
- Quality Control
- General Temperature Inspection
Technical Specifications
Temperature Measurement
| Parameter | Specification |
|---|---|
| Measuring Range | -40.0°C to 230.0°C |
| Measuring Range (°F) | -40.0°F to 446.0°F |
| Resolution | 0.1°C / 0.1°F |
| Accuracy |
±(0.4% of Reading + 0.8°C) ±(0.4% of Reading + 1.5°F) |
Temperature Sensor
| Parameter | Specification |
|---|---|
| Sensor Type | Type-K Thermocouple |
| Probe Type | Integrated Stainless Steel Pen Probe |
| Probe Length | 70 mm |
| Probe Diameter | 3.2 mm |
Display
- Large LCD Display
- Display Size: 28 × 19 mm
- Reversible Display
- Data Hold Indicator
- Low Battery Indicator
Measurement Functions
- Temperature Measurement
- °C / °F Selection
- Data Hold
- Reverse Display
- Auto Power Off
Protection Rating
- IP67 Waterproof
Sampling Time
- Approximately 1 Second
Operating Conditions
Operating Temperature (Meter)
- 0°C to 50°C
Operating Humidity
- Less than 80% RH
Power Supply
- 4 × 1.5V AAA Batteries (UM-4)
Power Consumption
- Approximately 6.5 mA DC
Dimensions
Meter
- 150 × 40 × 40 mm
Probe Sensing Head
- 70 mm Length × 3.2 mm Diameter
Weight
- Approximately 142 g
Construction
- High-Impact ABS Plastic Housing
- Integrated Stainless Steel Type-K Probe
- IP67 Waterproof Design
- Microprocessor-Controlled Electronics
Standard Package Includes
- Lutron PTM-816 Digital Thermometer
- Probe Protection Cover
- User Instruction Manual
Optional Accessories
- Soft Carrying Case (Model CA-52A)
Advantages
- All-in-One Compact Design
- Waterproof IP67 Construction
- Fast & Accurate Temperature Measurement
- Easy One-Hand Operation
- Integrated Type-K Probe
- Durable Industrial Construction
- Ideal for Food Safety & Laboratory Applications
- Lightweight & Portable
- Simple °C / °F Switching
- Reliable Microprocessor-Based Performance
Industries Served
- Food & Beverage
- Pharmaceutical
- Chemical Processing
- HVAC & Refrigeration
- Manufacturing
- Research Laboratories
- Educational Institutions
- Quality Assurance
- Industrial Maintenance
- Agriculture
