Short Description

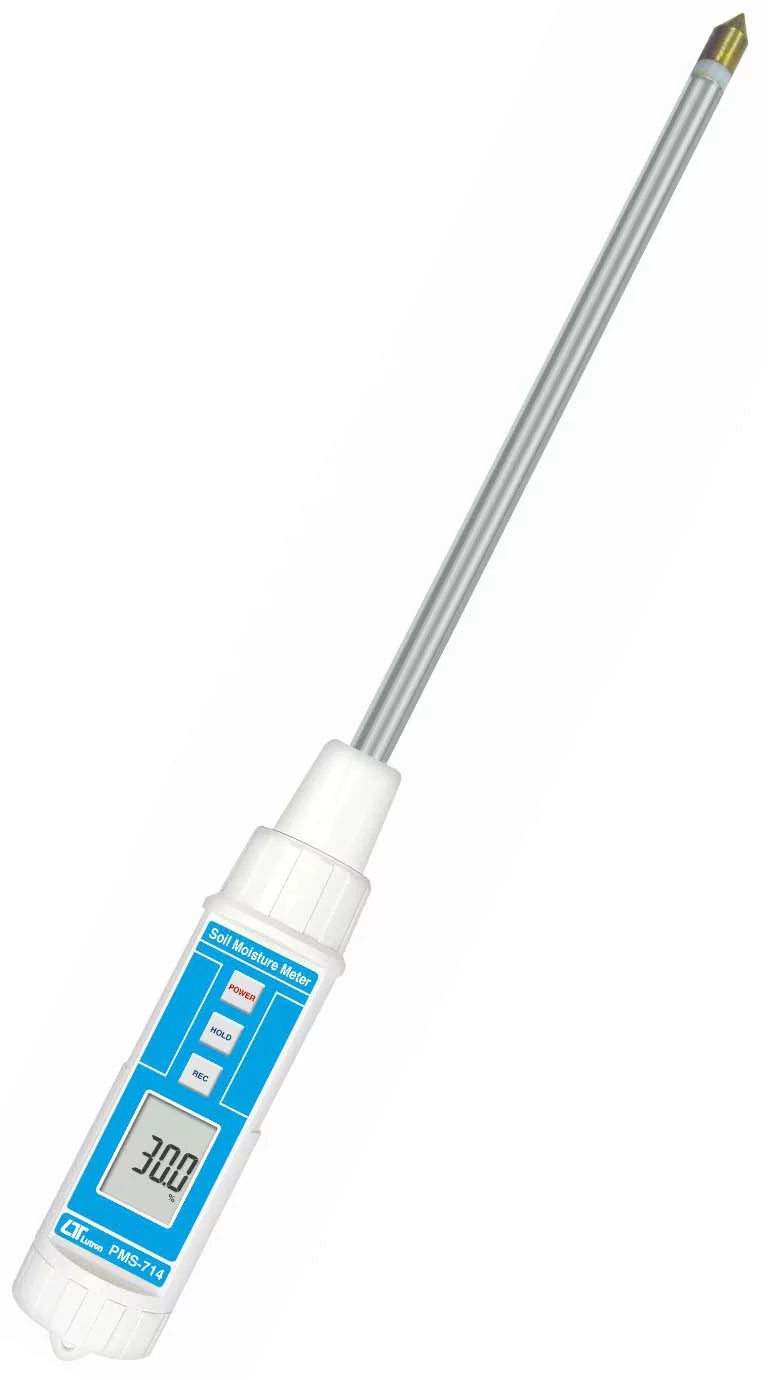

The Lutron PMS-714 is a professional digital soil moisture meter designed to accurately measure the moisture content of soil and similar materials. Featuring a durable two-pin electrode probe, microprocessor-controlled circuitry, and a clear LCD display, it provides fast and reliable moisture readings from 0% to 50%. Ideal for agriculture, horticulture, landscaping, greenhouses, research laboratories, and environmental monitoring, the PMS-714 offers simple operation and dependable performance for both field and laboratory use.

Key Features

• Professional Digital Soil Moisture Meter
• Measures Soil Moisture Content from 0% to 50%
• Precision Two-Pin Electrode Probe
• High Accuracy Microprocessor Circuit
• Large LCD Display
• Fast Measurement Response
• Data Hold Function
• Low Battery Indicator
• Compact & Lightweight Design
• Durable ABS Plastic Housing
• Easy One-Hand Operation
• Suitable for Field & Laboratory Applications
• Portable and Battery Powered

Applications

Ideal for:

• Agriculture
• Horticulture
• Greenhouses
• Plant Nurseries
• Landscaping
• Soil Testing Laboratories
• Environmental Monitoring
• Irrigation Management
• Research Institutes
• Universities
• Gardening
• Soil Science Studies

Technical Specifications

Soil Moisture Measurement

Measurement Principle

• Two stainless-steel electrode pins measure the conductivity of the soil.
• The instrument converts conductivity into a direct soil moisture percentage reading.

Display

• LCD Display
• Display Size: 28 × 19 mm
• Clear Digital Readout

Functions

• Soil Moisture Measurement
• Data Hold
• Low Battery Indicator

Probe

• Integrated Probe
• Probe Length: 220 mm
• Probe Diameter: 10 mm
• Two Stainless Steel Electrodes

Sampling Time

• Approximately 0.8 seconds

Operating Conditions

Operating Temperature

• 0°C to 50°C

Operating Humidity

• Less than 80% RH

Power Supply

• 4 × 1.5V AAA Batteries (UM-4)

Power Consumption

• Approximately 12 mA

Dimensions

Meter Body

• 172 × 40 × 40 mm

Probe

• 220 mm × 10 mm Diameter

Total Length

• 392 mm

Weight

• Approximately 267 g (including batteries)

Construction

• High-Impact ABS Plastic Housing
• Corrosion-Resistant Metal Electrodes
• Microprocessor-Based Electronics

Standard Package Includes

• Lutron PMS-714 Soil Moisture Meter
• User Instruction Manual

Optional Accessories

• Hard Carrying Case (CA-06)

Advantages

• Quick and Accurate Soil Moisture Measurement
• Easy-to-Read Digital Display
• Durable Probe Design
• Lightweight and Portable
• Reliable for Field and Laboratory Use
• Low Maintenance
• Rugged Construction
• Simple One-Hand Operation
• Long Battery Life
• Ideal for Routine Soil Analysis

Industries Served

• Agriculture
• Horticulture
• Greenhouse Farming
• Landscaping
• Environmental Monitoring
• Research Laboratories
• Educational Institutions
• Irrigation Management
• Forestry
• Plant Science
