Short Description

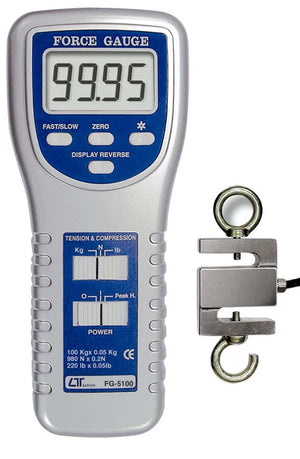

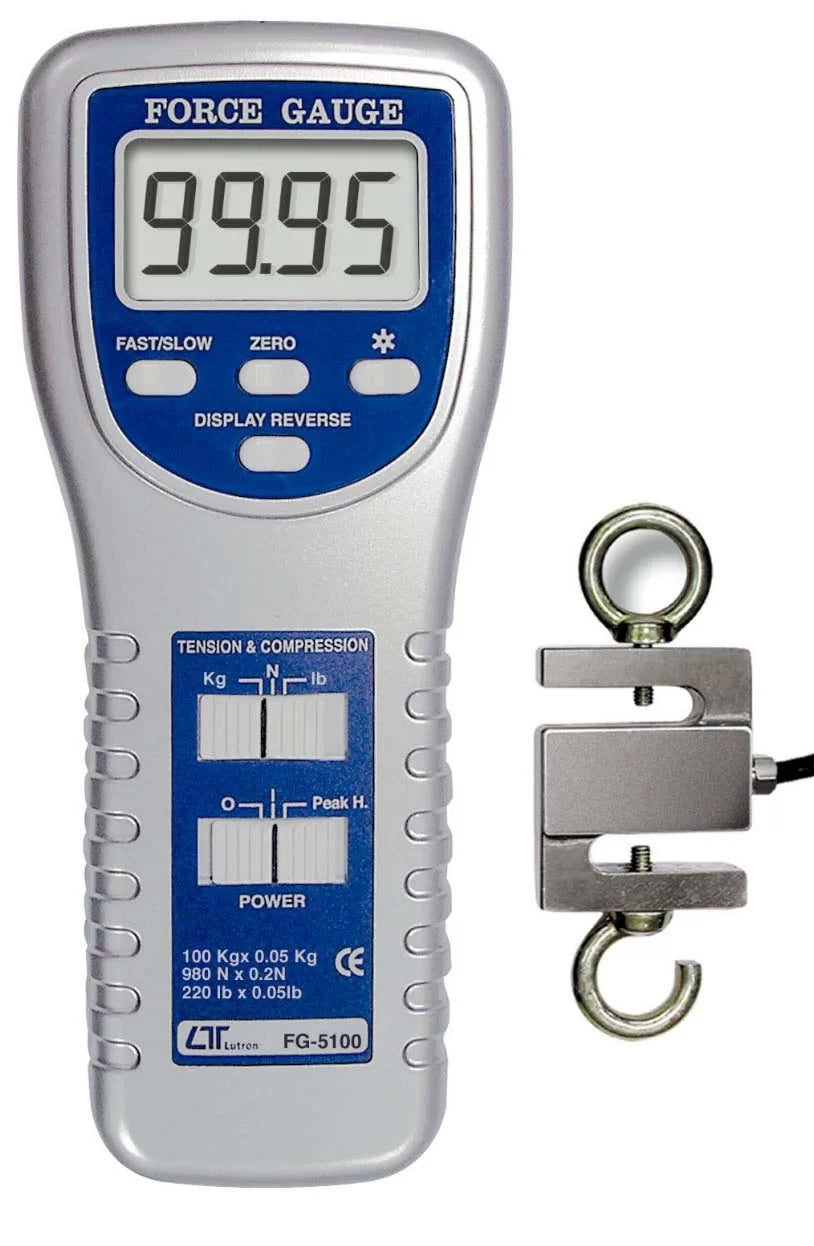

The Lutron FG-5100 is a professional digital force gauge engineered for precise tension (pull) and compression (push)force measurements. Featuring a high-capacity 100 kg (980 N / 220 lb) load cell, backlit LCD display, peak hold function, reversible display, fast/slow response modes, and an RS-232 computer interface, it is ideal for industrial quality control, production testing, material testing, laboratories, and research applications. The instrument can be used as a handheld device or mounted on an optional test stand for highly accurate and repeatable measurements.

Key Features

• Professional Digital Push-Pull Force Gauge
• Measures Tension (Pull) & Compression (Push)
• Capacity: 100 kg / 220 lb / 980 N
• High Accuracy & Excellent Repeatability
• Separate S-Type Load Cell Sensor
• Peak Hold Function
• Zero (Tare) Function
• Fast & Slow Response Modes
• Positive / Reverse Display Selection
• Large 5-Digit Backlit LCD Display
• Multiple Measurement Units (kg, lb, N)
• RS-232 Computer Interface
• Handheld or Test Stand Operation
• Microprocessor-Based Circuit
• Overload Protection
• Battery or Optional DC Adapter Operation

Applications

Suitable for:

• Tensile Strength Testing
• Compression Force Testing
• Spring Force Testing
• Switch & Button Testing
• Packaging Testing
• Wire & Cable Testing
• Material Testing
• Component Quality Inspection
• Production Line Testing
• Automotive Industry
• Research Laboratories
• Universities
• Mechanical Engineering
• Industrial Maintenance

Technical Specifications

Force Measurement

Measuring Units

• Kilogram (kg)
• Pound (lb)
• Newton (N)

Display

Measurement Functions

• Tension Measurement
• Compression Measurement
• Peak Hold
• Zero / Tare
• Fast / Slow Response
• Unit Selection
• Overload Indication
• RS-232 Data Output

Response Time

Sensor

• Separate S-Type Load Cell
• 2-Meter Sensor Cable
• Two Hook Attachments Included

Overload Capacity

• Maximum Overload: 150 kg

Full Scale Deflection

• Less than 1 mm

Data Output

• RS-232 Serial Interface
• Compatible with optional USB cable and PC data logging software.

Operating Conditions

Operating Temperature

• 0°C to 50°C

Operating Humidity

• Less than 80% RH

Power Supply

• 6 × 1.5V AA Batteries (UM-3)
• Optional 9V DC Power Adapter

Power Consumption

• Approximately 28 mA DC

Dimensions

Main Unit

• 215 × 90 × 45 mm

Load Cell Sensor

• 130 × 51 × 18 mm

Cable Length

• 2 meters

Weight

• Main Unit: 450 g
• Sensor: 380 g

Construction

• Heavy-Duty ABS Plastic Housing
• Precision S-Type Load Cell
• Industrial Grade Electronics
• Microprocessor-Controlled Circuit

Standard Package Includes

• Lutron FG-5100 Digital Force Gauge
• 100 kg S-Type Load Cell Sensor
• 2-Meter Sensor Cable
• Two Hook Attachments
• Hard Carrying Case
• User Instruction Manual

Optional Accessories

• USB Communication Cable (USB-01)
• RS-232 Communication Cable (UPCB-01)
• PC Data Logging Software (SW-U801-WIN)
• Vertical Motorized Test Stand
• Bench Test Stand
• 9V DC Power Adapter
