Short Description

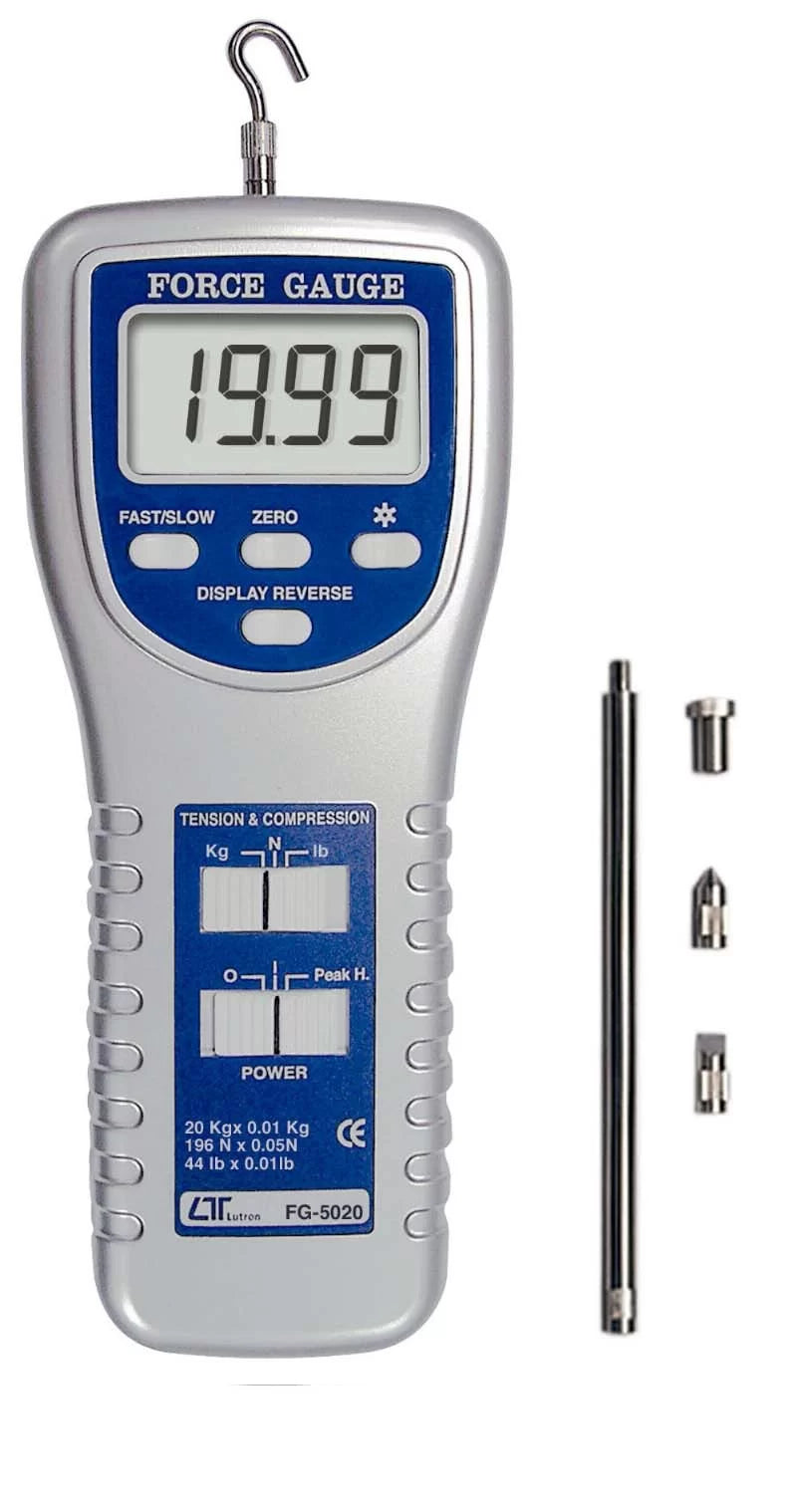

The Lutron FG-5020 is a professional digital force gauge designed for accurate tension (pull) and compression (push)force measurements. With a measuring capacity of 20 kg (196 Newton), high-resolution LCD display, peak hold function, reversible display, and RS-232 computer interface, it is ideal for production testing, quality control, material testing, research laboratories, and industrial maintenance. The instrument can be used as a handheld device or mounted on an optional test stand for precise and repeatable measurements.

Key Features

• Professional Digital Force Gauge
• Measures Tension (Pull) & Compression (Push)
• Capacity: 20 kg / 196 N / 44 lb
• High Accuracy & Repeatability
• Peak Hold Function
• Zero (Tare) Function
• Fast & Slow Response Modes
• Positive / Reverse Display Selection
• Large Backlit 5-Digit LCD Display
• Multiple Units (kg, lb, Newton)
• Microprocessor-Based Circuit
• RS-232 Computer Interface
• Handheld or Test Stand Operation
• Rugged ABS Housing
• Battery or DC Adapter Operation
• Overload Protection

Applications

Suitable for:

• Tensile Force Testing
• Compression Force Testing
• Spring Testing
• Switch & Button Force Testing
• Packaging Testing
• Wire & Cable Testing
• Adhesive Strength Testing
• Quality Control
• Manufacturing Plants
• Research Laboratories
• Educational Institutions
• Product Development
• Mechanical Engineering
• Industrial Inspection

Technical Specifications

Force Measurement

Measuring Units

• Kilogram (kg)
• Pound (lb)
• Newton (N)

Display

Response Speed

Functions

• Tension Measurement
• Compression Measurement
• Peak Hold
• Zero / Tare
• Fast / Slow Response Selection
• Display Direction Selection
• Overload Indication
• RS-232 Data Output

Overload Capacity

• Maximum Overload: 30 kg

Deflection

• Full Scale Deflection: Approx. 0.4 mm

Data Output

• RS-232 Serial Interface
• Compatible with optional PC software and data acquisition systems.

Operating Conditions

Operating Temperature

• 0°C to 50°C

Operating Humidity

• Less than 80% RH

Power Supply

• 6 × 1.5V AA Batteries (UM-3)
• Optional 9V DC Adapter

Dimensions

• 215 × 90 × 45 mm

Weight

• Approximately 650 g

Construction

• Heavy-Duty ABS Plastic Housing
• Precision Load Cell Sensor
• Industrial Grade Electronics

Standard Package Includes

• Lutron FG-5020 Digital Force Gauge
• Standard Measuring Adapters (Hook, Flat Head, Cone Tip, Chisel Tip, Notch Tip)
• Extension Rod
• Hard Carrying Case
• User Instruction Manual

Optional Accessories

• FS-1001 Test Stand
• RS-232 Communication Cable
• USB Interface Kit
• PC Data Logging Software
• Additional Force Testing Fixtures

Advantages

• High Accuracy Force Measurement
• Measures Both Push & Pull Forces
• Large Backlit Display
• Peak Hold for Maximum Force Capture
• Multiple Engineering Units
• Fast Response for Dynamic Testing
• Rugged Industrial Design
• Portable or Bench-Mounted Operation
• Easy PC Connectivity
• Ideal for Quality Assurance & Material Testing
