Short Description

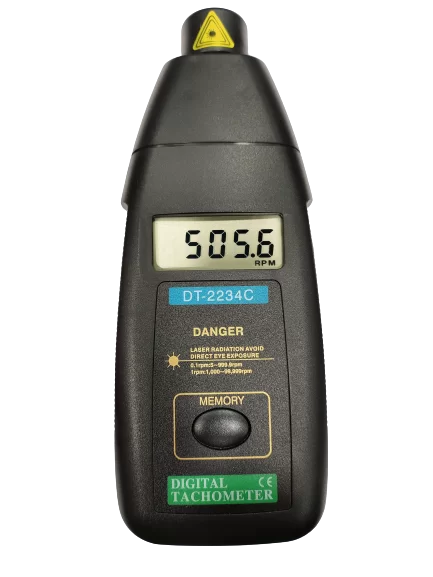

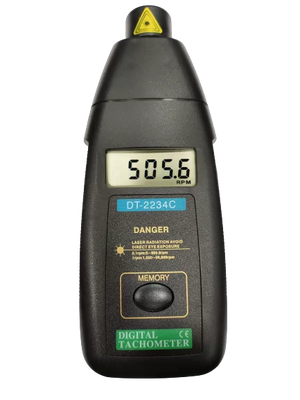

The Lutron DT-2234C is a professional non-contact digital tachometer designed to accurately measure the rotational speed (RPM) of motors, shafts, gears, fans, pulleys, and other rotating machinery without physical contact. Using a precision optical laser sensor and reflective tape, it provides fast, reliable measurements over a wide RPM range. Its large LCD display, memory recall, automatic range selection, and rugged ABS construction make it ideal for industrial maintenance, quality control, laboratories, automotive workshops, and manufacturing applications.

Key Features

• Professional Non-Contact Laser Tachometer
• Wide Measurement Range up to 99,999 RPM
• High Accuracy Optical Measurement
• Laser Targeting for Easy Operation
• Large 5-Digit LCD Display
• Automatic Measuring Range Selection
• Memory Recall for Last, Maximum & Minimum Values
• Microprocessor-Based Circuitry
• Quartz Crystal Time Base
• Fast Sampling Time
• Long Measuring Distance
• Data Hold Function
• Low Battery Indicator
• Lightweight & Portable Design
• Durable ABS Plastic Housing
• Easy Single-Hand Operation

Applications

Suitable for:

• Electric Motors
• Pumps
• Cooling Fans
• HVAC Equipment
• Conveyor Systems
• Gearboxes
• Industrial Machinery
• Textile Machines
• Printing Machines
• CNC Machines
• Automotive Engine Testing
• Laboratory Equipment
• Production Line Inspection
• Quality Control
• Maintenance & Service

Technical Specifications

RPM Measurement

Measuring Distance

• 50 to 500 mm (2 to 20 inches)

Display

Memory Function

• Last Reading
• Maximum Reading
• Minimum Reading

Sampling Time

Approximately 0.8 seconds (above 60 RPM).

Time Base

• Quartz Crystal Oscillator

Laser Source

• Visible Red Laser
• Precision Optical Detection System

Functions

• Non-Contact RPM Measurement
• Automatic Range Selection
• Max Reading Recall
• Min Reading Recall
• Last Reading Recall
• Data Hold
• Low Battery Indicator

Operating Conditions

Operating Temperature:

• 0°C to 50°C

Operating Humidity:

• Less than 80% RH

Power Supply

• 4 × 1.5V AA Batteries

Power Consumption:

• Approximately 40–50 mA

Dimensions

• 160 × 76 × 40 mm

Weight

• Approximately 300 g

Construction

• High-Impact ABS Plastic Housing
• Industrial-Grade Electronic Components
• Precision Laser Optical Sensor

Standard Package Includes

• Lutron DT-2234C Digital Tachometer
• Reflective Tape
• Carrying Case
• User Instruction Manual
• Batteries (may vary by supplier)

Advantages

• Safe Non-Contact RPM Measurement
• High Accuracy & Fast Response
• Wide RPM Measuring Range
• Laser Targeting for Precise Alignment
• Easy-to-Read LCD Display
• Memory Recall for Critical Measurements
• Compact & Lightweight Design
• Reliable Industrial Performance
• Long Service Life
• Minimal Maintenance

Industries Served

• Manufacturing
• Automotive
• HVAC
• Electrical Maintenance
• Mechanical Engineering
• Textile Industry
• Paper & Printing
• Food Processing
• Research Laboratories
• Educational Institutions
• Industrial Plants
• Quality Assurance
