Lovibond® TB 211 IR Digital Portable Turbidity Meter | 0.01–1100 NTU | Infrared 90° Nephelometric Measurement | USB Interface
Product Brochure
For more details about this product, download the brochure.
Description
The Lovibond® TB 211 IR is a compact, portable turbidity meter designed for fast and reliable on-site water analysis. It uses an infrared LED at 860 nm and a 90° nephelometric measurement principle in accordance with EN ISO 7027. Its wide 0.01–1100 NTU measuring range makes it suitable for applications ranging from drinking-water testing to wastewater monitoring.
The infrared measurement system also enables testing of both coloured and colourless water samples. Results can be transferred to a computer through the integrated Micro-USB interface, while internal memory stores up to 125 measurement datasets.
Key Features
- Measuring range: 0.01–1100 NTU
- Automatic range selection (Autorange)
- Infrared LED: 860 nm
- 90° nephelometric measurement
- Measurement according to EN ISO 7027
- Suitable for coloured and colourless samples
- Backlit LCD display
- Micro-USB interface for data transfer
- Internal memory for 125 data records
- Real-time clock and date
- Automatic switch-off
- Splash-resistant operation
- Compact and portable design
- CE compliant
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Lovibond® |
| Model | TB 211 IR |
| Part Number | 266030 |
| Parameter | Turbidity |
| Measuring Range | 0.01–1100 NTU |
| Measurement Principle | Nephelometric, 90° scattered light |
| Light Source | Temperature-compensated infrared LED |
| Wavelength | 860 nm |
| Resolution | 0.01 NTU from 0.01–9.99 NTU |
| Resolution | 0.1 NTU from 10.0–99.9 NTU |
| Resolution | 1 NTU from 100–1100 NTU |
| Accuracy | ±2.5% of reading or ±0.01 NTU, whichever is greater, from 0.01–500 NTU |
| Accuracy | ±5% of reading from 500–1000 NTU |
| Repeatability | ±1% of reading or ±0.01 NTU, whichever is greater |
| Display | Backlit LCD |
| Sample Vials | Round cuvettes, 24 mm diameter |
| Data Storage | 125 datasets |
| Interface | Micro-USB |
| Data Transfer | CSV format |
| Power | 9 V block battery |
| Auto-Off | Yes |
| Operating Temperature | 5–40°C |
| Relative Humidity | 30–90%, non-condensing |
| Dimensions | 190 × 110 × 55 mm |
| Weight | Approx. 400 g |
| Compliance | CE |
Applications
- Drinking water treatment
- Wastewater treatment
- Pool and swimming-pool water testing
- Municipal water monitoring
- Water-quality laboratories
- Environmental monitoring
- Chemical industry
- Marine applications
- Oil & gas industry
- Field/on-site water analysis
Measurement & Data Management
The TB 211 IR measures turbidity by detecting light scattered at 90° from particles in the sample. The infrared optical system follows the measurement approach specified in EN ISO 7027.
The instrument's internal ring memory can store 125 datasets, and measurements can be transferred to a computer through the Micro-USB connection.

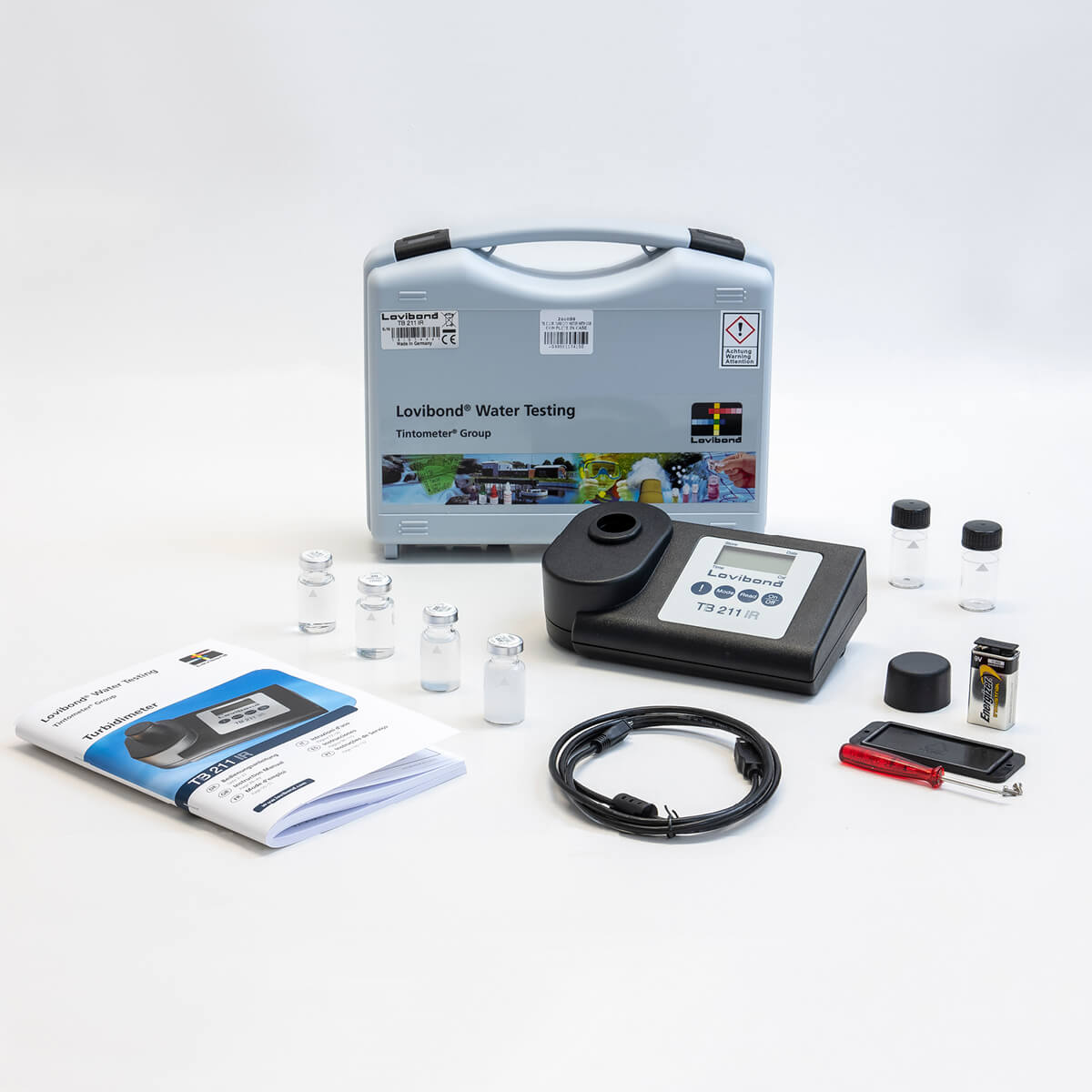

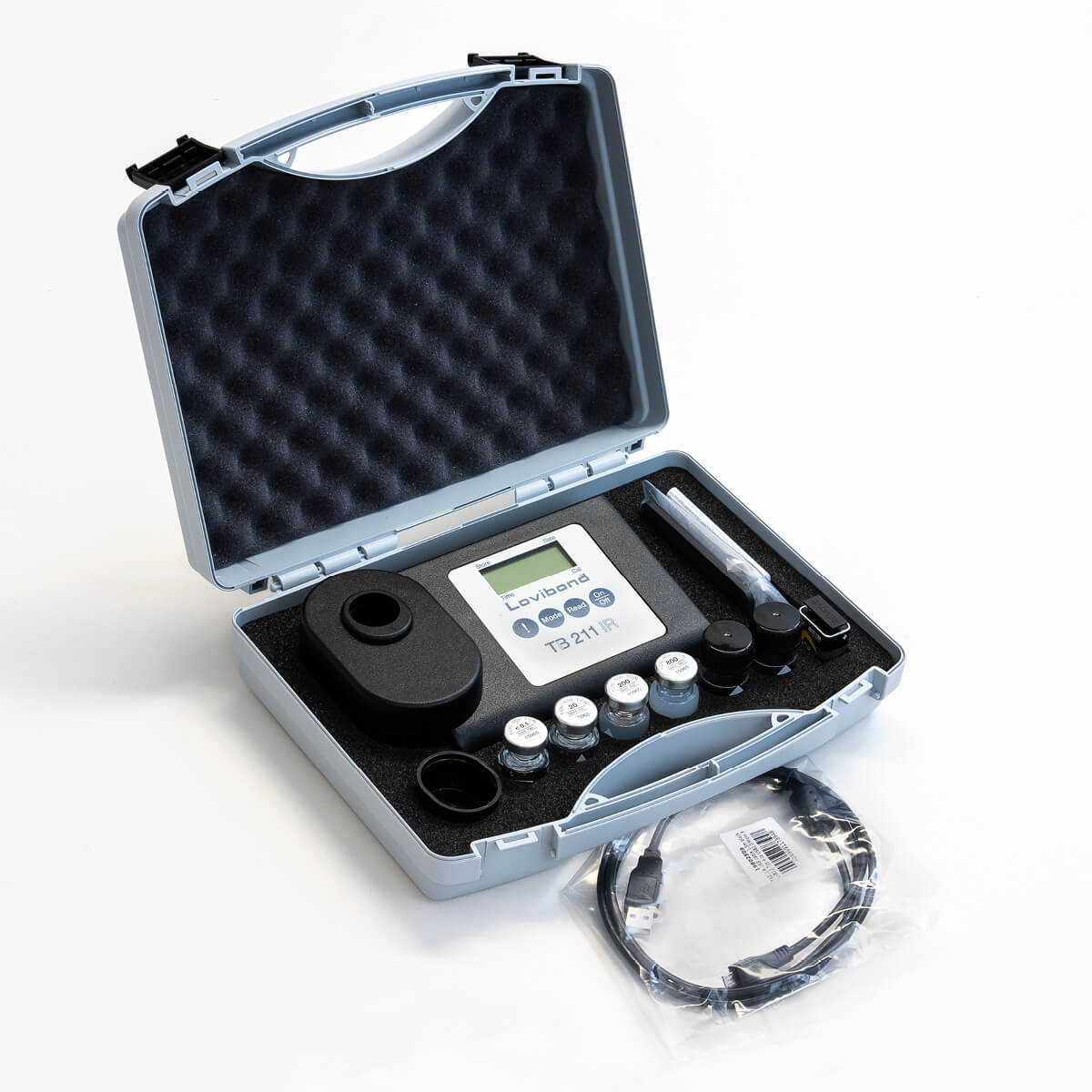

What's Included
The standard TB 211 IR package includes:
- Lovibond TB 211 IR turbidity meter

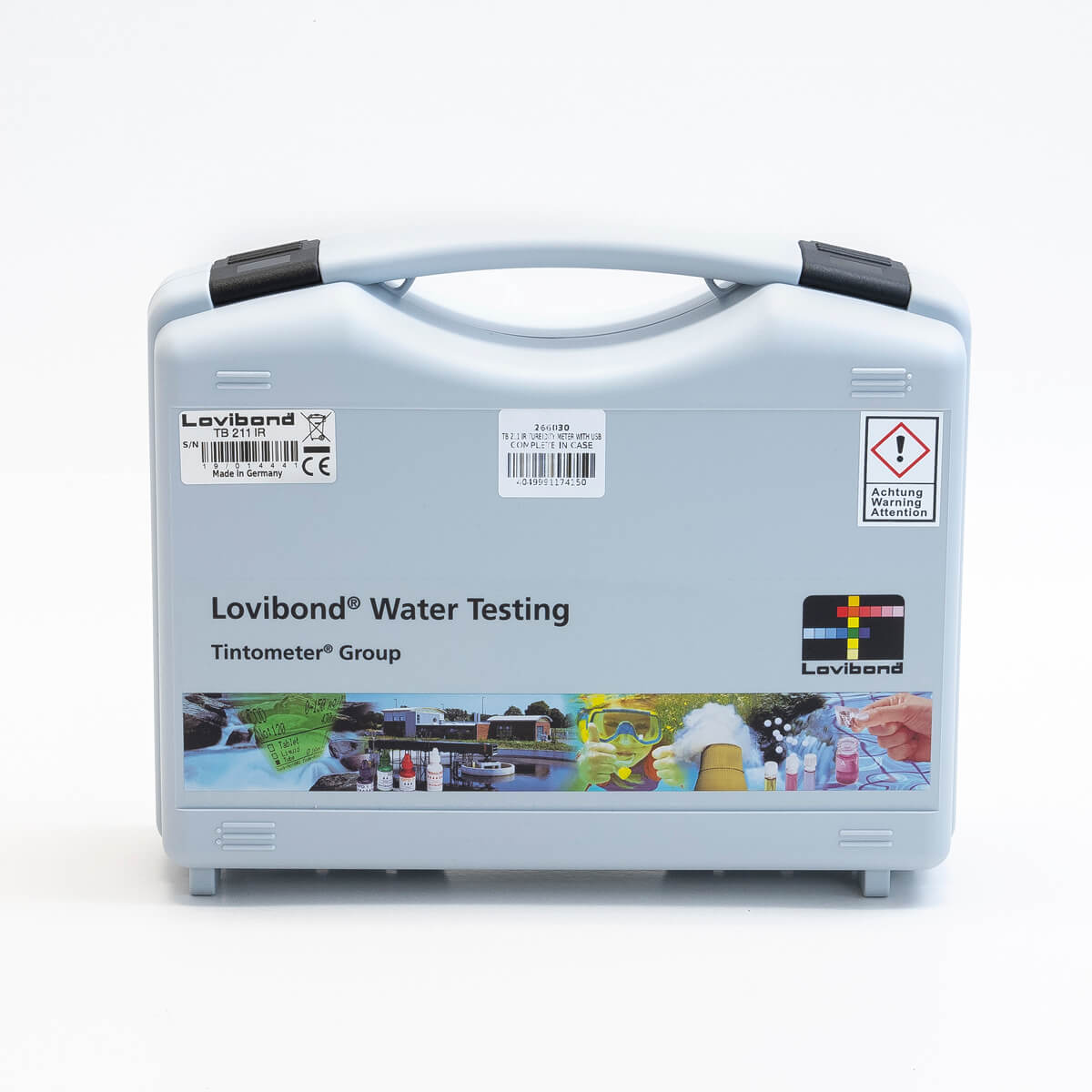

- Carrying case
- 4 turbidity standards: <0.1, 20, 200 and 800 NTU
- 9 V battery
- 2 × 24 mm sample vials with lids
- 1.5 m USB cable
- Certificate of Compliance
- Warranty information
- Instruction manual
