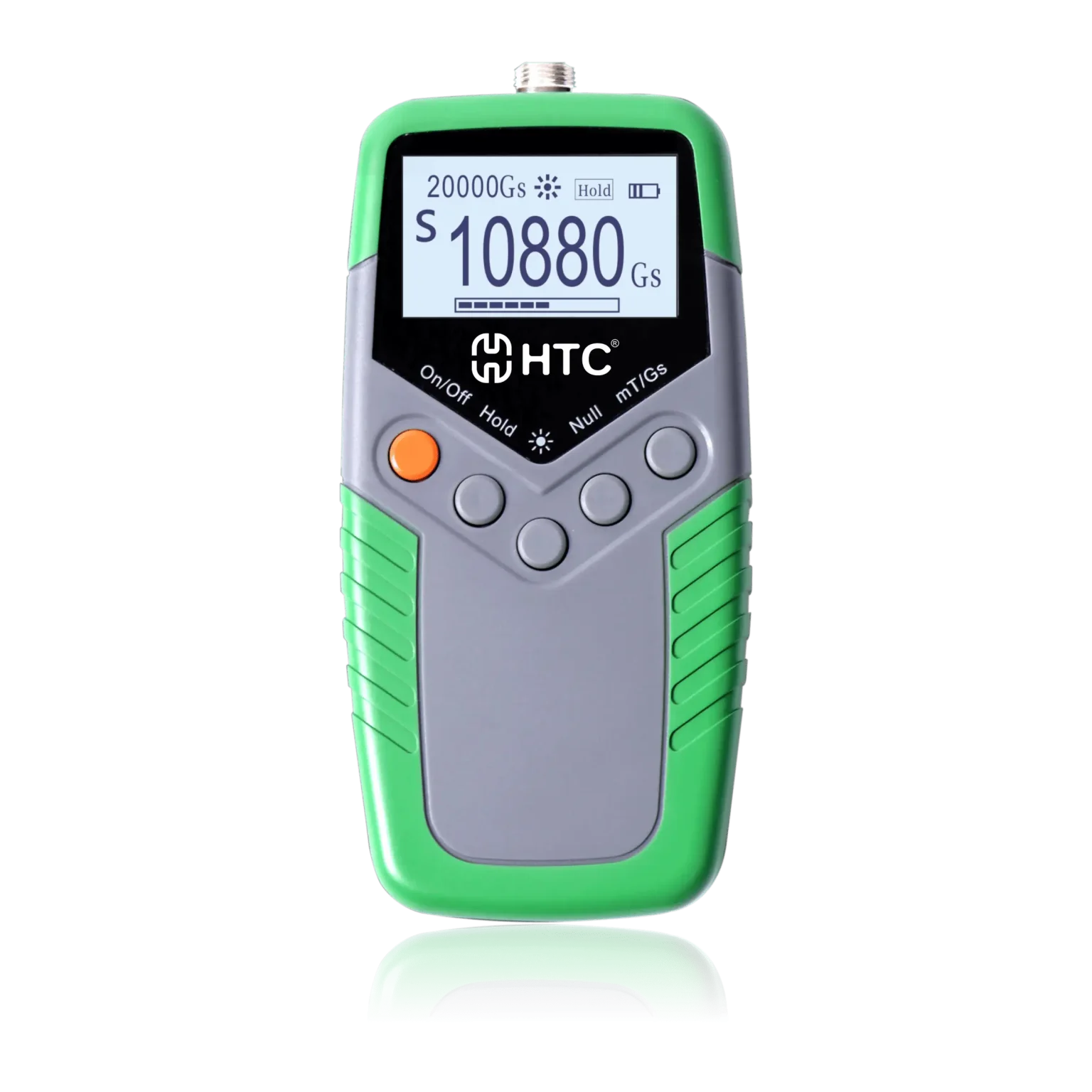

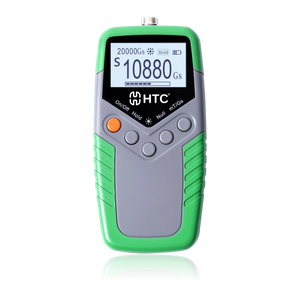

HTC TM-527 Digital Tesla Meter

HTC TM-527 Digital Tesla Meter

The HTC TM-527 Digital Tesla Meter is a professional handheld instrument designed for measuring DC magnetic field strength with high accuracy and reliability. Featuring a high-sensitivity Hall-effect transverse probe, it provides direct digital readings in Tesla (mT) and Gauss (G), making it ideal for laboratories, industrial inspections, magnetic material testing, research, and quality control applications. With automatic ranging, adjustable backlight, and Max Hold functionality, the TM-527 offers precise and convenient magnetic field measurements.

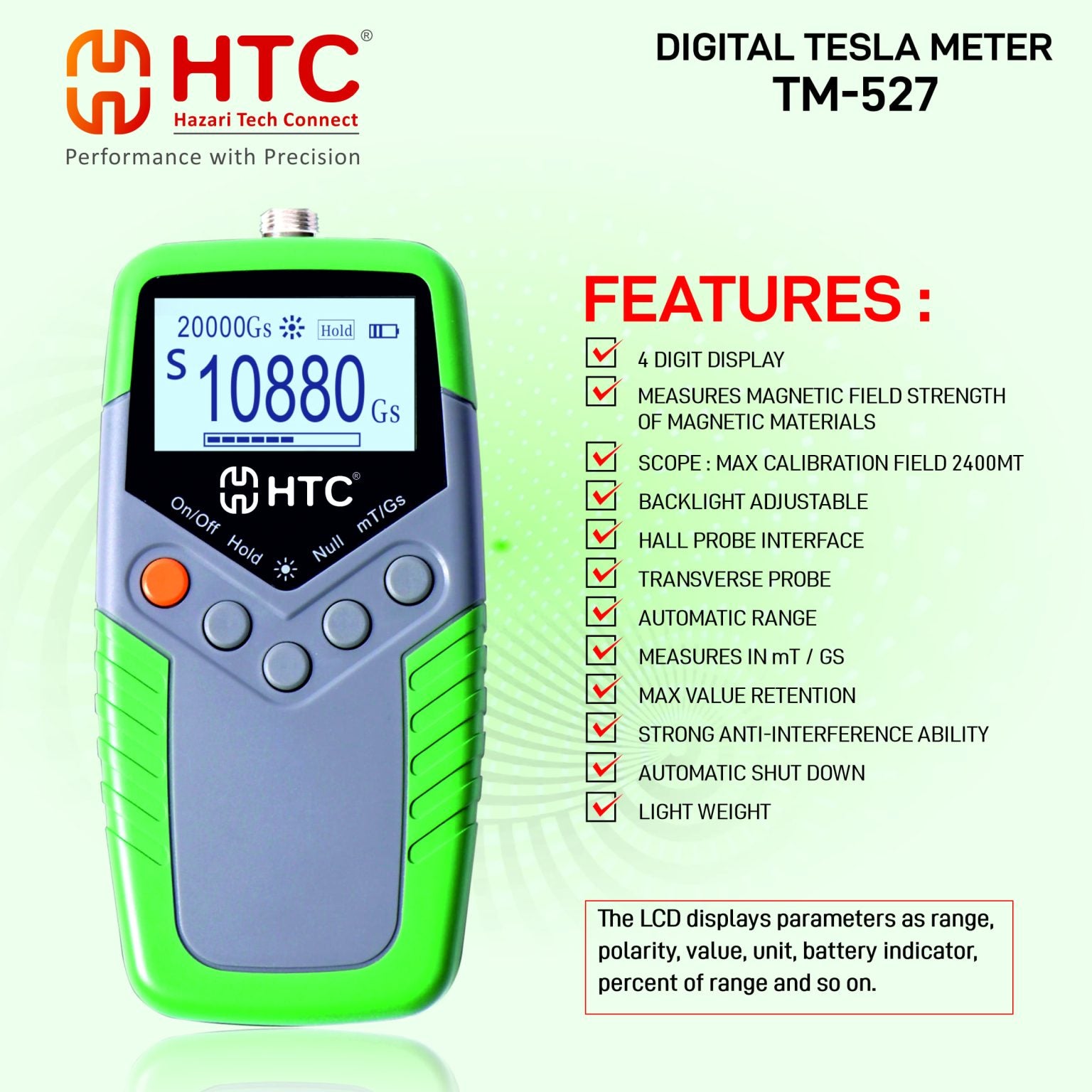

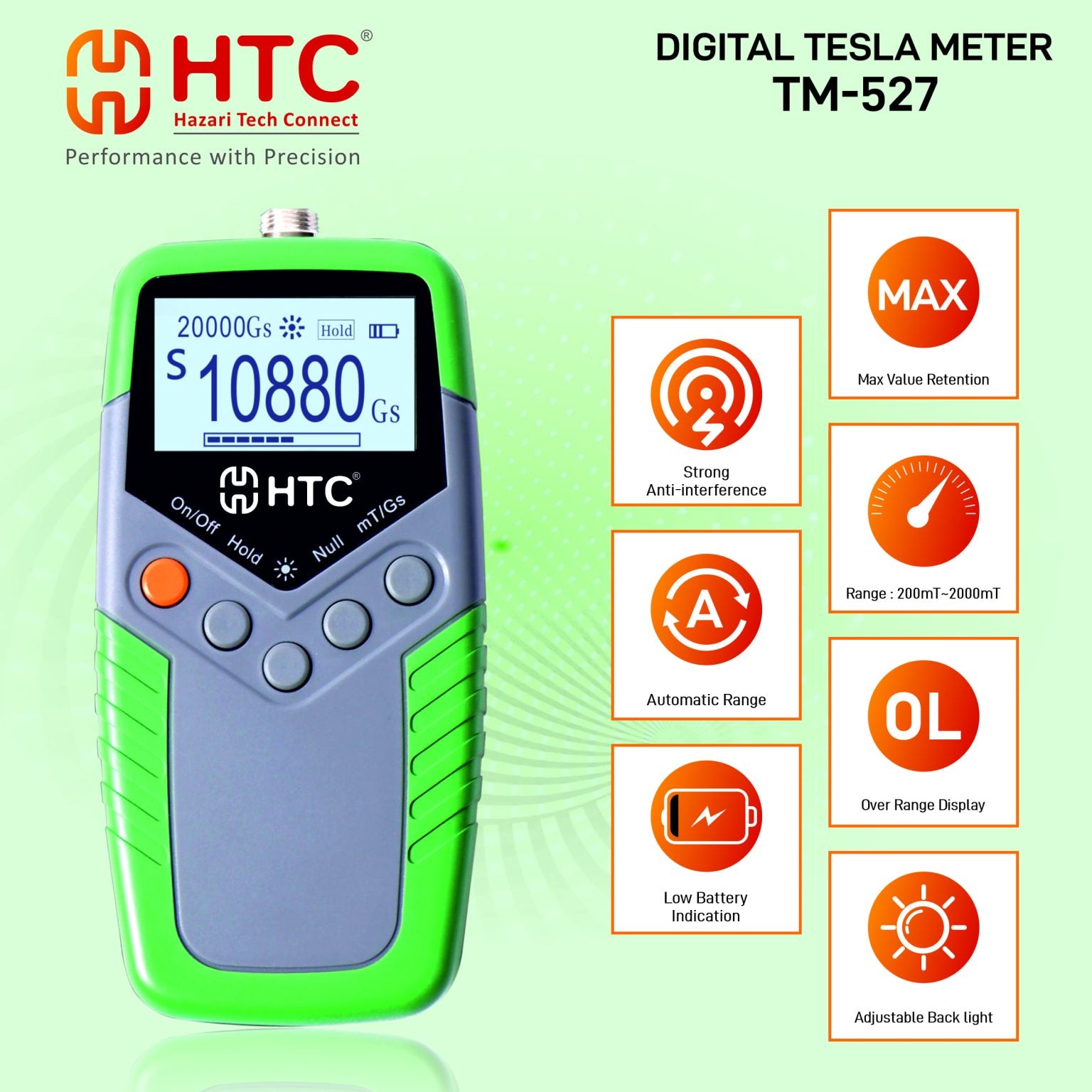

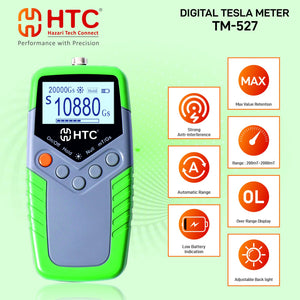

Key Features

• Measures DC magnetic field strength with high accuracy.
• Dual measurement units: mT (milliTesla) and Gauss (G).
• Wide measuring range of 200 mT to 2000 mT.
• Maximum calibration field up to 2400 mT (24 kG).
• High-sensitivity Hall-effect transverse probe with 1 m cable.
• Automatic ranging for simplified operation.
• 4-digit LCD display with adjustable backlight.
• Max Hold function captures the highest measured value.
• Strong anti-interference performance for stable readings.
• Over-range indication and low battery warning.
• Auto power-off to extend battery life.
• Lightweight, portable, and easy-to-use handheld design.

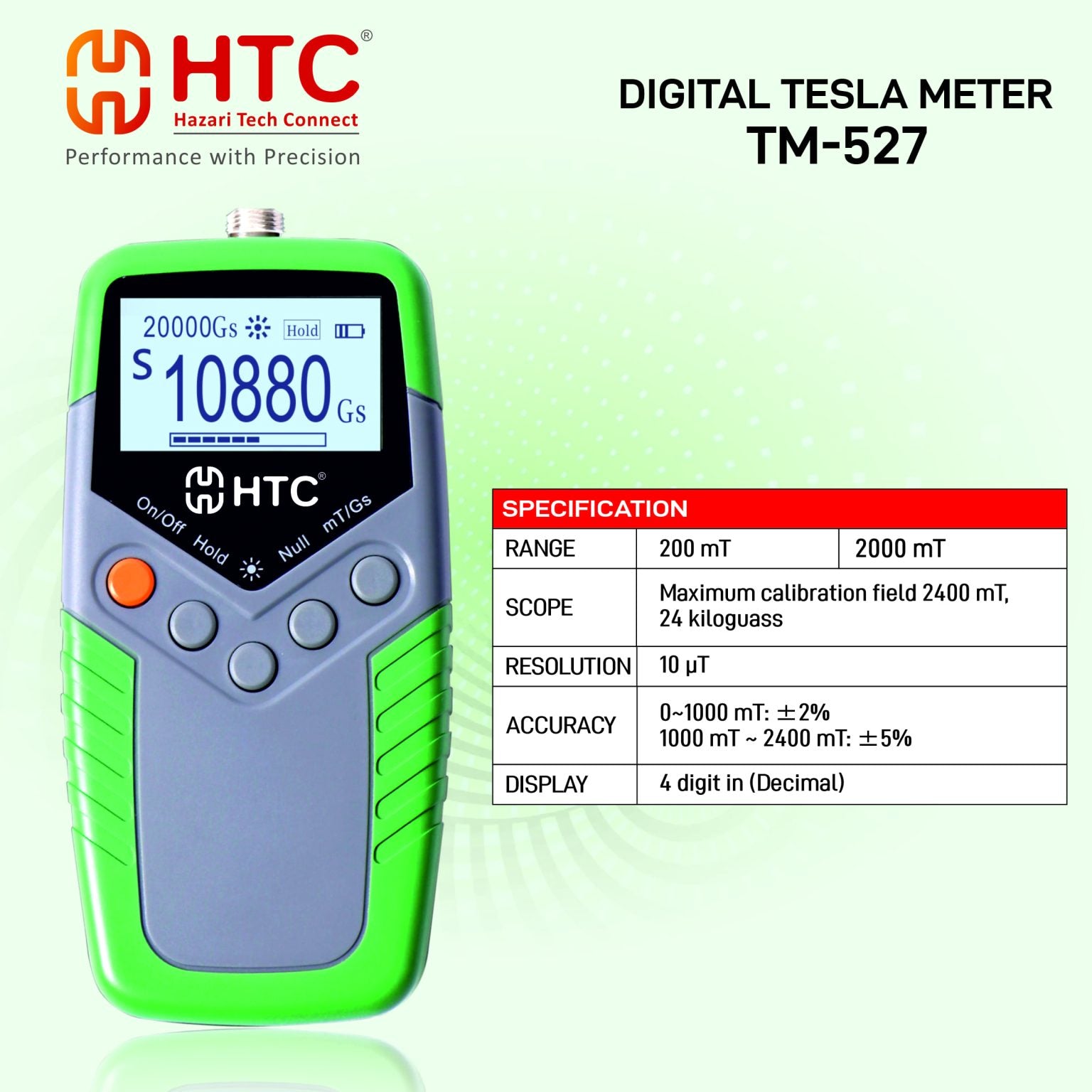

Technical Specifications

Specification  Details

Model : HTC TM-527

Measurement Type : DC Magnetic Field

Measurement Units : mT (MilliTesla), G (Gauss)

Measuring Range : 200 mT / 2000 mT

Maximum Calibration Field : 2400 mT (24 kG)

Resolution : 10 µT

Accuracy : ±2% (0–1000 mT), ±5% (1000–2400 mT)

Display : 4-digit LCD

Probe Type : Hall-Effect Transverse Probe

Probe Cable Length : 1 m

Power Supply : 9V (6F22) Battery

Battery Life : Approx. 100 Hours

Operating Temperature : 0°C to 50°C

Storage Temperature : -20°C to 50°C

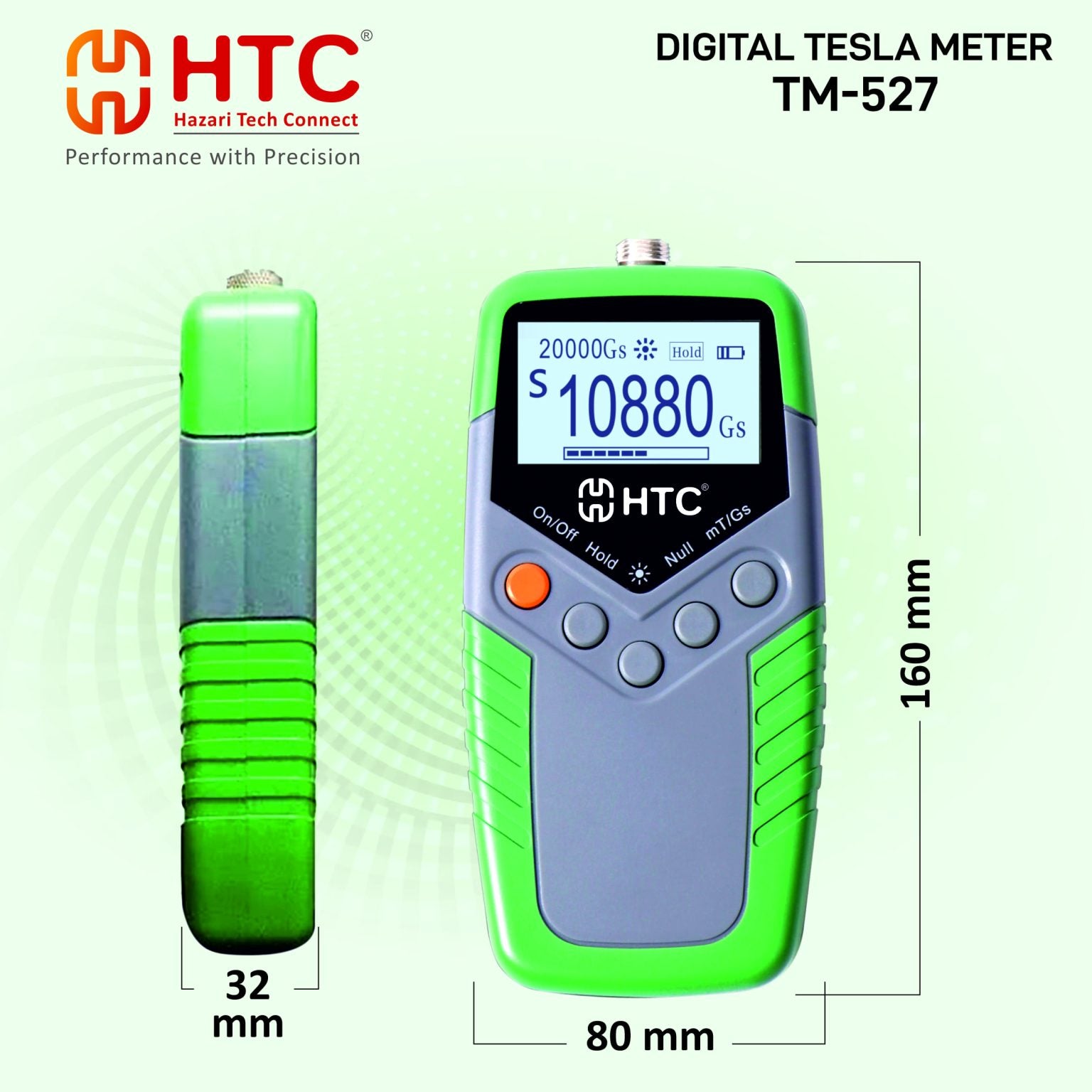

Dimensions : 160 × 80 × 32 mm

Weight : Approx. 260 g (including battery and probe)

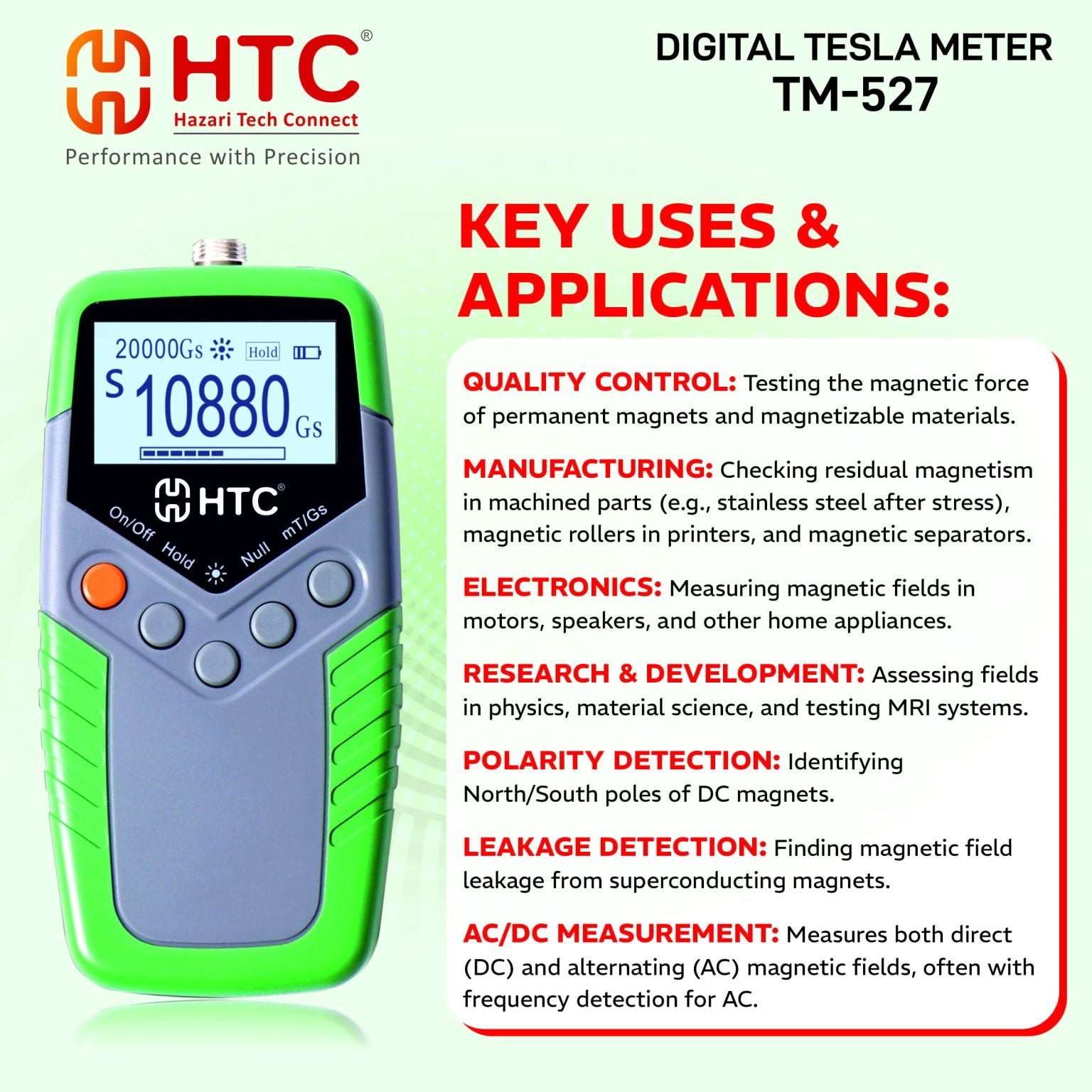

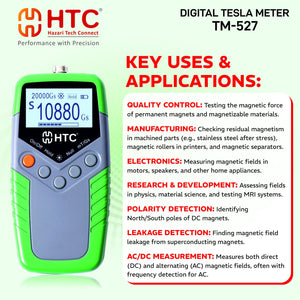

Applications

• Permanent magnet testing
• DC motor and generator inspection
• Transformer and solenoid testing
• Magnetic material quality control
• Laboratory and research applications
• Industrial maintenance and diagnostics
• Magnetic field mapping
• Educational and scientific experiments

Standard Accessories

• Hall-Effect Transverse Probe (1 m cable)
• 9V Battery
• User Manual
• Protective Carrying Case (model/package dependent)

Why Choose HTC TM-527?

The HTC TM-527 Digital Tesla Meter is engineered for professionals who require accurate and dependable DC magnetic field measurements. Its wide measurement range, Hall-effect sensing technology, automatic ranging, Max Hold function, and robust handheld design make it an excellent choice for laboratories, manufacturing facilities, quality assurance, and industrial maintenance. Whether testing magnetic components or monitoring magnetic field strength, the TM-527 delivers reliable performance with ease of use.
