HTC LX-10A Mini Lux Meter | Digital Light Meter | 0–200,000 Lux | Lux/FC Measurement | Data Hold | Max/Min | Backlight

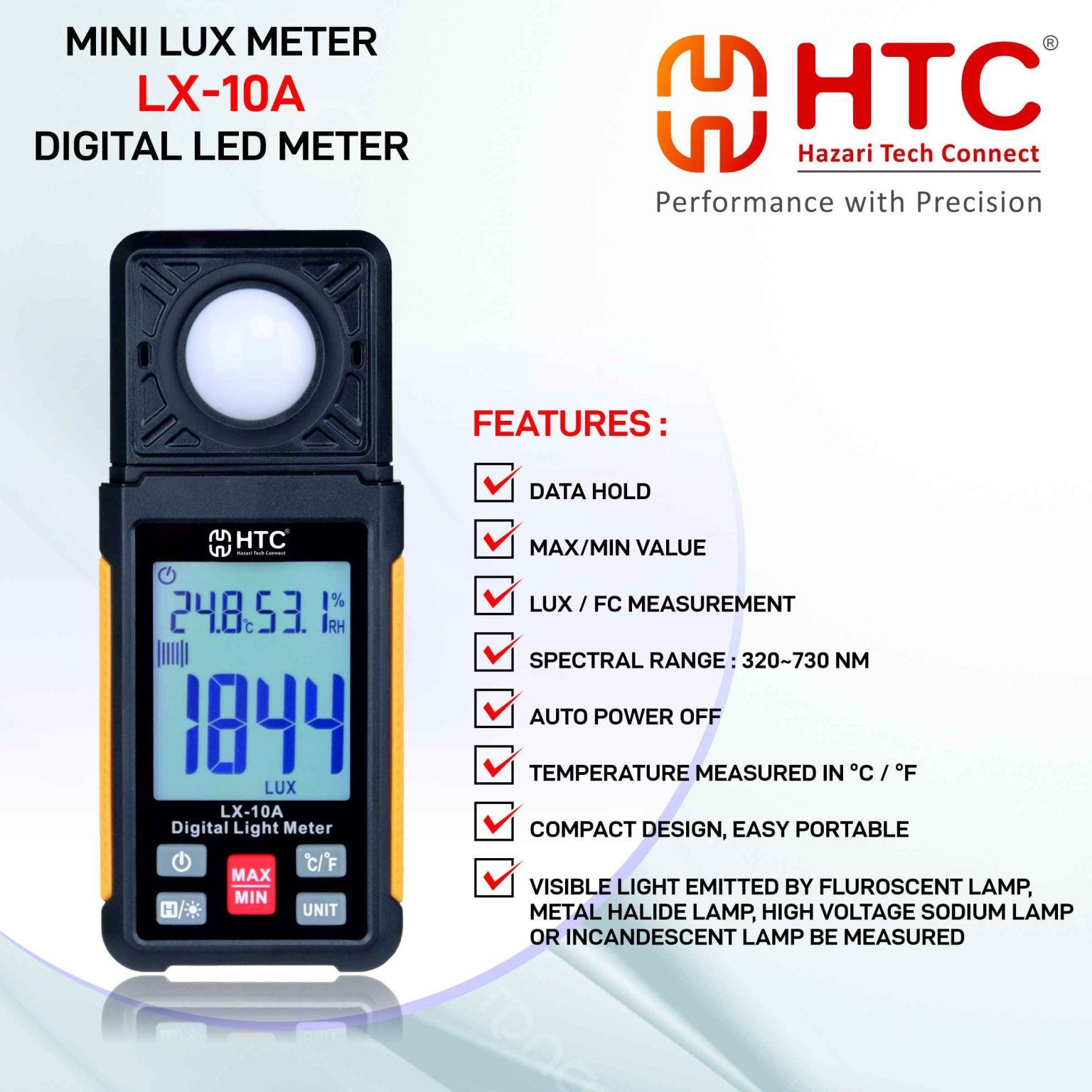

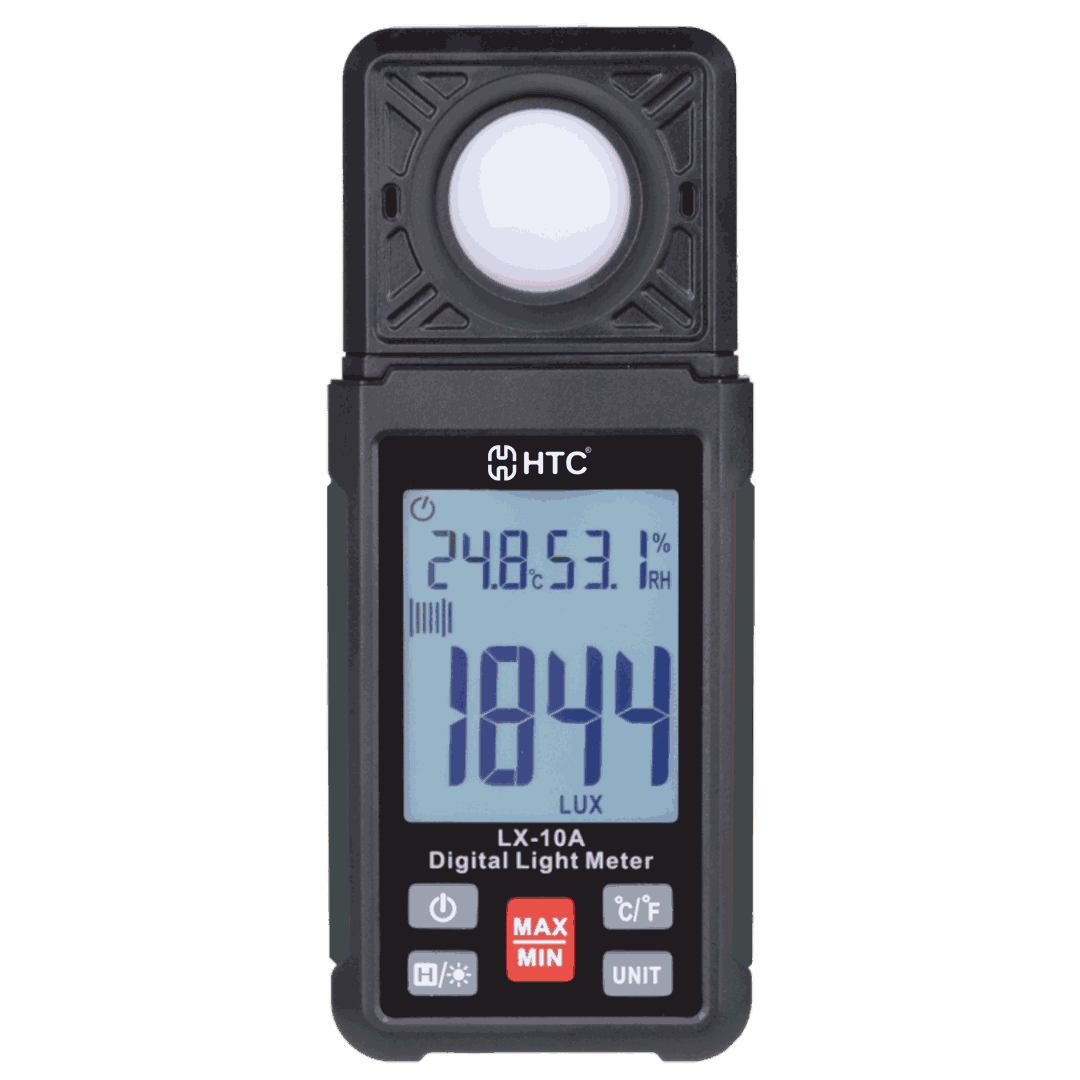

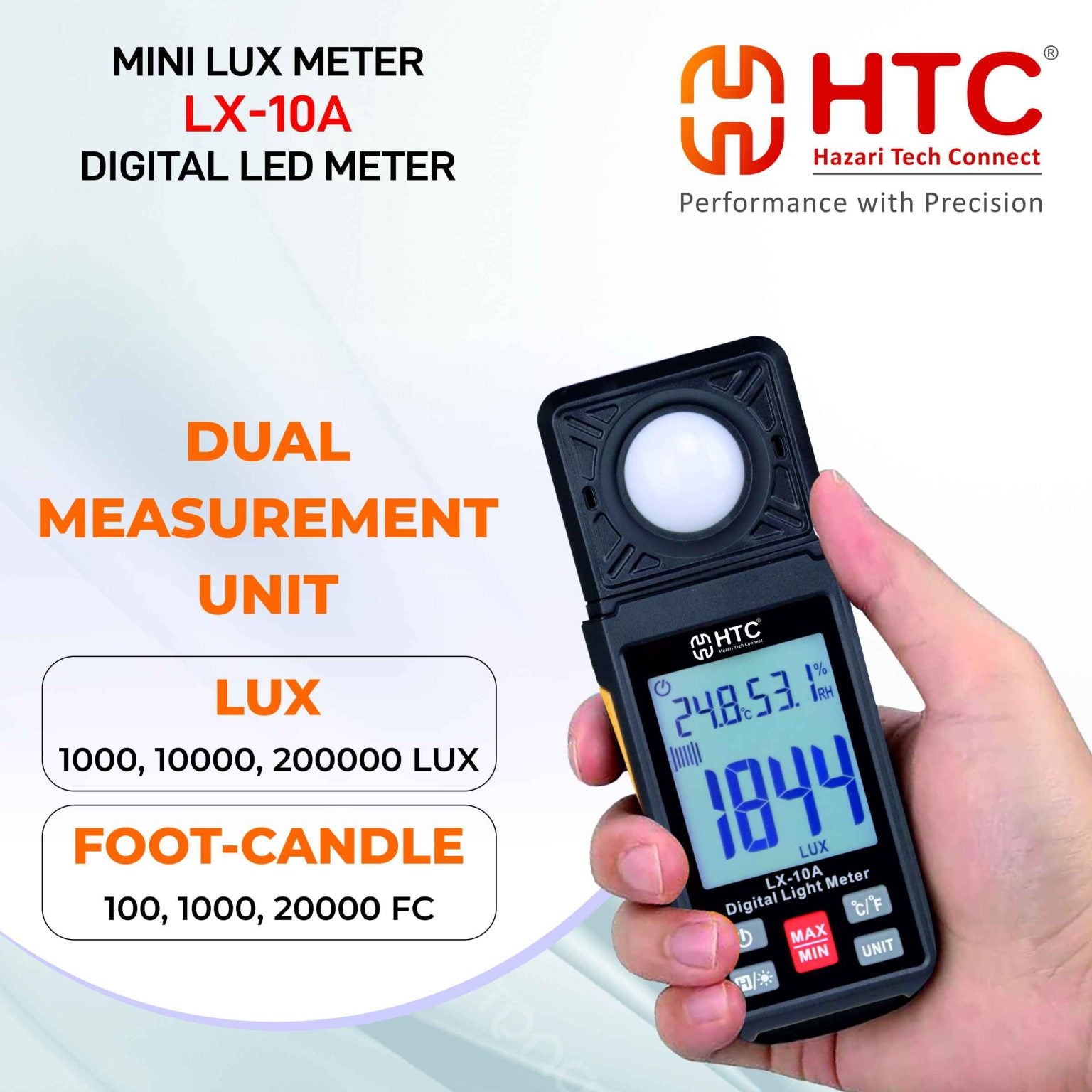

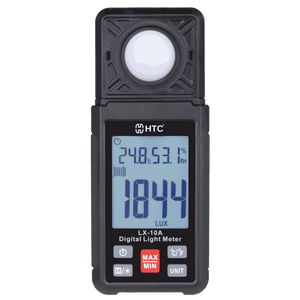

HTC LX-10A Mini Lux Meter
The HTC LX-10A Mini Lux Meter is a compact digital light-measuring instrument designed to measure illuminance in Lux (lx) and Foot-candle (FC). It uses a silicon photodiode with a spectral-response filter and is suitable for applications such as lighting installation, construction, solar-panel inspection and indoor farming.

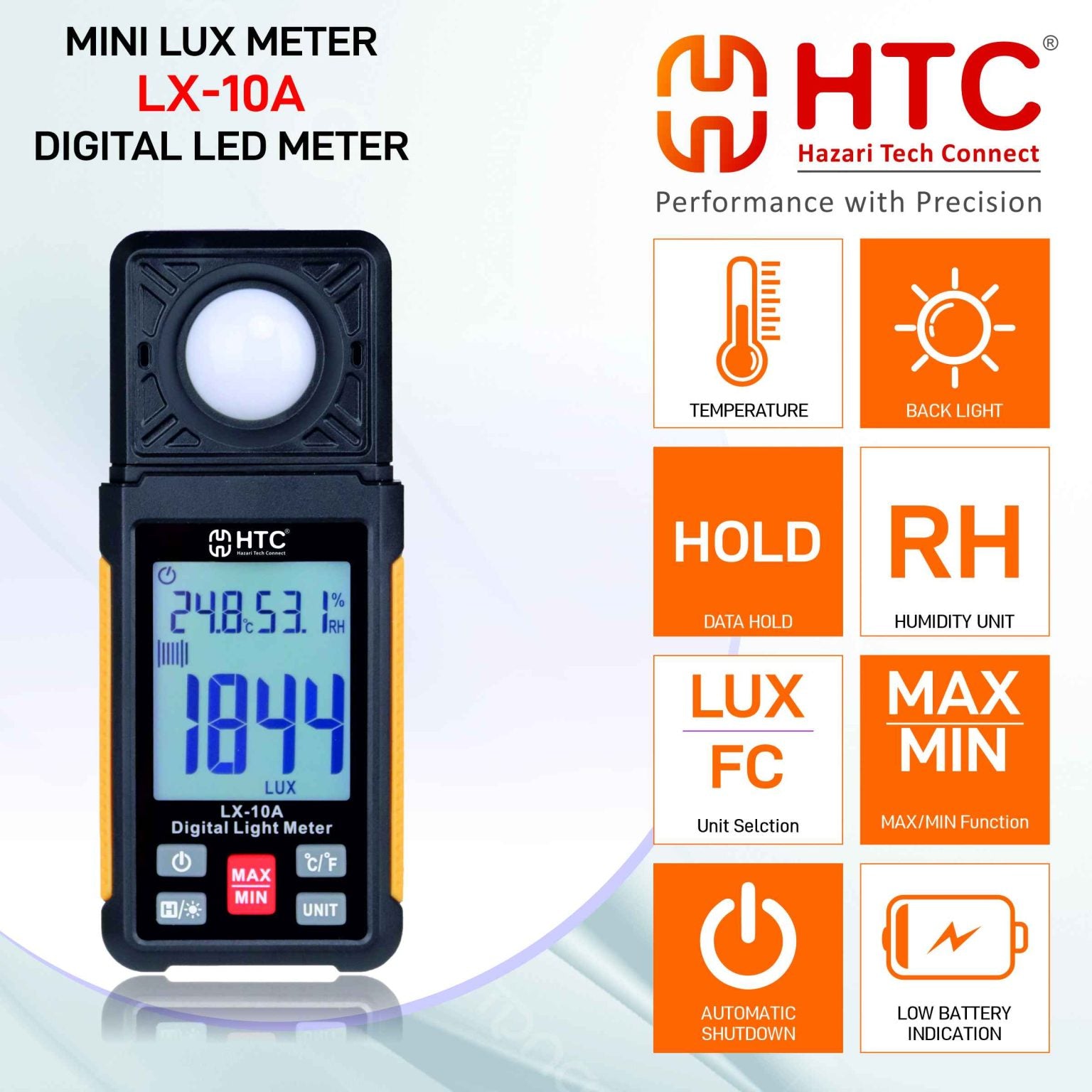

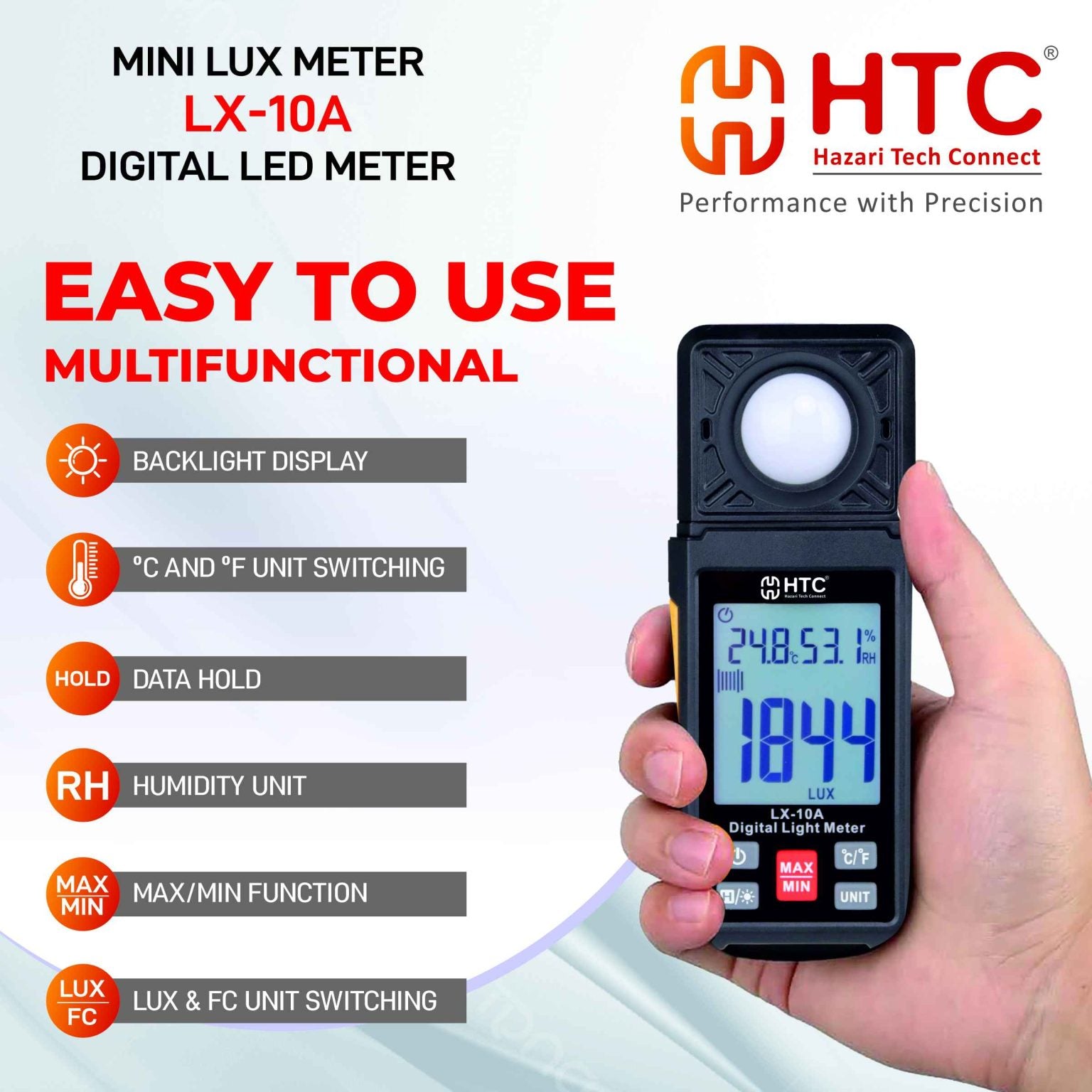

Key Features
- Digital Lux / light intensity measurement
- Measurement in Lux and Foot-candle
- Maximum measurement range up to 199,999–200,000 Lux
- Silicon photodiode sensor
- Spectral response range: 320–730 nm
- Data Hold function
- MAX/MIN function
- Backlit display
- Automatic power-off after approximately 10 minutes
- Compact mini design
- Easy-to-use controls
- Battery-powered operation
- Supplied with a soft carrying case and manual
Technical Specifications
Parameter Specification
Model : LX-10A
Brand : HTC
Instrument Type : Mini Digital Lux Meter
Measurement Parameter : Illuminance
Lux Range : 0–199,999 / approximately 200,000 Lux
Lux Ranges : 1,000 / 10,000 / 200,000 Lux
Lux Resolution : 10 Lux
FC Range : 100 / 1,000 / 20,000 FC
FC Resolution : 1 FC
Sensor : Silicon photodiode + spectral-response filter
Spectral Range : 320–730 nm
Accuracy : ±3% + 5 digits under specified 2854 K incandescent-lamp conditions
Data Hold : Yes
MAX/MIN : Yes
Backlight : Yes
Auto Power Off : Approx. 10 minutes
Power Supply : 3 × AAA 1.5 V batteries
Dimensions : Approx. 138 × 56 × 25 mm
Accessories : Manual, soft carrying case
Warranty : Typically 1 year
Published specifications differ slightly between HTC LX-10A listings—for example, some list 0–199,999 Lux and dimensions of 160 × 50 × 28 mm, while HTC-distributed catalogue data lists 0–200,000 Lux and 138 × 56 × 25 mm. For a product page, it is best to use the specifications matching the exact batch/version you are selling.
Measurement Functions
Lux Measurement:
The LX-10A measures illuminance, expressed in Lux. Lux represents the amount of luminous flux falling on a surface per unit area.
Foot-candle Measurement:
The meter can also display illumination in FC, making it useful for applications where measurements are specified in imperial units.
Data Hold:
The Data Hold function freezes the displayed reading, allowing the user to record the measurement without continuously watching the display.
MAX/MIN:
The MAX/MIN function allows the user to monitor the highest and lowest measured values during measurement.
Backlight:
The backlight improves readability when measurements are taken in relatively dark environments.
Automatic Power Off:
The instrument automatically switches off after approximately 10 minutes of inactivity to help conserve battery power.
Sensor
The LX-10A uses a silicon photodiode combined with a spectral-response filter. Its stated spectral range is approximately 320–730 nm, covering much of the visible-light region.

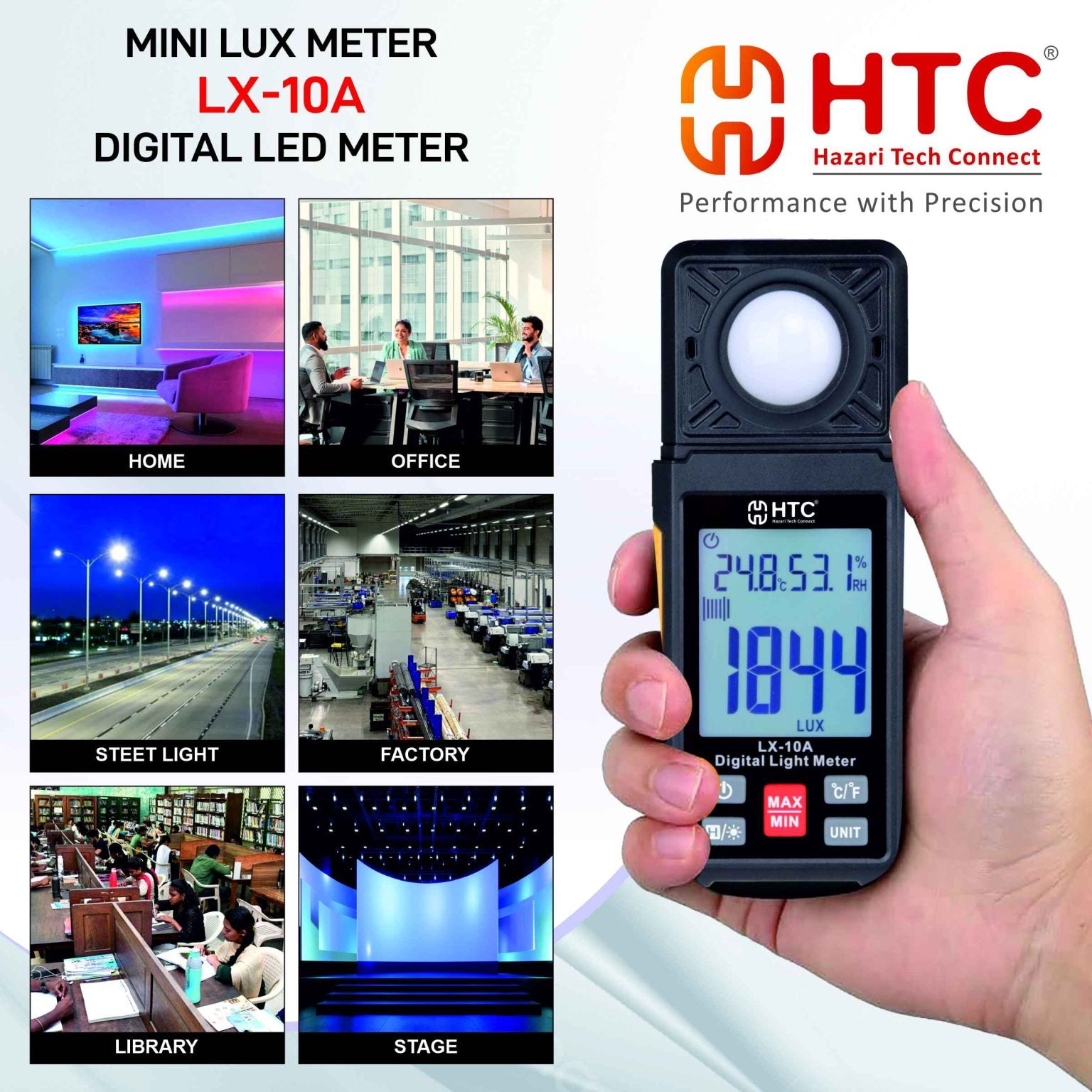

Applications
The HTC LX-10A can be used for:
- Indoor lighting inspection
- Office lighting measurements
- Classroom lighting checks
- Factory and workshop lighting
- Construction-site lighting assessment
- Solar-panel installation and inspection
- Indoor farming and plant-growth environments
- Commercial buildings
- Lighting installation and maintenance
- General illumination surveys
- Laboratory and technical applications
HTC-related product documentation specifically identifies construction, solar-panel applications, lighting installation and indoor farming among its uses.
Advantages
- Compact and portable: Easy to carry and use at different measurement locations.
- Wide measurement capability: Measures illumination up to approximately 200,000 Lux.
- Simple operation: Data Hold and MAX/MIN functions make measurements convenient.
- Dual units: Supports both Lux and FC.
- Low operating cost: Uses commonly available AAA batteries.
- Protective carrying case: Helps with transportation and storage.
- Versatile: Suitable for residential, commercial, industrial and agricultural lighting checks.
Package Contents
The standard package generally includes:
- HTC LX-10A Mini Lux Meter
- Soft carrying case
- User manual
The batteries may need to be confirmed separately according to the specific seller/package.
Product Description
HTC LX-10A Mini Lux Meter is a compact and reliable digital light meter designed for measuring illuminance in Lux and Foot-candle. With a measurement capability of up to approximately 200,000 Lux, a silicon photodiode sensor, 320–730 nm spectral response, Data Hold, MAX/MIN, backlight and automatic power-off functions, it provides a convenient solution for light-intensity measurement. Its portable design makes it suitable for lighting installation, construction, solar-panel applications, indoor farming, offices, commercial buildings and general illumination testing.
Description
HTC LX-10A Mini Lux Meter
The HTC LX-10A Mini Lux Meter is a compact digital light-measuring instrument designed to measure illuminance in Lux (lx) and Foot-candle (FC). It uses a silicon photodiode with a spectral-response filter and is suitable for applications such as lighting installation, construction, solar-panel inspection and indoor farming.
Key Features
- Digital Lux / light intensity measurement
- Measurement in Lux and Foot-candle
- Maximum measurement range up to 199,999–200,000 Lux
- Silicon photodiode sensor
- Spectral response range: 320–730 nm
- Data Hold function
- MAX/MIN function
- Backlit display
- Automatic power-off after approximately 10 minutes
- Compact mini design
- Easy-to-use controls
- Battery-powered operation
- Supplied with a soft carrying case and manual
Technical Specifications
Parameter Specification
Model : LX-10A
Brand : HTC
Instrument Type : Mini Digital Lux Meter
Measurement Parameter : Illuminance
Lux Range : 0–199,999 / approximately 200,000 Lux
Lux Ranges : 1,000 / 10,000 / 200,000 Lux
Lux Resolution : 10 Lux
FC Range : 100 / 1,000 / 20,000 FC
FC Resolution : 1 FC
Sensor : Silicon photodiode + spectral-response filter
Spectral Range : 320–730 nm
Accuracy : ±3% + 5 digits under specified 2854 K incandescent-lamp conditions
Data Hold : Yes
MAX/MIN : Yes
Backlight : Yes
Auto Power Off : Approx. 10 minutes
Power Supply : 3 × AAA 1.5 V batteries
Dimensions : Approx. 138 × 56 × 25 mm
Accessories : Manual, soft carrying case
Warranty : Typically 1 year
Published specifications differ slightly between HTC LX-10A listings—for example, some list 0–199,999 Lux and dimensions of 160 × 50 × 28 mm, while HTC-distributed catalogue data lists 0–200,000 Lux and 138 × 56 × 25 mm. For a product page, it is best to use the specifications matching the exact batch/version you are selling.
Measurement Functions
Lux Measurement:
The LX-10A measures illuminance, expressed in Lux. Lux represents the amount of luminous flux falling on a surface per unit area.
Foot-candle Measurement:
The meter can also display illumination in FC, making it useful for applications where measurements are specified in imperial units.
Data Hold:
The Data Hold function freezes the displayed reading, allowing the user to record the measurement without continuously watching the display.
MAX/MIN:
The MAX/MIN function allows the user to monitor the highest and lowest measured values during measurement.
Backlight:
The backlight improves readability when measurements are taken in relatively dark environments.
Automatic Power Off:
The instrument automatically switches off after approximately 10 minutes of inactivity to help conserve battery power.
Sensor
The LX-10A uses a silicon photodiode combined with a spectral-response filter. Its stated spectral range is approximately 320–730 nm, covering much of the visible-light region.
Applications
The HTC LX-10A can be used for:
- Indoor lighting inspection
- Office lighting measurements
- Classroom lighting checks
- Factory and workshop lighting
- Construction-site lighting assessment
- Solar-panel installation and inspection
- Indoor farming and plant-growth environments
- Commercial buildings
- Lighting installation and maintenance
- General illumination surveys
- Laboratory and technical applications
HTC-related product documentation specifically identifies construction, solar-panel applications, lighting installation and indoor farming among its uses.
Advantages
- Compact and portable: Easy to carry and use at different measurement locations.
- Wide measurement capability: Measures illumination up to approximately 200,000 Lux.
- Simple operation: Data Hold and MAX/MIN functions make measurements convenient.
- Dual units: Supports both Lux and FC.
- Low operating cost: Uses commonly available AAA batteries.
- Protective carrying case: Helps with transportation and storage.
- Versatile: Suitable for residential, commercial, industrial and agricultural lighting checks.
Package Contents
The standard package generally includes:
- HTC LX-10A Mini Lux Meter
- Soft carrying case
- User manual
The batteries may need to be confirmed separately according to the specific seller/package.
Product Description
HTC LX-10A Mini Lux Meter is a compact and reliable digital light meter designed for measuring illuminance in Lux and Foot-candle. With a measurement capability of up to approximately 200,000 Lux, a silicon photodiode sensor, 320–730 nm spectral response, Data Hold, MAX/MIN, backlight and automatic power-off functions, it provides a convenient solution for light-intensity measurement. Its portable design makes it suitable for lighting installation, construction, solar-panel applications, indoor farming, offices, commercial buildings and general illumination testing.
