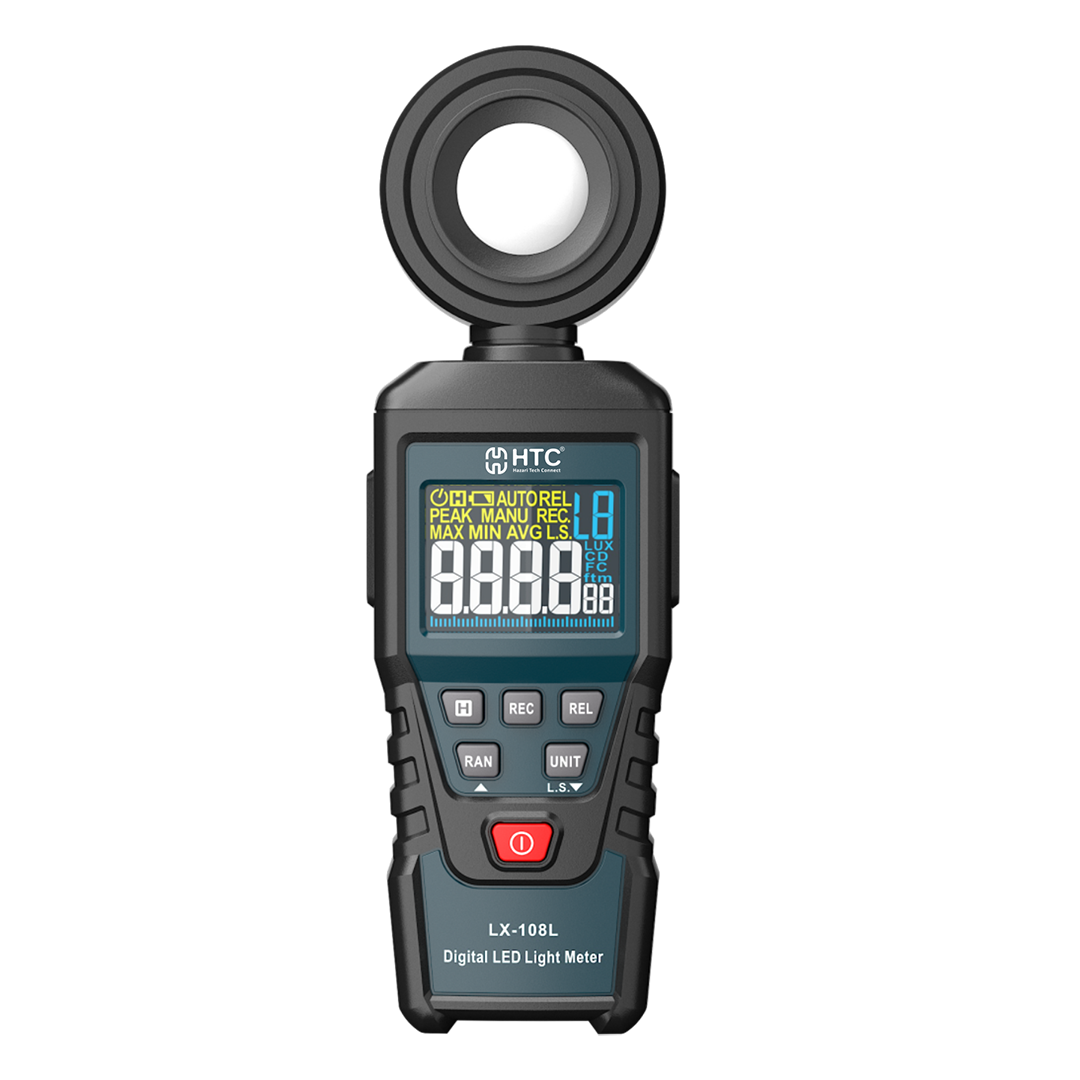

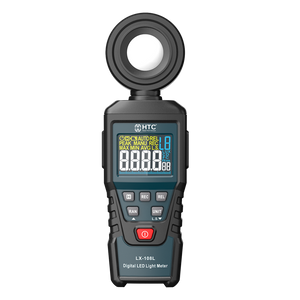

HTC LX-108L Digital LED Lux Meter

HTC LX-108L Digital LED Lux Meter

The HTC LX-108L Digital LED Lux Meter is a professional-grade illuminance (light intensity) meter designed to accurately measure light levels from LED lighting systems as well as conventional light sources. It features a 180° rotatable remote sensor, multiple LED light source correction modes, and a wide measurement range, making it ideal for lighting installations, industrial maintenance, laboratories, photography, agriculture, educational institutions, and workplace lighting inspections.

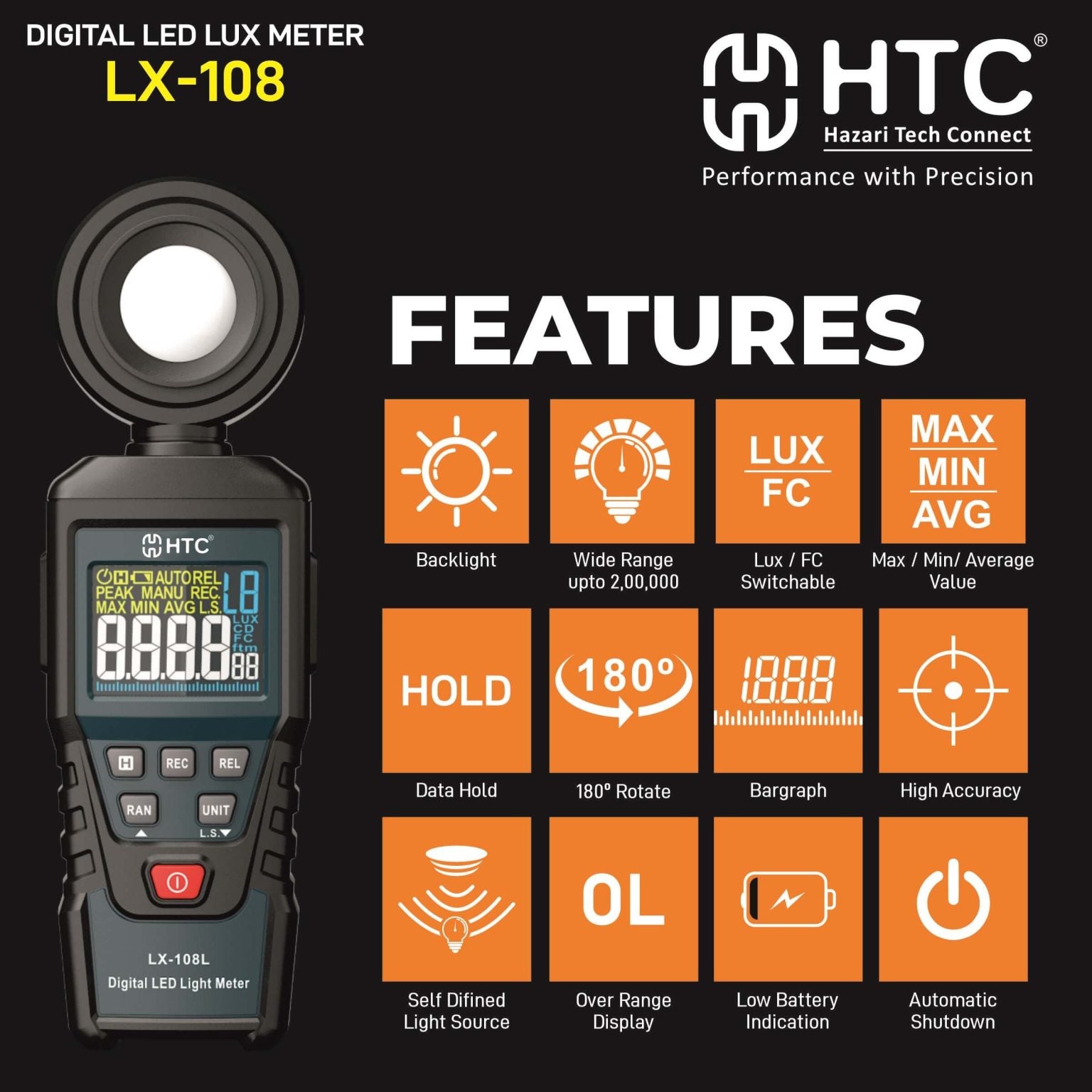

Key Features

• Measures Lux (lx) and Foot-Candle (Fc) units.
• Designed for LED and conventional lighting measurements.

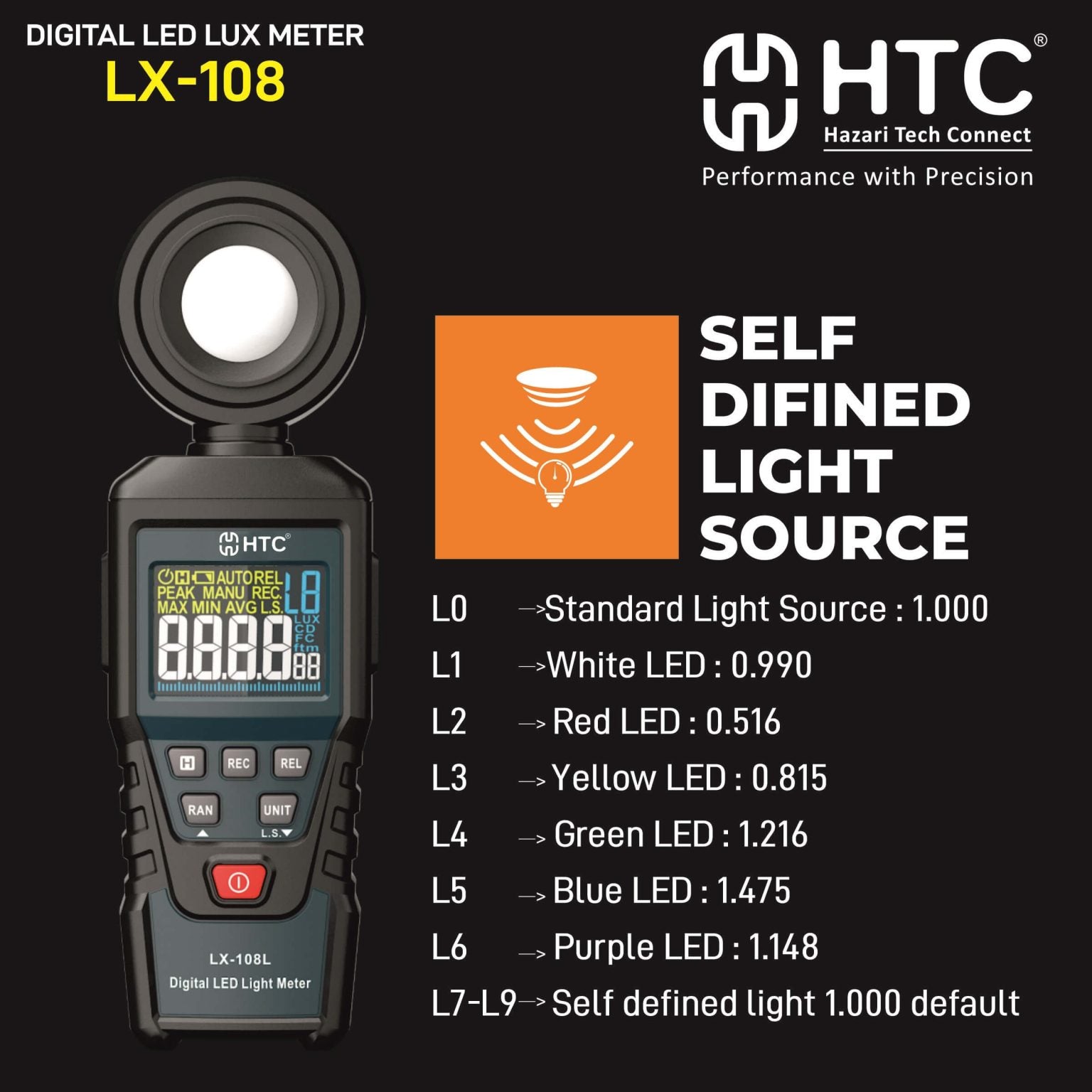

• Supports preset LED light sources:
• White LED
• Red LED
• Yellow LED
• Green LED
• Blue LED
• Purple LED
• User-defined light source coefficient for custom LED calibration.

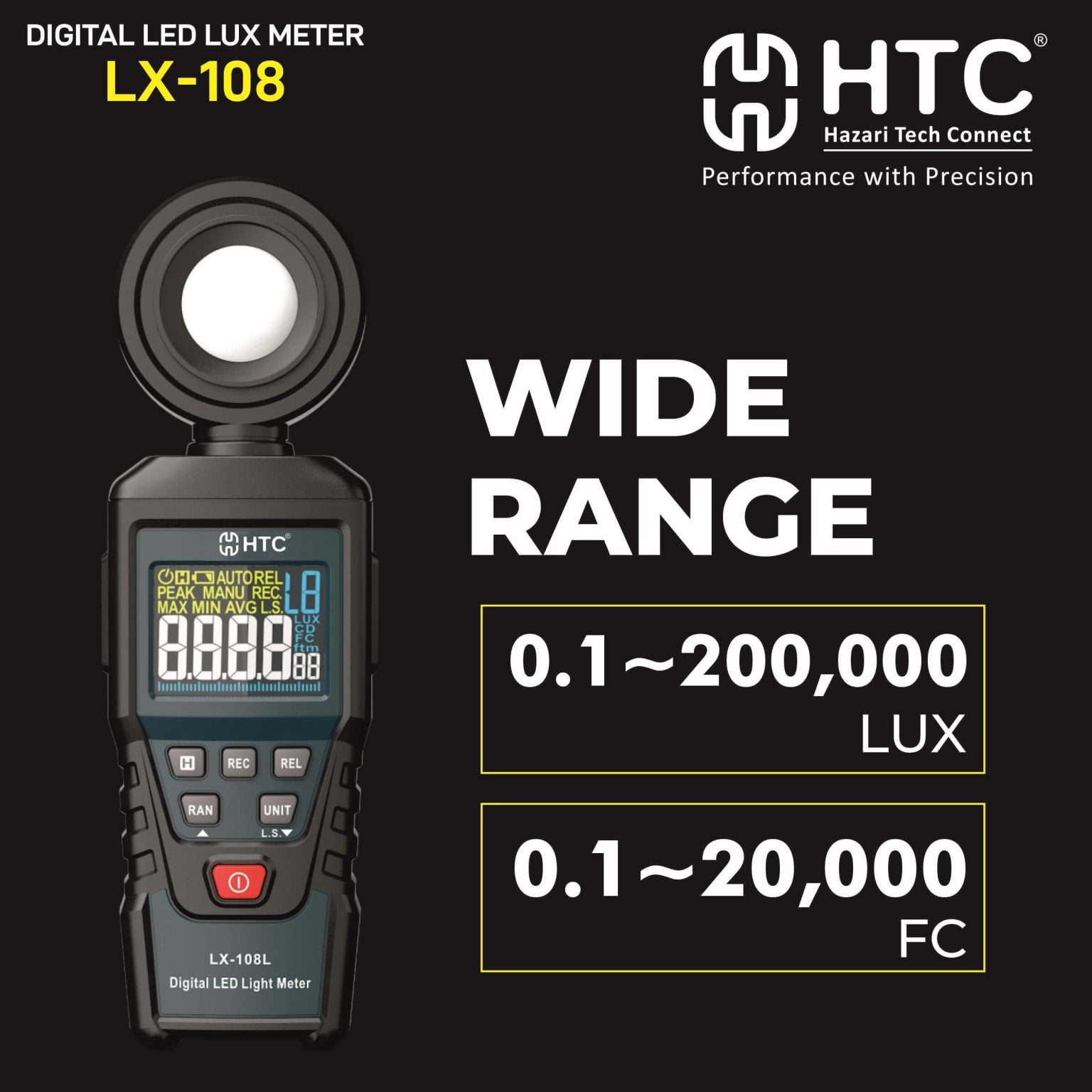

• Wide measuring range up to 200,000 Lux.

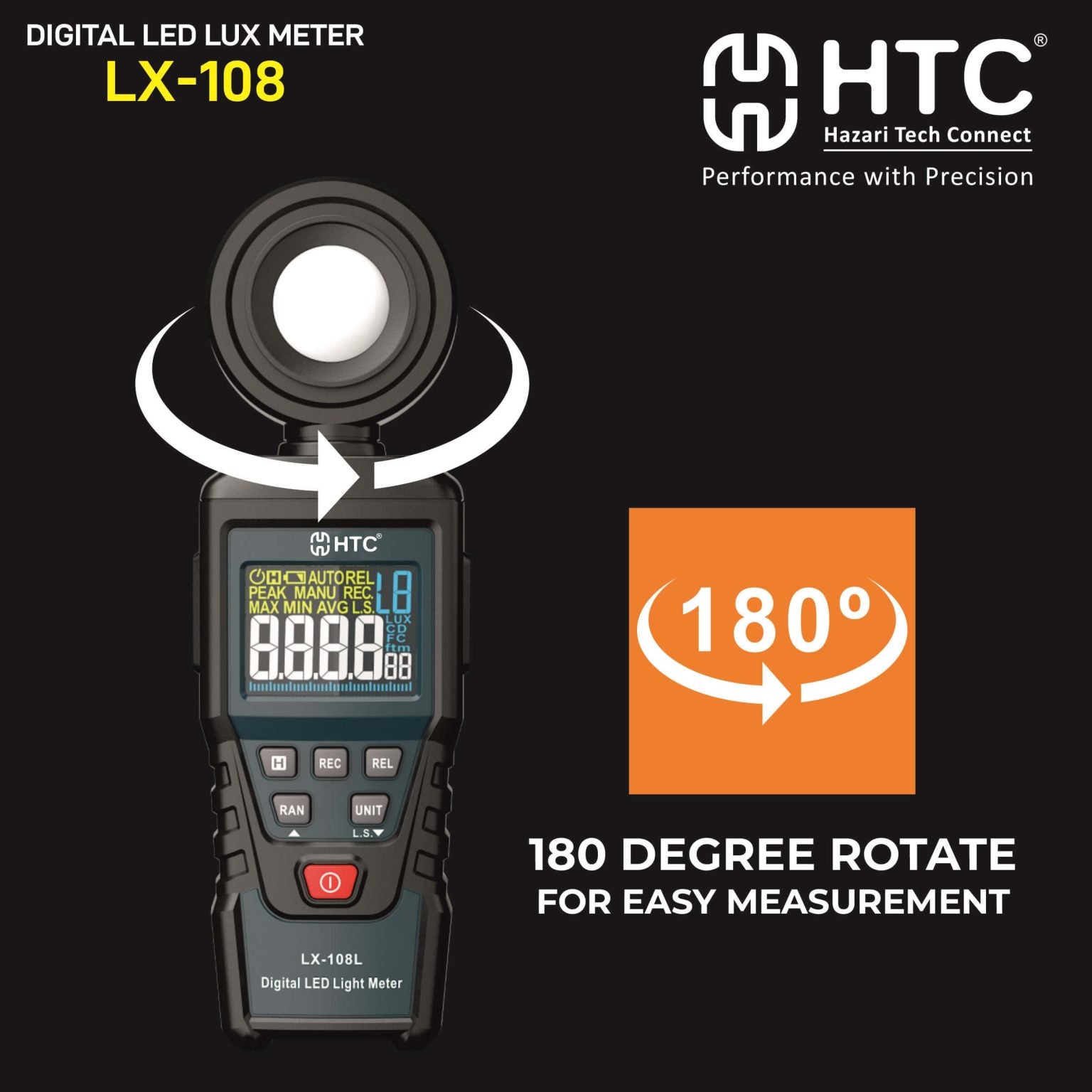

• 180° rotatable remote sensor for convenient measurements in difficult locations.
• Auto and Manual ranging.

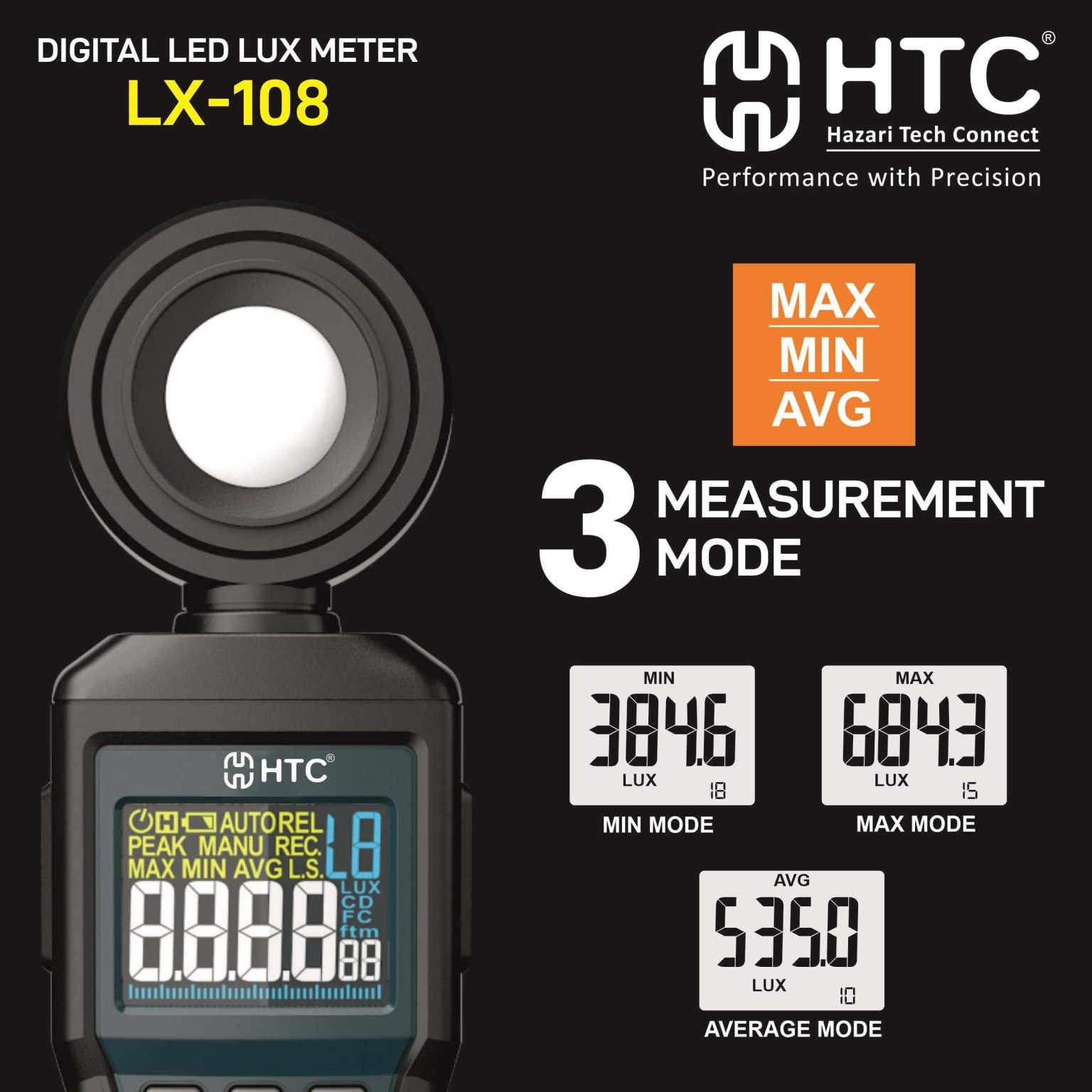

• MAX, MIN, and AVG measurement functions.
• Relative (REL) measurement mode.

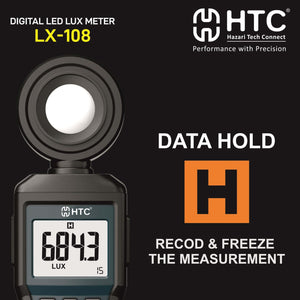

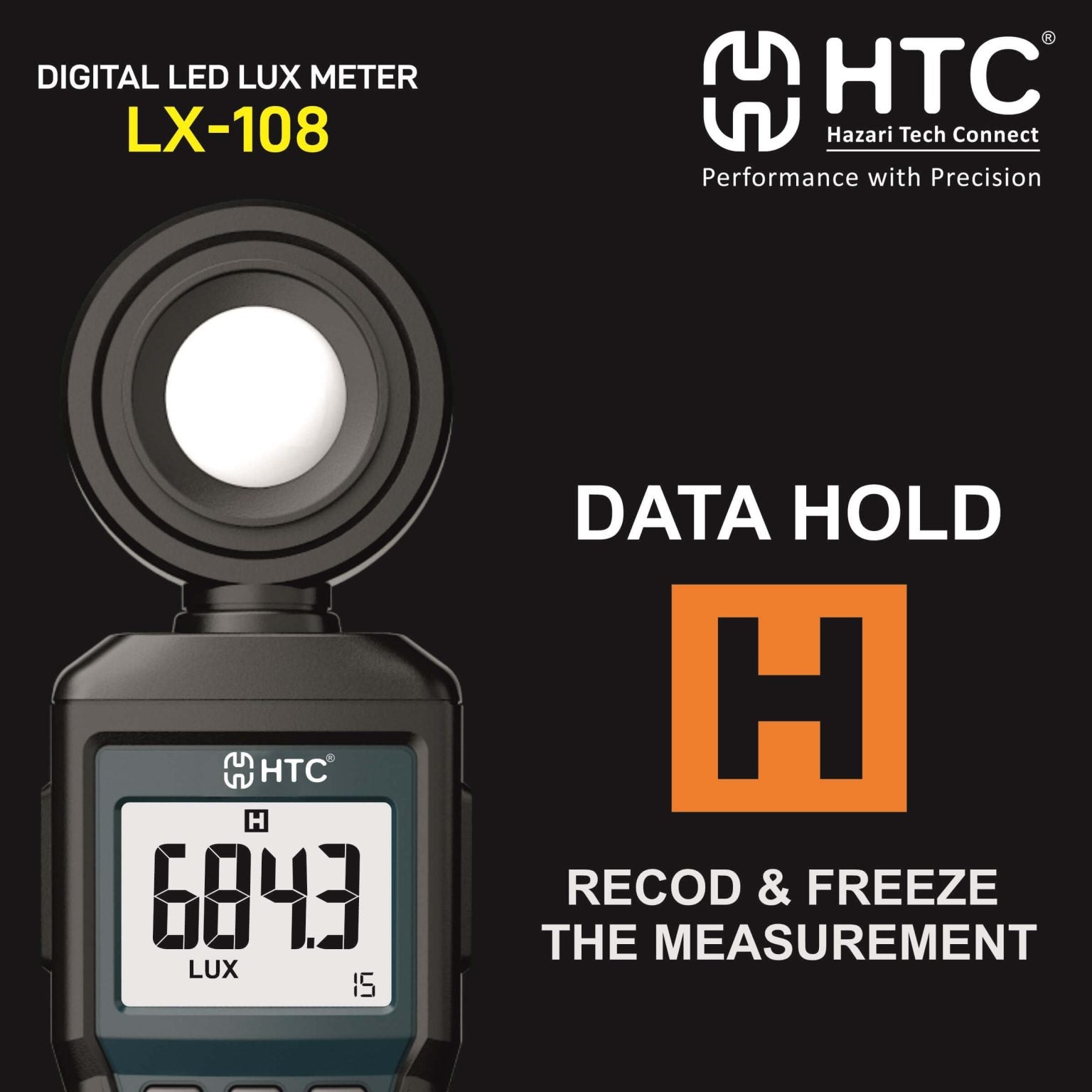

• Data Hold function.
• Large LCD display with analog bar graph.
• Automatic power-off after approximately 10 minutes.
• Low battery indication.
• Compact, lightweight, and ergonomic design.



Technical Specifications

Parameter  Specification

Measurement Units : Lux (lx), Foot-Candle (Fc)

Lux Range : 0 to 200,000 Lux

Foot-Candle Range : 0 to 20,000 Fc

Resolution : Up to 0.1 Lux

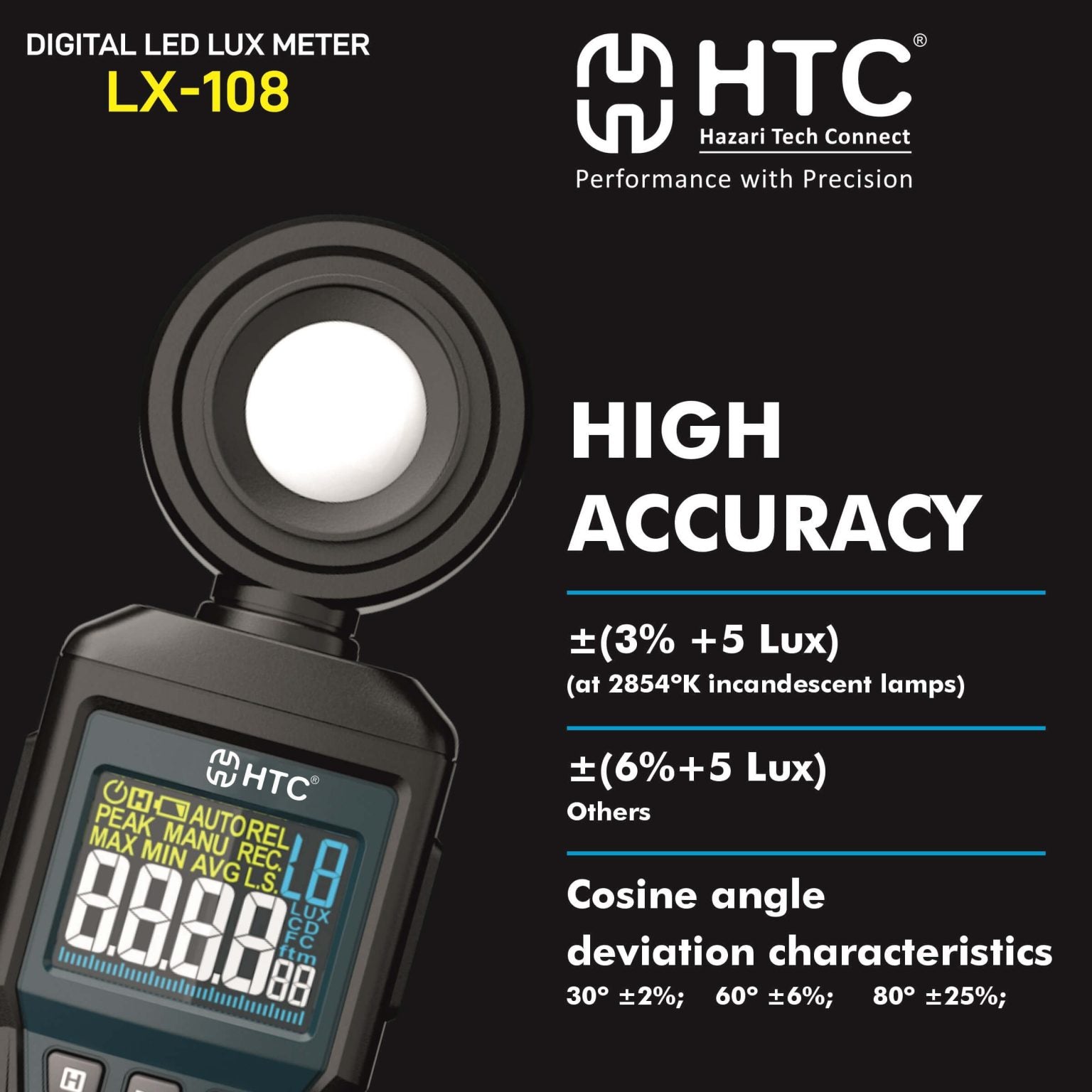

Accuracy : ±3% rdg ±0.5% FS (standard light source)

Spectral Response : 320–730 nm

Sensor : Silicon photodiode with optical filter

Display : LCD with Backlight & Bar Graph

Measurement Functions : MAX, MIN, AVG, REL, Data Hold

Light Source Modes : White, Red, Yellow, Green, Blue, Purple LEDs & Custom

Probe : 180° Rotatable Remote Sensor

Auto Power Off : Approx. 10 minutes

Power Supply: 3 × AAA Batteries

Operating Temperature : 0°C to 40°C

Storage Temperature : -10°C to 50°C

Applications

• LED lighting installation and maintenance
• Factory and workplace illumination testing
• Office and commercial lighting audits
• Photography and videography studios
• Greenhouses and horticulture
• Educational laboratories
• Museums and exhibition halls
• Hospitals and healthcare facilities
• Quality control and lighting research

Benefits

• Specifically optimized for accurate LED lighting measurements.
• Wide measuring range suitable for both low and high illumination environments.
• Rotatable sensor allows convenient measurements in confined or awkward spaces.
• Multiple LED correction modes improve measurement accuracy for different light sources.
• MAX/MIN/AVG and Relative modes simplify professional lighting analysis.
• Lightweight and portable design makes it ideal for field inspections.
• Reliable performance for industrial, commercial, and laboratory applications.

Package Contents

• HTC LX-108L Digital LED Lux Meter
• Soft Carrying Case
• 3 × AAA Batteries
• User Manual

The HTC LX-108L Digital LED Lux Meter is an advanced handheld light meter designed for professionals who require accurate illumination measurements for both LED and traditional lighting systems. Its dedicated LED correction modes, high measurement range, and professional analysis features make it an excellent choice for electricians, lighting engineers, facility managers, laboratory personnel, and quality control professionals.
