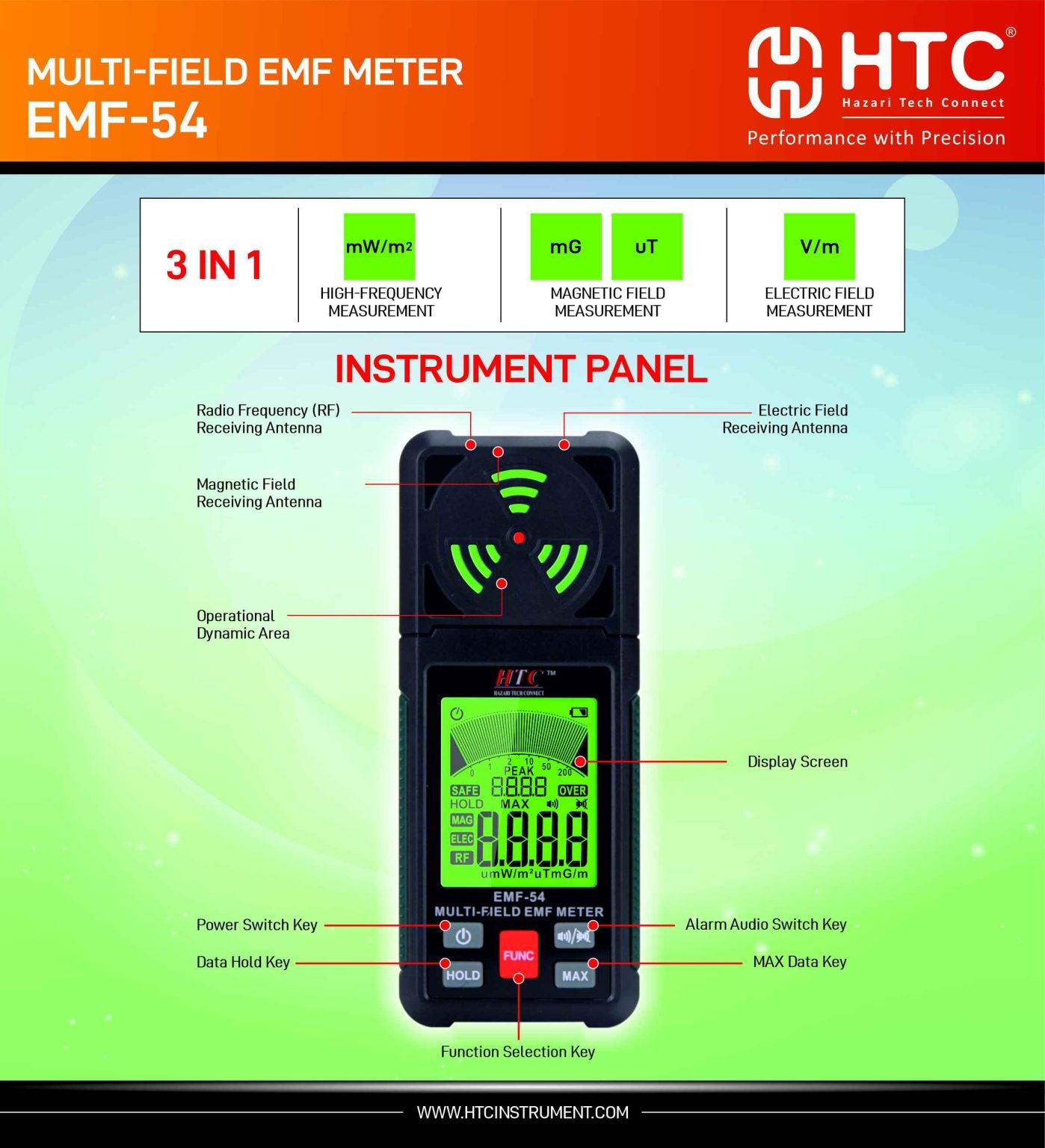

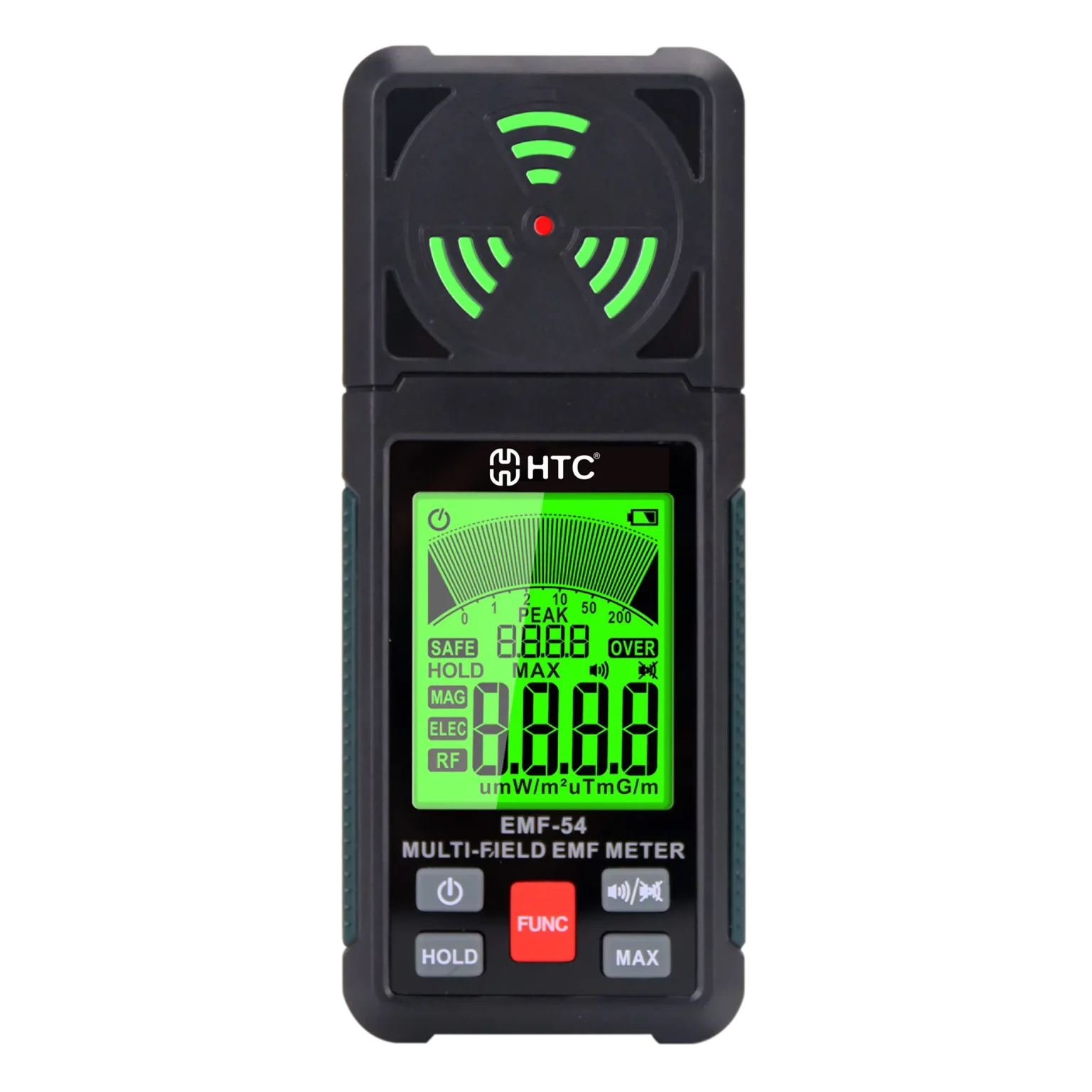

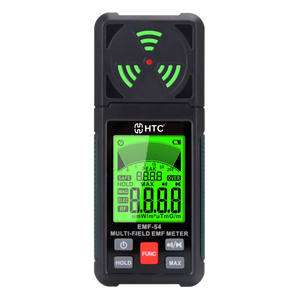

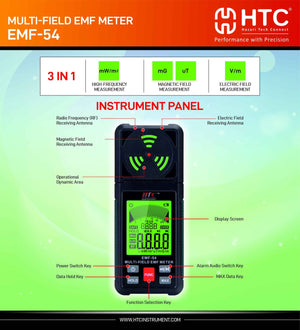

HTC EMF-54 Multi-Field EMF Meter

HTC EMF-54 Multi-Field EMF Meter

The HTC EMF-54 Multi-Field EMF Meter is a portable, multifunction electromagnetic field tester designed to measure magnetic fields, electric fields, and high-frequency (RF) electromagnetic radiation. It is ideal for professionals involved in electrical maintenance, telecommunications, industrial safety, environmental monitoring, and electromagnetic compatibility (EMC) inspections.

Key Features

• 3-in-1 EMF Measurement
• AC Magnetic Field
• AC Electric Field
• High-Frequency (RF/Microwave) Radiation
• 3-axis magnetic field sensor for accurate measurements in any orientation.
• High-precision sensor for reliable readings.
• Data Hold, Peak Hold, and Maximum Hold functions.
• Three-color backlit display (Green, Orange, Red) indicating field intensity.
• Audible buzzer alarm when readings exceed preset safety thresholds.
• Auto power-off function to conserve battery life.
• Compact, lightweight, and easy-to-carry design.
• Ideal for field inspections and laboratory applications.



Technical Specifications

Parameter  Specification

Magnetic Field Range : 0.01–200.0 μT / 0.1–2000 mG

Electric Field Range : 1–2000 V/m

RF Radiation Range : 0.001–100.0 mW/m²

Magnetic Frequency : 30–1000 Hz

Electric Frequency : 30–1000 Hz

RF Frequency : 50 MHz–3.5 GHz

Magnetic Resolution : 0.1 μT / 0.1 mG

Electric Resolution : 1 V/m

RF Resolution : 0.001 / 0.01 / 0.1 mW/m²

Display : LCD with 3-color backlight

Alarm : Visual & Audible

Power Supply : 3 × 1.5V AAA Batteries

Auto Power Off : Approximately 15 minutes

Operating Temperature : 0°C to 40°C

Dimensions : 142 × 58 × 28 mm

Weight : Approximately 200 g

Applications

• Electrical installation inspection
• Power line and transformer EMF surveys
• Mobile tower and RF radiation monitoring
• Wi-Fi router and wireless equipment testing
• Industrial equipment inspection
• Office and residential EMF assessments
• Laboratory and research applications
• EMC testing and troubleshooting

Package Contents

• HTC EMF-54 Multi-Field EMF Meter
• Soft Carrying Case
• User Manual

Benefits

• Measures three types of electromagnetic fields using a single instrument.
• Fast and accurate detection with high-sensitivity sensors.
• Easy-to-read display with color-coded safety indication.
• Audible alarm helps identify high EMF levels instantly.
• Portable design suitable for on-site inspections.
• User-friendly interface requiring minimal training.

Typical Industries

• Electrical & Electronics
• Telecommunications
• Industrial Maintenance
• Environmental Monitoring
• Research Laboratories
• Educational Institutions
• Building Inspection
• Quality Control

The HTC EMF-54 Multi-Field EMF Meter is a versatile and reliable instrument for professionals who need comprehensive EMF monitoring. With its ability to measure magnetic fields, electric fields, and RF radiation in one compact device, it is well suited for electrical safety inspections, electromagnetic environment assessments, and industrial maintenance applications.
