HTC Easy Log Temperature & Humidity Data Logger | USB Temperature & RH Recorder | 32,700 Readings | -40°C to +70°C | 0–100% RH | LCD Display

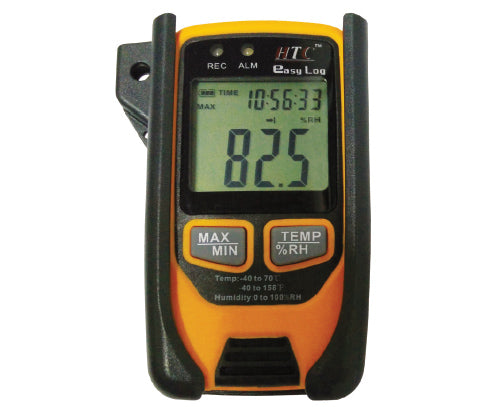

HTC Easy Log Temperature & Humidity Data Logger

The HTC Easy Log is a compact USB-enabled data logger designed for continuous recording of temperature and relative humidity. It can store tens of thousands of measurements and transfer the recorded data to a computer for analysis.

Key Features

• Measures temperature and relative humidity simultaneously
• Memory capacity of up to 32,700 readings
• Temperature range: -40°C to +70°C
• Humidity range: 0–100% RH
• Programmable recording interval from 1 second to 24 hours
• Built-in LCD display
• Separate REC and Alarm LED indicators
• User-programmable high/low alarm limits
• USB interface for downloading recorded data
• PC software for viewing data in graphical and text formats
• MAX/MIN recording functions
• °C/°F selection
• Long battery life of more than 3 years under ideal conditions
• Compact portable design
• Supplied with a carrying case and security lock on applicable packages

Technical Specifications

Parameter  Specification

Model : Easy Log

Brand : HTC

Instrument Type : Temperature & Humidity Data Logger

Temperature Range : -40°C to +70°C

Temperature Accuracy : ±1.0°C from -40°C to +40°C; ±2.0°C from +40°C to +70°C

Humidity Range : 0–100% RH

Humidity Accuracy : ±3% RH from 35–80% RH; <±5% RH from 0–35% and 80–100% RH

Temperature Resolution : 0.1°C

Humidity Resolution : 0.1% RH

Memory : 32,000 readings / up to 32,700 depending on specification

Memory Allocation : Approximately 16,000 temperature + 16,000 humidity readings

Sampling Interval : 1 second to 24 hours

Display : LCD

Computer Interface : USB

Software : PC analysis software

Power Supply : 1 × 3.6 V lithium battery

Battery Life : More than 3 years under ideal conditions

Dimensions : Approximately 94.8 × 51.4 × 29.5 mm

Channels : Dual: temperature + humidity

The user manual specifies 32,000 readings, while several current listings describe the capacity as 32,700; this appears to reflect different published specifications/versions, so 32,000+ readings is the safer website description.

Data Logging

The Easy Log allows the user to select the measurement interval according to the application. Recording can be configured from once every second to once every 24 hours. This makes it suitable for both short-term investigations and long-term environmental monitoring.

The logger can operate in different recording modes. When the memory becomes full, the selected mode can either stop recording or overwrite older readings with newer measurements.

Alarm Function

High and low alarm thresholds can be configured for temperature and humidity. When a measured value exceeds a programmed limit, the alarm indicator provides a visual warning. Some versions also provide an alarm output connection.

PC & USB Software

Recorded measurements can be transferred to a computer through the USB interface. The accompanying software allows users to:

• Download recorded measurements
• View temperature and humidity graphs
• View readings in text/data-list format
• Examine date and time information
• Save recorded datasets
• Export data to Excel
• Review logger settings and measurement parameters

Display Information

The LCD can indicate:

• Current temperature
• Relative humidity
• Date and time
• °C/°F
• Battery status
• Recording status
• MAX/MIN status
• Memory-full status
• Recording mode
• Alarm status

Applications

The HTC Easy Log is suitable for monitoring environmental conditions in:

• Pharmaceutical storage
• Cold-chain transportation
• Warehouses and storage rooms
• Laboratories
• Refrigerators and temperature-controlled areas
• Food and agricultural storage
• Blood banks and healthcare storage
• Greenhouses
• Telecommunication rooms
• Libraries and archives
• Museums
• Offices and buildings
• Logistics and transportation

It has also been used for recording temperature and humidity in scientific field environments.

Standard Accessories

Depending on the particular package, the standard accessories include:

• HTC Easy Log data logger
• 3.6 V lithium battery
• USB cable
• PC analysis software
• Carrying/holding case
• Safety/combination lock
• User documentation

Product Advantages

HTC Easy Log is particularly useful when environmental conditions need to be recorded over an extended period rather than simply viewed at the moment of measurement. Its large memory, adjustable sampling interval, alarm system and USB data transfer make it suitable for documentation, quality control and environmental monitoring.

Website-Ready Product Description

HTC Easy Log Temperature & Humidity Data Logger is a professional environmental monitoring instrument designed for continuous measurement and recording of temperature and relative humidity. It measures temperatures from -40°C to +70°C and humidity from 0 to 100% RH, with resolutions of 0.1°C and 0.1% RH. With more than 32,000 readings of memory, selectable recording intervals from 1 second to 24 hours, programmable high/low alarms, LCD indication and USB connectivity, the Easy Log provides a convenient solution for long-term environmental monitoring. Its PC software enables users to download, analyse, graph and export recorded data for documentation and reporting.
