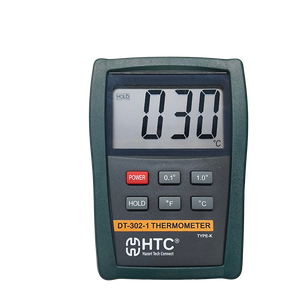

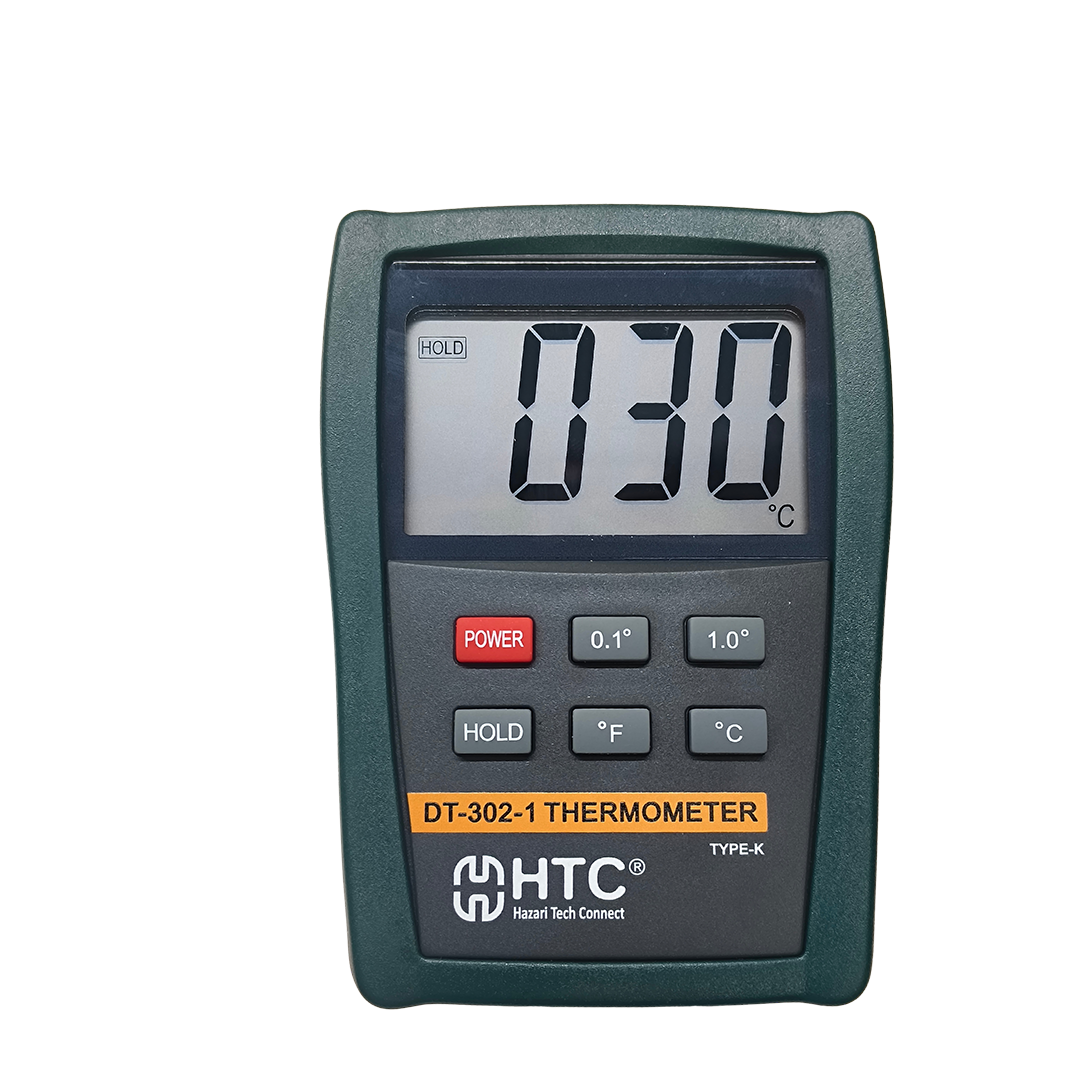

HTC DT-302-1 Digital Thermometer

HTC DT-302-1 Digital Thermometer

The HTC DT-302-1 Digital Thermometer is a high-precision single-input temperature measuring instrument designed for industrial, laboratory, HVAC, food processing, and quality control applications. Compatible with K-type thermocouple probes, it provides fast, accurate, and reliable temperature measurements over a wide operating range. Its large LCD display, data hold function, and compact handheld design make it ideal for both field and laboratory use.

Key Features

• Wide temperature measurement range from -50°C to 1300°C (depending on the K-type thermocouple used).
• High resolution of 0.1°C/0.1°F for temperatures up to 199.9°C/199.9°F.
• Large, easy-to-read LCD display for clear visibility.
• Supports both °C and °F temperature units.
• Data Hold function to freeze readings for convenient recording.
• High measurement stability and excellent accuracy.
• Low battery indication for uninterrupted operation.
• Auto power-off function helps conserve battery life.
• Lightweight and ergonomic design for comfortable handheld use.
• Compatible with standard K-type thermocouple probes for versatile temperature measurement.



Technical Specifications

Specification  Details

Model : HTC DT-302-1

Display : 3½-digit LCD

Sensor Type :K-Type Thermocouple

Measurement Range : -50°C to 1300°C*

Resolution : 0.1°C / 0.1°F (up to 199.9°C/°F)

Accuracy : ±0.2% of reading + 1 digit (up to 199.9°C)

Sampling Rate : Approx. 2.5 readings/second

Temperature Units : °C / °F

Power Supply : 9V Battery

Dimensions : 130 × 95 × 28 mm

Weight : Approx. 240 g (including battery)

*The maximum measurable temperature depends on the thermocouple probe connected.

Applications

• Industrial process monitoring
• HVAC system maintenance
• Laboratory testing
• Food processing and catering
• Electrical equipment inspection
• Manufacturing and quality control
• Educational and research laboratories
• General temperature measurement applications

Standard Accessories

• TP01 K-Type Temperature Probe
• 9V Battery
• User Manual

Why Choose HTC DT-302-1?

The HTC DT-302-1 combines accuracy, reliability, and ease of use in a compact handheld instrument. Its broad measurement range, compatibility with K-type thermocouples, and durable construction make it an excellent choice for professionals who require dependable temperature measurements across a wide variety of industrial and laboratory environments.
