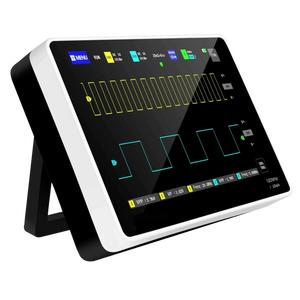

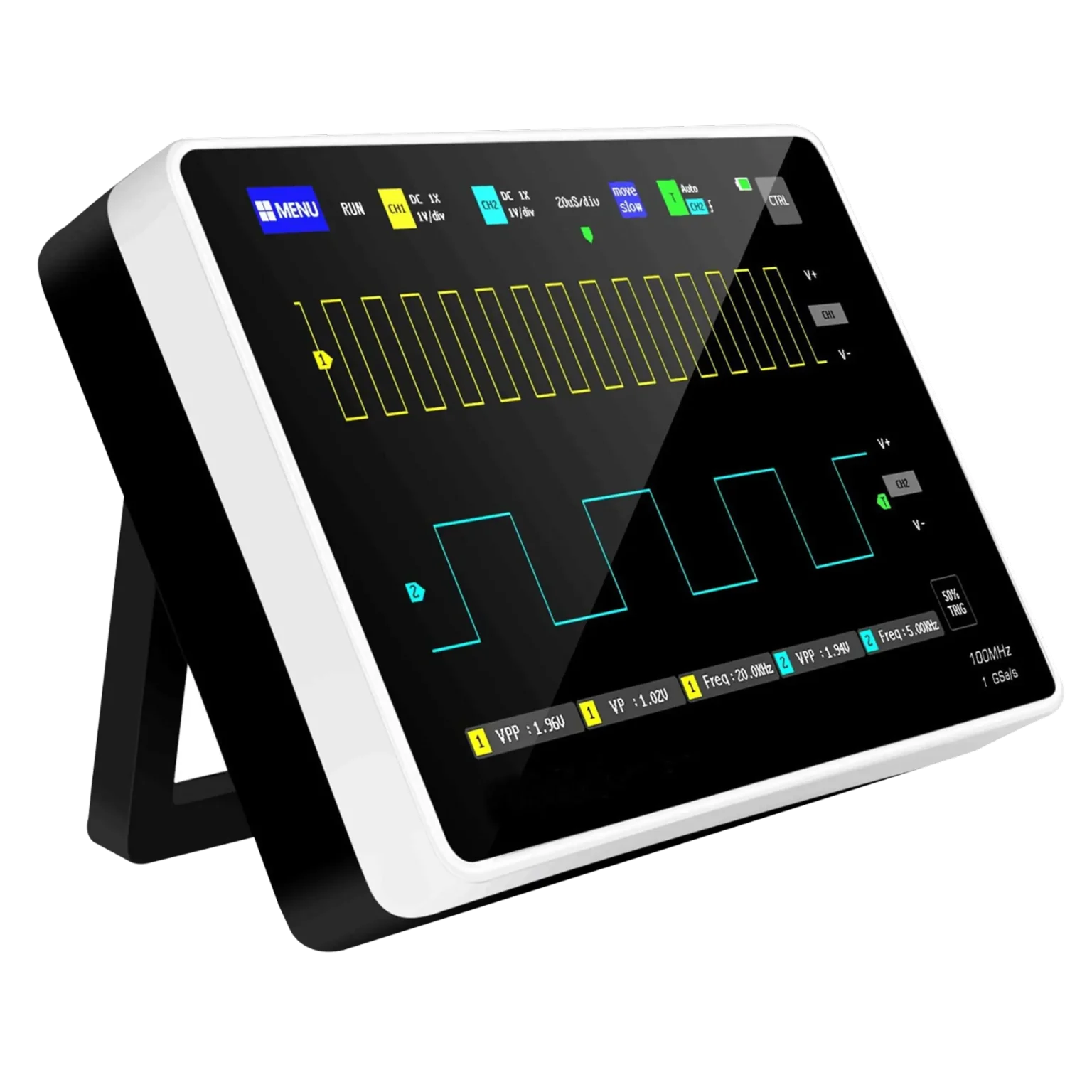

HTC DSO-20100S Digital Storage Oscilloscope

HTC DSO-20100S Digital Storage Oscilloscope

The HTC DSO-20100S Digital Storage Oscilloscope is a compact, high-performance 100 MHz handheld digital oscilloscope designed for engineers, technicians, educators, and electronics enthusiasts. Featuring a 1 GSa/s real-time sampling rate, a 7-inch high-resolution display, built-in waveform storage, FFT analysis, and a rechargeable lithium battery, it delivers professional-grade signal analysis for laboratory, industrial, educational, and field service applications. Its ultra-portable design and intuitive one-button functions make it an ideal solution for on-site diagnostics and electronic troubleshooting.

Key Features

• 100 MHz analog bandwidth for accurate waveform analysis.
• 1 GSa/s real-time sampling rate for precise signal capture.
• Large 7-inch TFT LCD display with 800 × 480 resolution.
• One-button AUTO setup for quick waveform optimization.
• Built-in 1 GB internal storage for waveform saving and screenshots.
• FFT (Fast Fourier Transform) function for frequency spectrum analysis.
• Waveform freeze (Pause) function for detailed inspection.
• Adjustable screen brightness and background grid brightness.
• Intelligent anti-burn input protection.
• Supports AC/DC coupling.
• Multiple trigger modes: Auto, Normal, and Single.
• Built-in 6000 mAh rechargeable lithium battery providing up to 4 hours of continuous operation.
• Slim, lightweight, and portable design for field applications.



Technical Specifications

Specification  Details

Model : HTC DSO-20100S

Oscilloscope Type : Digital Storage Oscilloscope

Analog Bandwidth : 100 MHz (10X Probe), 5 MHz (1X Probe)

Real-Time Sampling Rate : 1 GSa/s

Display : 7-inch TFT LCD

Display Resolution : 800 × 480 Pixels

Vertical Sensitivity : 50 mV/div to 500 V/div

Horizontal Time Base : 50 s/div to 10 ns/div

Trigger Modes : Auto, Normal, Single

Trigger Edge : Rising & Falling

Coupling : AC / DC

Input Resistance : 1 MΩ

Maximum Input Voltage : 40 V (1X Probe), 400 V (10X Probe)

Waveform Storage : Built-in 1 GB Memory

Analysis Function : FFT Spectrum Analysis

Power Supply : Built-in 6000 mAh Rechargeable Lithium Battery

Battery Runtime : Up to 4 Hours

Operating Features : Auto Setup, Waveform Freeze, Screenshot Capture

Applications

• Electronic circuit design and debugging
• Industrial equipment maintenance
• Embedded systems development
• Power electronics testing
• Automotive electronics diagnostics
• Educational laboratories and training institutes
• Research and development
• Field service and on-site troubleshooting
• Communication signal analysis

Standard Accessories

• 10X Oscilloscope Probe
• USB Charging Cable
• Rechargeable Lithium Battery (Built-in)
• User Manual
• Protective Carrying Case (package dependent)

Why Choose HTC DSO-20100S?

The HTC DSO-20100S combines the performance of a bench-top oscilloscope with the convenience of a portable handheld device. With 100 MHz bandwidth, 1 GSa/s sampling, FFT analysis, 1 GB internal waveform storage, and a long-lasting rechargeable battery, it provides reliable and accurate signal analysis for professionals working in electronics, industrial maintenance, education, and research. Its user-friendly interface and portable design make it an excellent choice for both laboratory and field applications.
