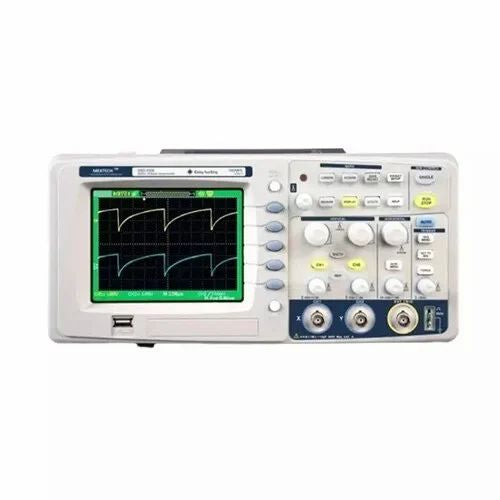

HTC DSO-10100S Digital Storage Oscilloscope | 100 MHz Bandwidth | 2 Channel | 1 GSa/s Real-Time Sampling | Built-in Signal Generator | 7-Inch LCD | 1 GB Storage
HTC DSO-10100S 100 MHz Digital Storage Oscilloscope
The HTC DSO-10100S is a 2-channel, 100 MHz digital storage oscilloscope (DSO) designed for observing, measuring, storing, and analyzing electrical waveforms. It also includes a built-in signal generator, USB connectivity, automatic measurements, and internal storage for screenshots and waveform data.
Key Features
- 100 MHz bandwidth
- 2 independent channels
- Maximum real-time sampling rate of 1 GSa/s
- Built-in signal generator
- 7-inch LCD display
- Vertical sensitivity from 50 mV/div to 500 V/div
- Horizontal time base from 50 s/div to 10 ns/div
- Automatic waveform measurements
- Cursor measurement function
- AUTO waveform setup
- Single, Normal and Auto trigger modes
- Rising-edge and falling-edge triggering
- AC/DC coupling
- Waveform freeze/STOP function
- Built-in 1 GB storage
- Storage for up to 1,000 screenshots and 1,000 sets of waveform data
- USB interface
- One-button waveform storage and screenshot function
- Adjustable screen and grid brightness
Technical Specifications
Parameter Specification
Model : DSO-10100S
Brand : HTC
Type : Digital Storage Oscilloscope
Bandwidth : 100 MHz
Channels : 2
Maximum Real-Time Sampling Rate : 1 GSa/s
Display : 7-inch LCD
Vertical Sensitivity : 50 mV/div – 500 V/div
Horizontal Time Base : 50 s/div – 10 ns/div
Trigger Modes : Auto / Normal / Single
Trigger Edge : Rising / Falling
Coupling : AC / DC
Internal Storage : 1 GB
Screenshot Storage : Up to 1,000
Waveform Storage : Up to 1,000 sets
Interface : USB
Power Supply : 100–240 V AC
Frequency : 45–440 Hz
Dimensions : Approx. 310 × 145 × 70 mm
Probe : 2 × 100 MHz probes
Country of Origin : India
Published listings confirm the 100 MHz bandwidth, two channels, 1 GSa/s maximum real-time sampling and the stated vertical/time-base ranges.
Automatic Measurements
The DSO-10100S can automatically calculate a range of waveform parameters, including:
- Peak value
- Amplitude
- Maximum value
- Minimum value
- Top value
- Bottom value
- Mean/average value
- RMS
- Frequency
- Period
- Rise time
- Fall time
- Positive pulse width
- Negative pulse width
- Positive duty cycle
- Negative duty cycle
Cursor Measurement
The cursor function allows users to manually examine waveform characteristics such as:
- Voltage difference
- Time difference
- Frequency/period relationships
This is useful when a specific point or interval on a waveform needs to be examined rather than relying only on automatic measurements.
Built-in Signal Generator
A notable feature of the DSO-10100S is its oscilloscope + signal-generator combination. This allows it to be used not only for observing signals but also for generating test signals for electronic-circuit experiments.
Triggering
The oscilloscope provides Auto, Normal and Single trigger modes. It also supports rising-edge and falling-edge triggering, allowing users to stabilize and capture repetitive or one-time waveform events.
Storage & USB
The built-in 1 GB storage can accommodate up to approximately 1,000 screen-capture images and 1,000 groups of waveform data. The USB interface allows data to be transferred between the oscilloscope and a computer.
Applications
The HTC DSO-10100S is suitable for:
- Electronics laboratories
- Educational institutions
- Circuit testing
- Electronic troubleshooting
- Research and development
- Production-line testing
- PCB and component testing
- Signal analysis
- Power-supply testing
- Communication/electronic equipment testing
- General maintenance and servicing
Package Contents
A typical package includes:
- 1 × HTC DSO-10100S Oscilloscope
- 2 × 100 MHz Oscilloscope Probes
- USB adapter/cable
- Power cable
- User manual
The exact accessories can vary by seller/package.
Product Description
HTC DSO-10100S 100 MHz Digital Storage Oscilloscope is a versatile 2-channel oscilloscope designed for accurate observation, measurement and analysis of electrical signals. With 100 MHz bandwidth, up to 1 GSa/s real-time sampling, a 7-inch LCD, 50 mV/div–500 V/div vertical sensitivity and 50 s/div–10 ns/div time base, it provides flexible waveform analysis for electronics testing and laboratory applications. The instrument features automatic measurements, cursor measurement, multiple trigger modes, AC/DC coupling, built-in 1 GB storage, USB connectivity and a built-in signal generator. It can store up to 1,000 screenshots and 1,000 sets of waveform data, making it suitable for educational, industrial, research and electronic troubleshooting applications.
Description
HTC DSO-10100S 100 MHz Digital Storage Oscilloscope
The HTC DSO-10100S is a 2-channel, 100 MHz digital storage oscilloscope (DSO) designed for observing, measuring, storing, and analyzing electrical waveforms. It also includes a built-in signal generator, USB connectivity, automatic measurements, and internal storage for screenshots and waveform data.
Key Features
- 100 MHz bandwidth
- 2 independent channels
- Maximum real-time sampling rate of 1 GSa/s
- Built-in signal generator
- 7-inch LCD display
- Vertical sensitivity from 50 mV/div to 500 V/div
- Horizontal time base from 50 s/div to 10 ns/div
- Automatic waveform measurements
- Cursor measurement function
- AUTO waveform setup
- Single, Normal and Auto trigger modes
- Rising-edge and falling-edge triggering
- AC/DC coupling
- Waveform freeze/STOP function
- Built-in 1 GB storage
- Storage for up to 1,000 screenshots and 1,000 sets of waveform data
- USB interface
- One-button waveform storage and screenshot function
- Adjustable screen and grid brightness
Technical Specifications
Parameter Specification
Model : DSO-10100S
Brand : HTC
Type : Digital Storage Oscilloscope
Bandwidth : 100 MHz
Channels : 2
Maximum Real-Time Sampling Rate : 1 GSa/s
Display : 7-inch LCD
Vertical Sensitivity : 50 mV/div – 500 V/div
Horizontal Time Base : 50 s/div – 10 ns/div
Trigger Modes : Auto / Normal / Single
Trigger Edge : Rising / Falling
Coupling : AC / DC
Internal Storage : 1 GB
Screenshot Storage : Up to 1,000
Waveform Storage : Up to 1,000 sets
Interface : USB
Power Supply : 100–240 V AC
Frequency : 45–440 Hz
Dimensions : Approx. 310 × 145 × 70 mm
Probe : 2 × 100 MHz probes
Country of Origin : India
Published listings confirm the 100 MHz bandwidth, two channels, 1 GSa/s maximum real-time sampling and the stated vertical/time-base ranges.
Automatic Measurements
The DSO-10100S can automatically calculate a range of waveform parameters, including:
- Peak value
- Amplitude
- Maximum value
- Minimum value
- Top value
- Bottom value
- Mean/average value
- RMS
- Frequency
- Period
- Rise time
- Fall time
- Positive pulse width
- Negative pulse width
- Positive duty cycle
- Negative duty cycle
Cursor Measurement
The cursor function allows users to manually examine waveform characteristics such as:
- Voltage difference
- Time difference
- Frequency/period relationships
This is useful when a specific point or interval on a waveform needs to be examined rather than relying only on automatic measurements.
Built-in Signal Generator
A notable feature of the DSO-10100S is its oscilloscope + signal-generator combination. This allows it to be used not only for observing signals but also for generating test signals for electronic-circuit experiments.
Triggering
The oscilloscope provides Auto, Normal and Single trigger modes. It also supports rising-edge and falling-edge triggering, allowing users to stabilize and capture repetitive or one-time waveform events.
Storage & USB
The built-in 1 GB storage can accommodate up to approximately 1,000 screen-capture images and 1,000 groups of waveform data. The USB interface allows data to be transferred between the oscilloscope and a computer.
Applications
The HTC DSO-10100S is suitable for:
- Electronics laboratories
- Educational institutions
- Circuit testing
- Electronic troubleshooting
- Research and development
- Production-line testing
- PCB and component testing
- Signal analysis
- Power-supply testing
- Communication/electronic equipment testing
- General maintenance and servicing
Package Contents
A typical package includes:
- 1 × HTC DSO-10100S Oscilloscope
- 2 × 100 MHz Oscilloscope Probes
- USB adapter/cable
- Power cable
- User manual
The exact accessories can vary by seller/package.
Product Description
HTC DSO-10100S 100 MHz Digital Storage Oscilloscope is a versatile 2-channel oscilloscope designed for accurate observation, measurement and analysis of electrical signals. With 100 MHz bandwidth, up to 1 GSa/s real-time sampling, a 7-inch LCD, 50 mV/div–500 V/div vertical sensitivity and 50 s/div–10 ns/div time base, it provides flexible waveform analysis for electronics testing and laboratory applications. The instrument features automatic measurements, cursor measurement, multiple trigger modes, AC/DC coupling, built-in 1 GB storage, USB connectivity and a built-in signal generator. It can store up to 1,000 screenshots and 1,000 sets of waveform data, making it suitable for educational, industrial, research and electronic troubleshooting applications.
