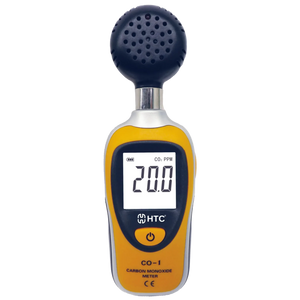

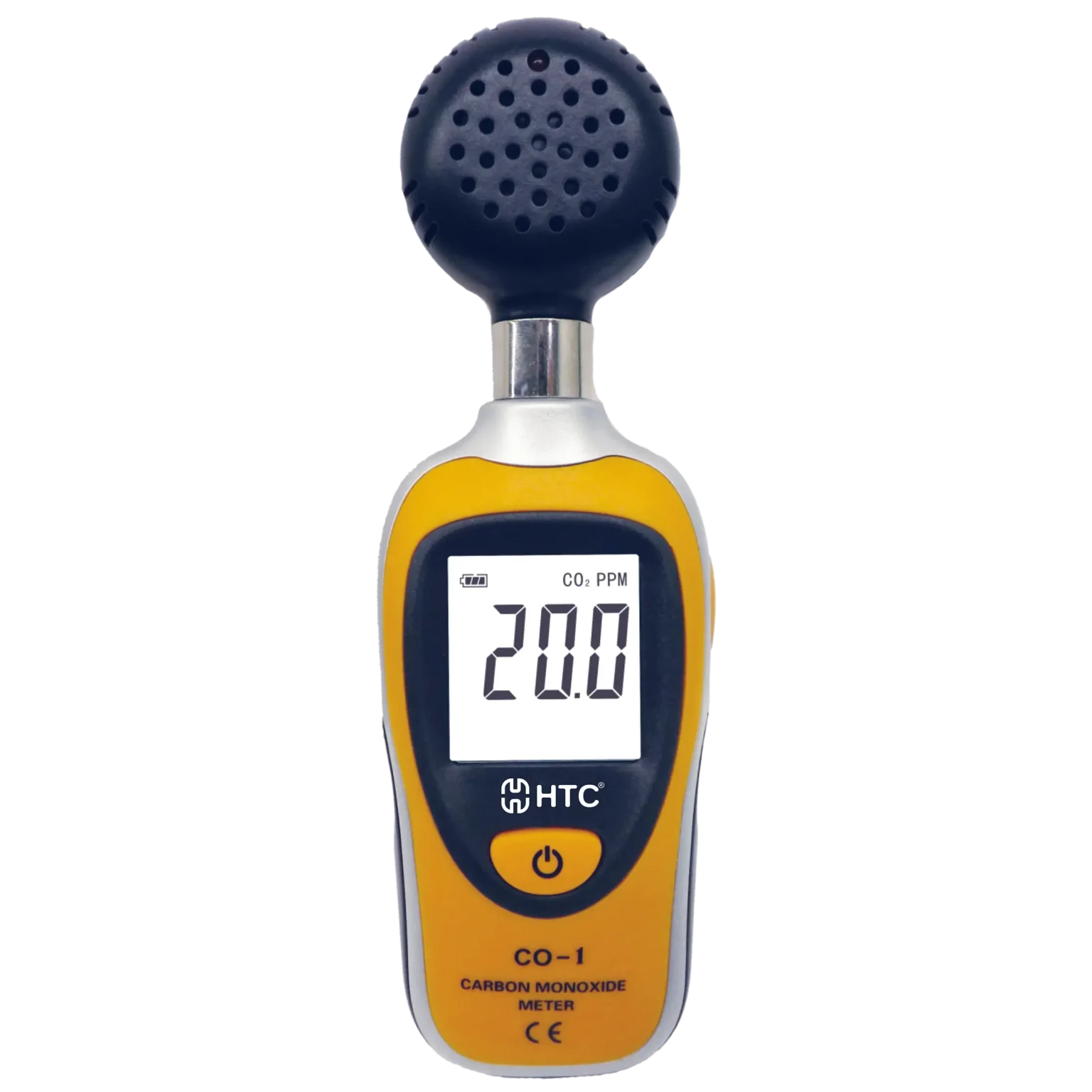

HTC CO-01 Carbon Monoxide Detector

HTC CO-01 Carbon Monoxide Detector

The HTC CO-01 Carbon Monoxide Detector is a portable, high-accuracy gas detection instrument designed to measure carbon monoxide (CO) concentrations in ambient air. Equipped with a stabilized electrochemical CO sensor, it provides fast, reliable, and accurate readings, making it ideal for HVAC technicians, industrial safety professionals, environmental monitoring, automotive workshops, and maintenance personnel. The instrument helps identify hazardous CO levels to ensure workplace and indoor air safety.

Key Features

• Measures carbon monoxide (CO) concentration from 0 to 1000 PPM.
• High-accuracy electrochemical gas-specific sensor.
• Fast response time of less than 30 seconds.
• Large LCD display with easy-to-read measurements.
• Audible alarm with Low and High warning levels.
• Data Hold and MAX value functions.
• Auto Zero calibration for improved measurement accuracy.
• Backlight for use in low-light environments.
• Auto power-off after 15 minutes to conserve battery life.
• Compact, lightweight, and portable design.
• Low battery indication.

Technical Specifications

Parameter  Specification

Gas Detected : Carbon Monoxide (CO)

Sensor Type : Stabilized Electrochemical Sensor

Measurement Range : 0–1000 PPM

Resolution : 1 PPM

Accuracy : Â±5% of reading ±10 PPM

Response Time : <30 Seconds

Sampling Rate : Approximately 2 readings/second

Zero Drift : <5 PPM

Repeatability : Â±2% of reading

Long-Term Stability : <5% per year

Display : Large LCD with Backlight

Alarm : Audible Low & High Alarm

Power Supply : 1 × 9V (6F22) Battery

Auto Power Off : After 15 Minutes

Operating Temperature : -20°C to 50°C

Operating Humidity : 15–90% RH (Non-condensing)

Dimensions : 171 × 55 × 38 mm

Weight : Approximately 159 g

Applications

• HVAC system inspection
• Boiler and furnace maintenance
• Industrial safety monitoring
• Automotive exhaust testing
• Generator and engine emission checks
• Indoor air quality assessments
• Warehouses and manufacturing facilities
• Laboratories and research environments

Package Contents

• HTC CO-01 Carbon Monoxide Detector
• 9V Battery
• Protective Carrying Case
• User Manual

Benefits

• Accurate detection of hazardous carbon monoxide levels.
• Fast sensor response for timely safety assessments.
• Portable and lightweight for field inspections.
• Audible alarms provide immediate warning of unsafe CO concentrations.
• Long-lasting electrochemical sensor ensures stable performance.
• Simple operation with a clear LCD display.

Typical Industries

• HVAC & Building Maintenance
• Industrial Safety
• Automotive Service Centers
• Manufacturing Plants
• Environmental Monitoring
• Fire & Safety Inspection
• Research Laboratories
• Facility Management

The HTC CO-01 Carbon Monoxide Detector is a dependable handheld instrument for professionals who require accurate and rapid CO measurements. Its electrochemical sensing technology, fast response, audible alarm system, and portable design make it an excellent choice for routine inspections, preventive maintenance, and workplace safety monitoring.
