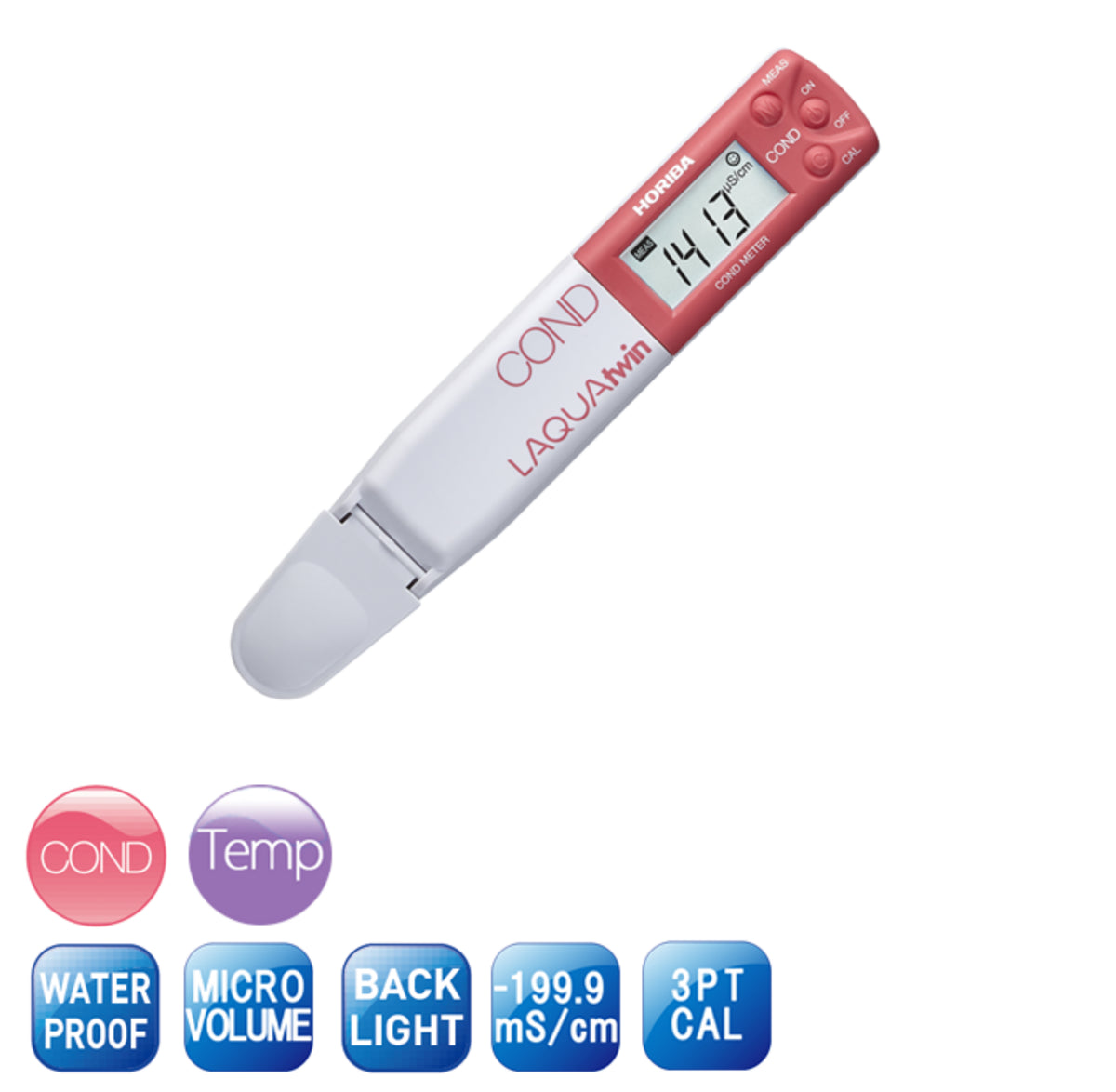

HORIBA LAQUAtwin EC-22 Waterproof Pocket Conductivity & Temperature Meter

Product Overview

The HORIBA LAQUAtwin EC-22 is a high-precision pocket meter for direct conductivity and temperature measurement from only 0.12 mL of sample. Its flat integrated sensor lets users place a few drops of sample or standard solution directly onto the measurement surface, removing the need for a beaker.

The EC-22 provides auto-ranging conductivity measurement, three-point calibration, automatic standard recognition, temperature display and temperature calibration. It is an ideal portable option for fast conductivity testing where sample volume is limited.

Key Features

• Measures electrical conductivity and temperature

• Direct conductivity testing from just 0.12 mL of sample

• Flat integrated sensor; no beaker required

• Auto-ranging conductivity measurement

• Up to 3-point conductivity calibration

• Automatic recognition of 1,413 µS/cm, 12.88 mS/cm and 111.8 mS/cm standards

• Automatic temperature compensation, fixed at 2%/°C

• Temperature display from 0.0 to 50.0°C

• Temperature calibration from 5 to 40.0°C

• Auto Stable and Auto Hold functions

• Backlit monochrome LCD

• IP67 waterproof and dustproof construction

• Replaceable S070 conductivity sensor

• Automatic power-off after 30 minutes

• Low-battery indicator

• Approx. 400 hours of continuous operation without backlight

• Compact carrying case included

• Warranty: 2 years for meter; 6 months for sensor

Technical Specifications

Package Contents

• HORIBA LAQUAtwin EC-22 pocket conductivity/temperature meter

• S070 replaceable conductivity sensor

• 1,413 µS/cm conductivity standard solution, 14 mL

• 12.88 mS/cm conductivity standard solution, 14 mL

• Conditioning solution, 4 mL

• 2 × CR2032 batteries

• Dropper/pipette

• Carrying/storage case

• Instruction manual and quick guide

Compatible Accessories

• S070 replacement conductivity sensor — Part No. 3200459672

• 1,413 µS/cm conductivity standard, 514-22 — Part No. 3999960110

• 12.88 mS/cm conductivity standard, 514-23 — Part No. 3999960111

• Conditioning solution, 514-20 — Part No. 3999960114

Suitable Applications

Suitable for water testing, hydroponic and nutrient solutions, aquarium water, agriculture, environmental sampling, laboratory spot checks and general field conductivity testing.

Important Use Note

The EC-22 is IP67 rated for protection from dust and temporary water exposure; it is not intended for underwater measurement. Conductivity meters are intended for liquid samples, not direct testing of solids, powders or paper materials.
