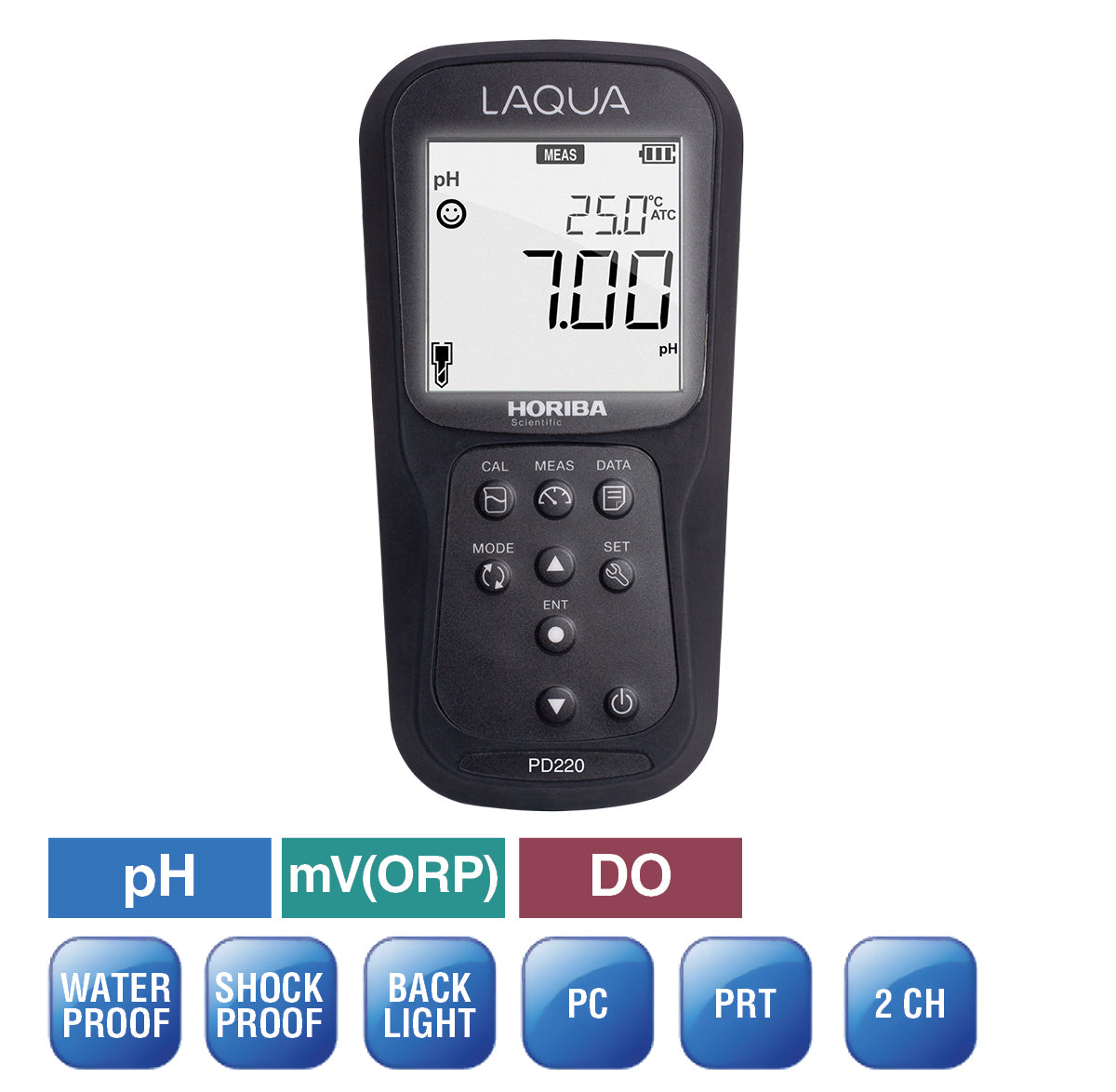

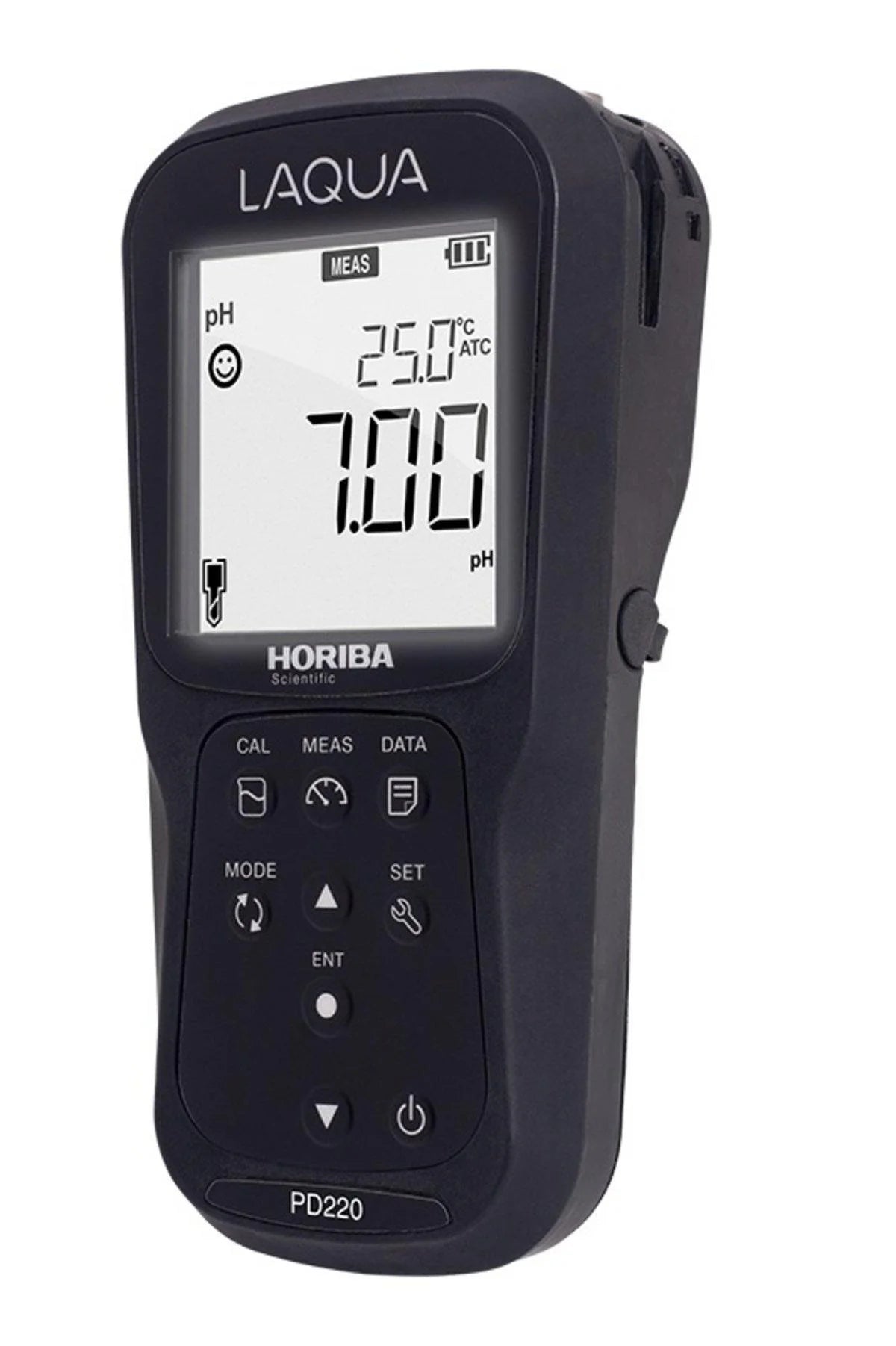

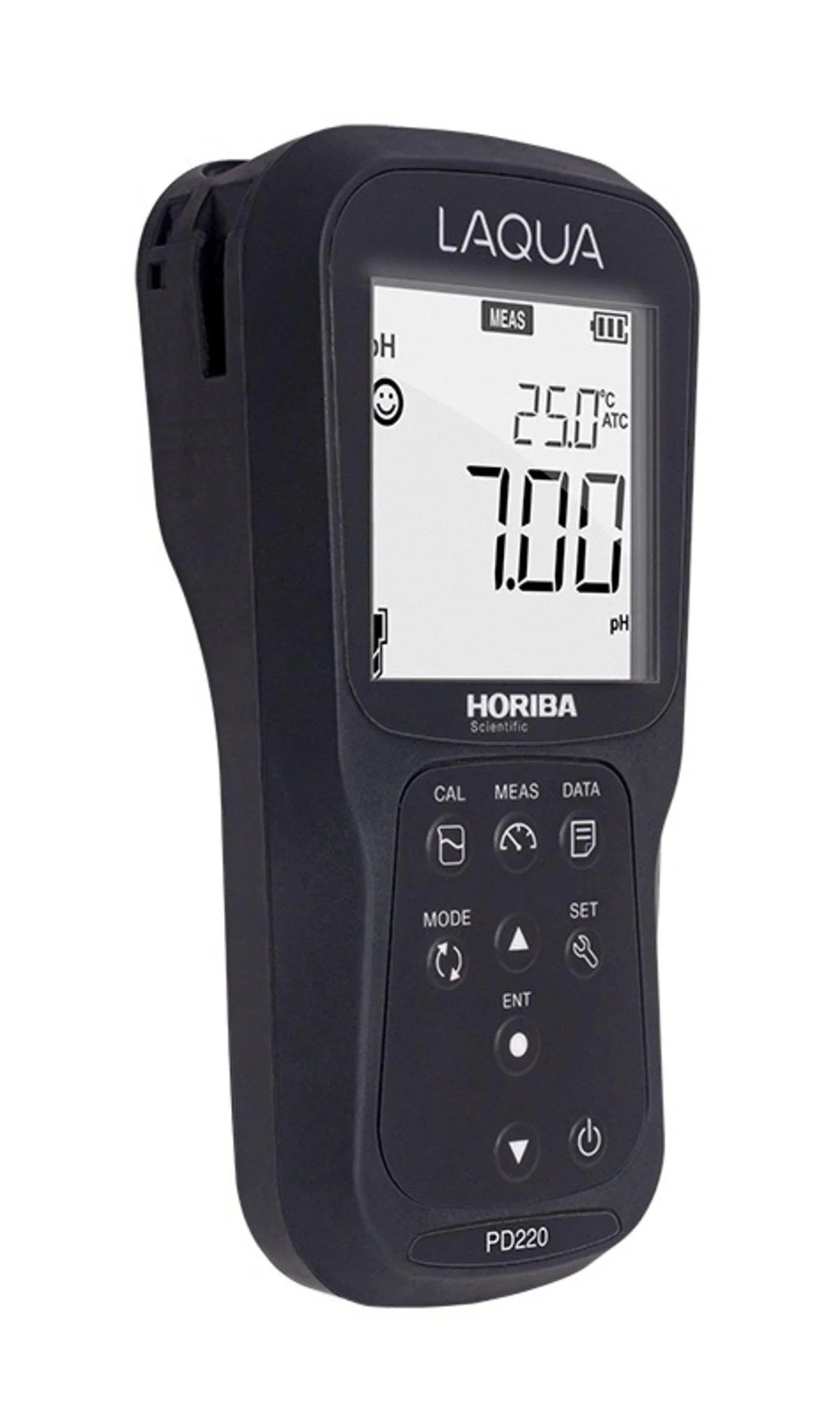

HORIBA LAQUA PD220 Waterproof Handheld pH/ORP/Dissolved Oxygen/Temperature Meter
Description
HORIBA LAQUA PD220 Waterproof Handheld pH/ORP/Dissolved Oxygen/Temperature Meter
Product Overview
The HORIBA LAQUA PD220 is a professional dual-channel handheld water-quality meter for measuring pH, ORP, dissolved oxygen (DO) and temperature. It combines pH/ORP measurement with dissolved oxygen testing in a rugged, portable IP67 waterproof instrument for laboratory and field applications.
The meter supports automatic pH calibration, ORP calibration, DO calibration, automatic compensation functions and data logging. Its backlit display, integrated electrode holder and durable carrying case support convenient routine testing in water monitoring, aquaculture, research and process applications.
Key Features
-
Dual-channel meter for pH, ORP, dissolved oxygen and temperature measurement
-
Measures dissolved oxygen in mg/L (ppm) and % saturation
-
Automatic pH calibration: up to 5 points for USA/NIST buffers and up to 6 points for DIN buffers
-
Supports USA, NIST and DIN pH buffer groups
-
Displays pH offset and average slope information
-
Optional ORP calibration
-
Up to 2-point DO calibration
-
Automatic compensation for dissolved oxygen salinity, temperature and barometric pressure
-
Automatic/manual temperature compensation and temperature calibration
-
Auto Stable, Auto Hold and Real Time measurement modes
-
Internal memory for up to 1,000 readings with automatic data logging
-
Real-time clock and date/time stamp for traceable records
-
Programmable calibration reminder alarm, up to 90 days
-
Programmable automatic shut-off, up to 30 minutes
-
Built-in holder accommodates two electrodes
-
Backlit 50 × 50 mm monochrome LCD
-
PC connection via optional USB cable and printer connection via optional RS232 cable
-
IP67 waterproof/dustproof, shock-resistant, scratch-resistant and non-slip housing
-
Powered by 2 × AA batteries; battery life over 500 hours
-
Three-year meter warranty
Technical Specifications
| Parameter | Specification |
|---|---|
| pH range | -2.00 to 16.00 pH |
| pH resolution | 0.01 pH |
| pH accuracy | ±0.01 pH |
| pH calibration | Up to 5 points (USA/NIST); up to 6 points (DIN) |
| pH buffer groups | USA, NIST, DIN |
| ORP range | ±2000 mV |
| ORP resolution | 0.1 mV below ±1000 mV; 1 mV at/above ±1000 mV |
| ORP accuracy | ±0.3 mV below ±1000 mV; 0.3% of reading at/above ±1000 mV |
| ORP calibration | Yes |
| Dissolved oxygen range | 0.00 to 20.00 mg/L; 0.0 to 200.0% saturation |
| DO resolution | 0.01 mg/L / 0.1% |
| DO accuracy | ±0.1 mg/L |
| DO calibration | Up to 2 points |
| DO probe type | Galvanic probe with integrated temperature sensor |
| Salinity compensation | 0.0 to 40.0 ppt |
| Barometric pressure compensation | Yes |
| Temperature compensation | Yes |
| Temperature range | -30.0 to 130.0°C / -22.0 to 266.0°F |
| Temperature resolution | 0.1°C / 0.1°F |
| Temperature accuracy | ±0.5°C / ±0.9°F |
| Temperature calibration | Yes |
| Data memory | Up to 1,000 readings |
| Data logging | Automatic |
| Date/time stamp | Yes |
| Display | Custom backlit LCD |
| Meter inputs | 2 × BNC inputs for pH and DO electrodes; 2 × phono inputs for temperature sensors |
| Meter output | Phono output for PC/printer connection |
| Housing | IP67 waterproof/dustproof, shock- and scratch-resistant, non-slip |
| Power supply | 2 × AA batteries |
| Battery life | More than 500 hours |
| Dimensions | 160 × 80 × 40.6 mm |
| Weight | Approx. 260 g with batteries; 216 g without batteries |

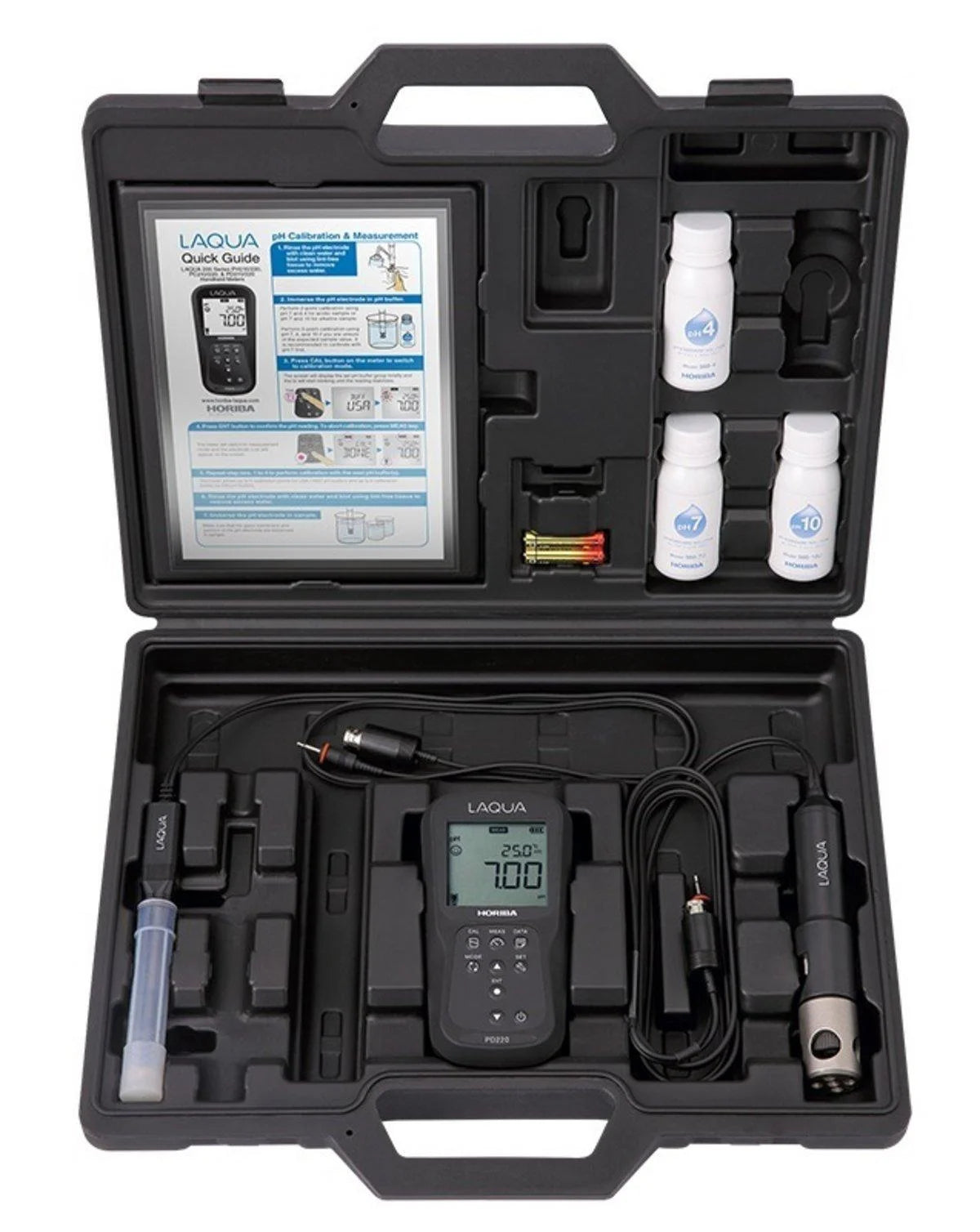

Package Contents
PD220-K — Standard Buffer Kit
Order Code: 3200779535
-
LAQUA PD220 pH/ORP/DO/temperature meter
-
9652-20D plastic-body, gel-filled pH electrode with integrated temperature sensor, 2 m cable
-
9552-20D galvanic DO probe with integrated temperature sensor, 2 m cable
-
pH 4.01, 7.00 and 10.01 buffer solutions, 60 mL each
-
Electrode adapter
-
2 × AA batteries
-
Carrying case
-
Instruction manual and quick guide
PD220-KN — NIST Buffer Kit
-
LAQUA PD220 pH/ORP/DO/temperature meter
-
9652-20D plastic-body, gel-filled pH electrode with integrated temperature sensor, 2 m cable
-
9552-20D galvanic DO probe with integrated temperature sensor, 2 m cable
-
pH 4.01, 6.86 and 9.18 NIST buffer solutions, 60 mL each
-
Electrode adapter
-
2 × AA batteries
-
Carrying case
-
Instruction manual and quick guide
Suitable Applications
Suitable for water-quality testing in laboratories, environmental monitoring, aquaculture, wastewater treatment, drinking-water systems, research facilities, education and field sampling.
