HORIBA LAQUA PC220 Handheld Multi-Parameter Water Quality Meter | pH, ORP, Conductivity, TDS, Salinity, Resistivity & Temperature
Description
Product Title
HORIBA LAQUA PC220-K Waterproof Handheld Multi-Parameter Water Quality Meter — pH, ORP, Conductivity, TDS, Resistivity, Salinity & Temperature
Product Description

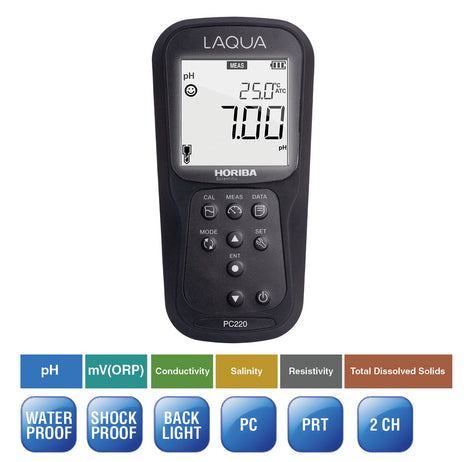

The HORIBA LAQUA PC220 is a professional dual-channel handheld water-quality meter for field and laboratory testing. It measures pH, ORP, conductivity, total dissolved solids (TDS), resistivity, salinity and temperature in a rugged IP67 waterproof body.
The PC220-K kit includes both a pH electrode and conductivity electrode, enabling routine pH, conductivity/TDS/resistivity/salinity and temperature measurements straight from the case. The meter provides automatic logging of up to 1,000 readings, date/time-stamped records, a backlit display, calibration reminders, and optional PC or printer connectivity.
Key Features
- Measures 7 parameters: pH, ORP, conductivity, TDS, resistivity, salinity and temperature
- Dual-channel design for pH and conductivity electrodes
- IP67 waterproof/dustproof, non-slip, shock- and scratch-resistant housing
- Automatic pH calibration: up to 5 points for USA/NIST buffers; up to 6 points for DIN buffers
- Conductivity calibration: up to 4 automatic or 5 manual points
- Adjustable reference temperature, temperature coefficient and cell constant
- Four TDS conversion curves: Linear, EN27888, 442 and NaCl
- Two salinity curves: NaCl and seawater
- Stores up to 1,000 readings with automatic data logging
- Real-time clock and date/time stamps for GLP-oriented records
- Auto Stable, Auto Hold and real-time measurement modes
- Backlit 50 × 50 mm LCD
- Programmable calibration reminder up to 90 days
- Programmable auto shut-off up to 30 minutes
- PC USB and RS232 printer connection supported with optional cables
- Runs on 2 AA batteries; battery life exceeds 500 hours
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | HORIBA |
| Model | LAQUA PC220 |
| Kit Model / Order Code | PC220-K / 3200779533 |
| Meter Type | Handheld multi-parameter water-quality meter |
| pH Range | -2.00 to 16.00 pH |
| pH Resolution | 0.01 pH |
| pH Accuracy | ±0.01 pH |
| pH Calibration | Up to 5 points (USA/NIST); up to 6 points (DIN) |
| pH Buffer Groups | USA, NIST, DIN |
| ORP Range | ±2000 mV |
| ORP Resolution | 0.1 mV below ±1000 mV; 1 mV at/above ±1000 mV |
| ORP Accuracy | ±0.3 mV below ±1000 mV; 0.3% of reading at/above ±1000 mV |
| Conductivity Range | 0.0 µS/cm to 200.0 mS/cm (with k=1.0 cell) |
| Conductivity Resolution | 0.05% of full scale |
| Conductivity Accuracy | ±0.6% FS; ±1.5% FS above 18.0 mS/cm |
| Conductivity Calibration | Up to 4-point automatic / 5-point manual |
| Conductivity Units | S/cm or S/m; auto-ranging |
| Reference Temperature | Adjustable, 15 to 30°C |
| Temperature Coefficient | Adjustable, 0.00 to 10.00% |
| Cell Constants | Adjustable: 0.1, 1.0, 10.0 |
| TDS Range | 0.00 mg/L to 100 g/L (100 ppt) |
| TDS Resolution | 0.01 ppm (mg/L) / 0.1 ppt (g/L) |
| TDS Accuracy | ±0.1% FS |
| TDS Curves | Linear (0.40–1.00), EN27888, 442, NaCl |
| Resistivity Range | 0.000 Ω·cm to 20.0 MΩ·cm |
| Resistivity Resolution | 0.05% of full scale |
| Resistivity Accuracy | ±0.6% FS; ±1.5% FS above 1.80 MΩ·cm |
| Salinity Range | 0.0–100.0 ppt / 0.00–10.00% |
| Salinity Resolution | 0.1 ppt / 0.01% |
| Salinity Accuracy | ±0.2% FS |
| Salinity Curves | NaCl, seawater |
| Temperature Range | -30.0 to 130.0°C / -22.0 to 266.0°F |
| Temperature Resolution | 0.1°C / 0.1°F |
| Temperature Accuracy | ±0.5°C / ±0.9°F |
| Data Memory | 1,000 records |
| Data Logging | Automatic |
| Measurement Modes | Auto Stable, Auto Hold, Real Time |
| Display | Backlit custom LCD, 50 × 50 mm |
| Inputs | 2 × BNC; 2 × phono inputs for temperature sensors |
| Output | Phono output for optional PC/printer cable |
| PC Connection | Optional USB cable, PN 3200779639 |
| Printer Connection | Optional RS232 cable, PN 3200779638 |
| Protection Rating | IP67 |
| Power | 2 × AA batteries |
| Battery Life | >500 hours |
| Dimensions | 160 × 80 × 40.6 mm |
| Weight | Approx. 260 g with batteries; 216 g without batteries |
| Meter Warranty | 3 years, subject to regional seller terms |

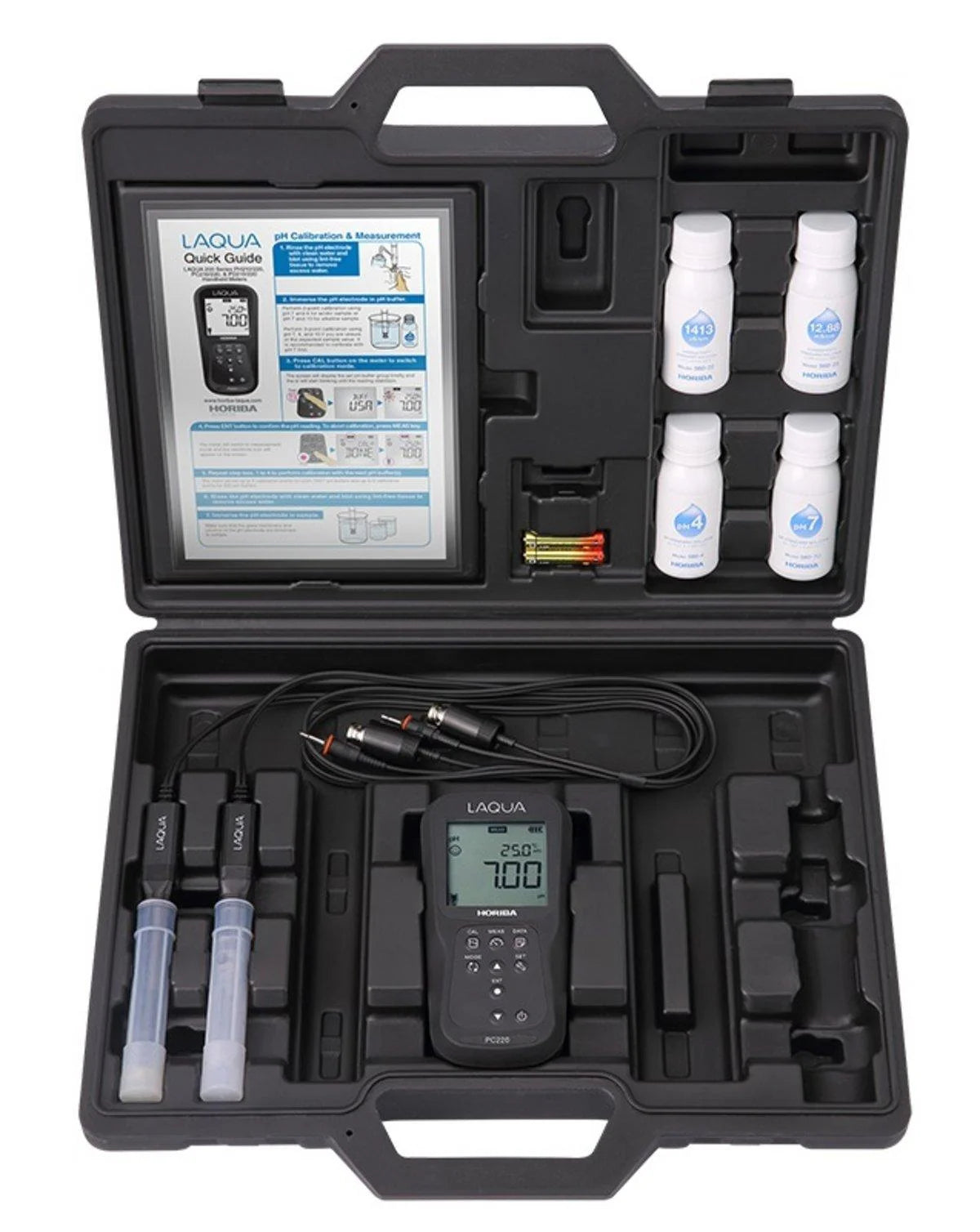

Package Contents — PC220-K
- LAQUA PC220 handheld meter
- 9652-10D plastic-body, gel-filled pH electrode with integrated temperature sensor
- 9383-10D plastic-body Ti/Pt black conductivity electrode, k=1.0, with integrated temperature sensor
- pH 4.01 and pH 7.00 buffer solutions, 60 ml each
- 1413 µS/cm and 12.88 mS/cm conductivity standards, 60 ml each
- 2 × AA batteries
- Electrode adapter
- Carrying case
- Instruction manual and quick guide
Suitable Applications
Water and wastewater testing, environmental monitoring, aquaculture, hydroponics, agriculture, food and beverage production, education, process checks, laboratories, and general field water-quality analysis.
Important Listing Note
The PC220-K includes pH and conductivity electrodes. ORP measurement requires a compatible ORP electrode, sold separately. PC USB and RS232 printer cables are also optional.
