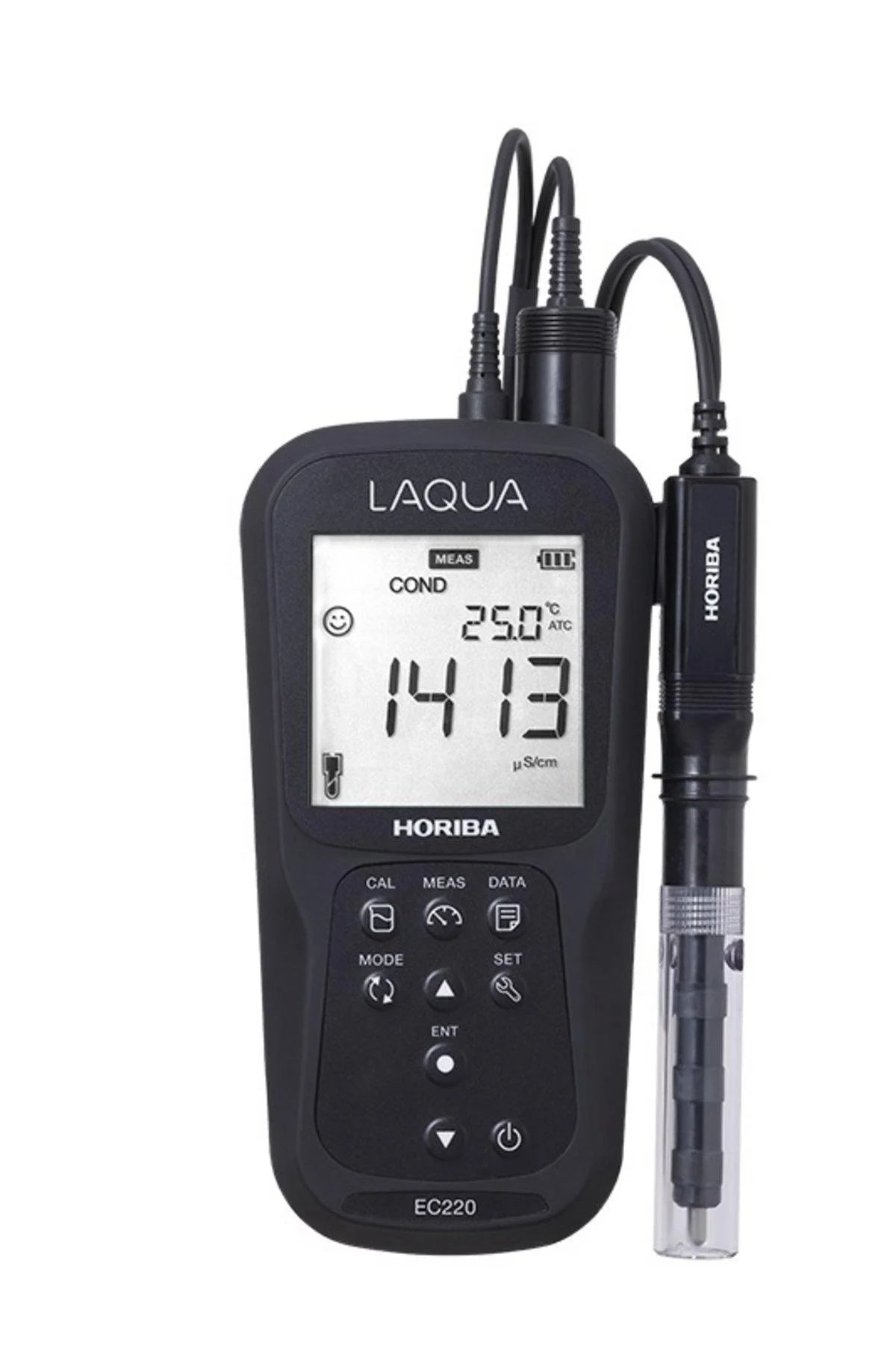

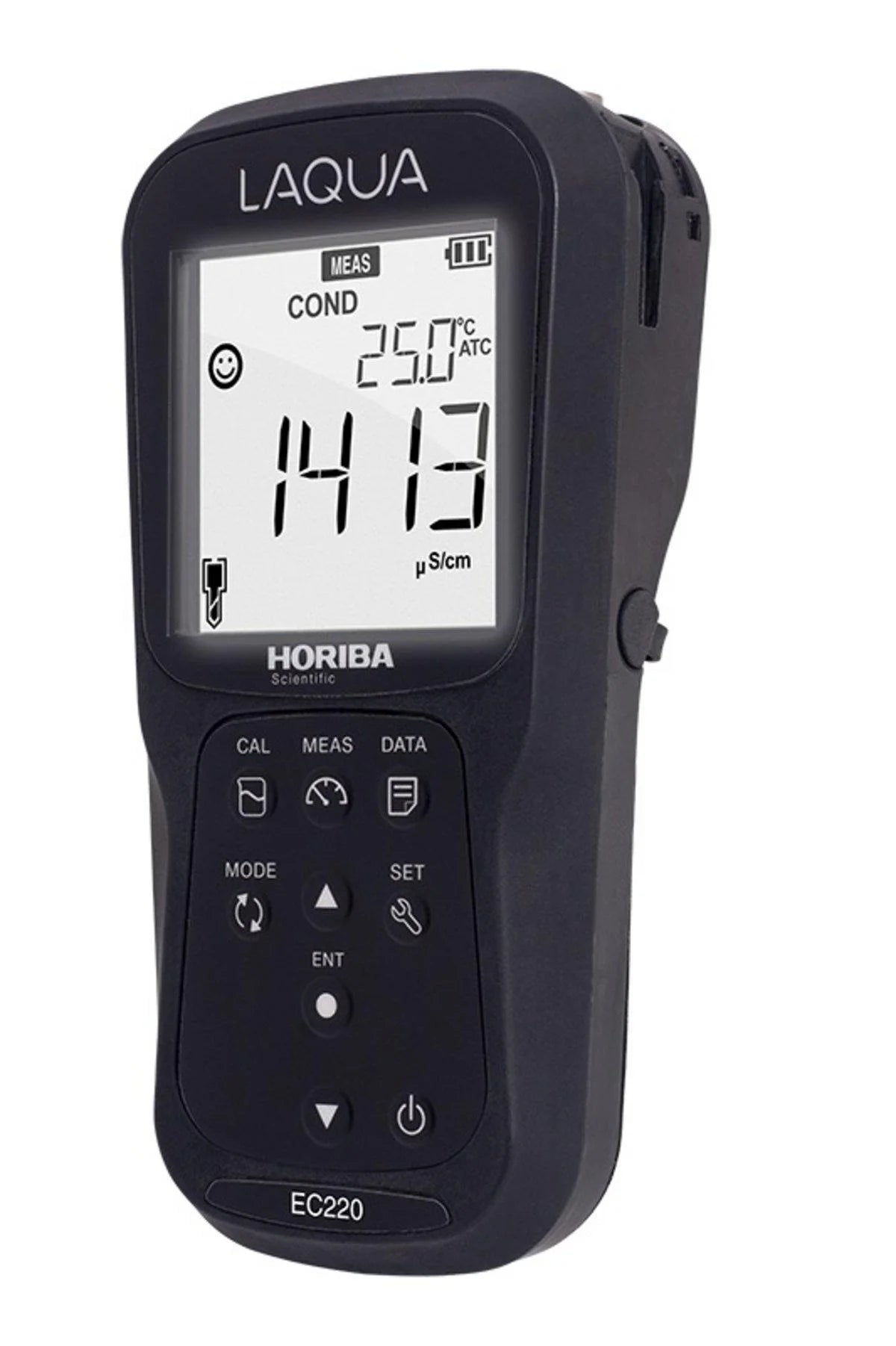

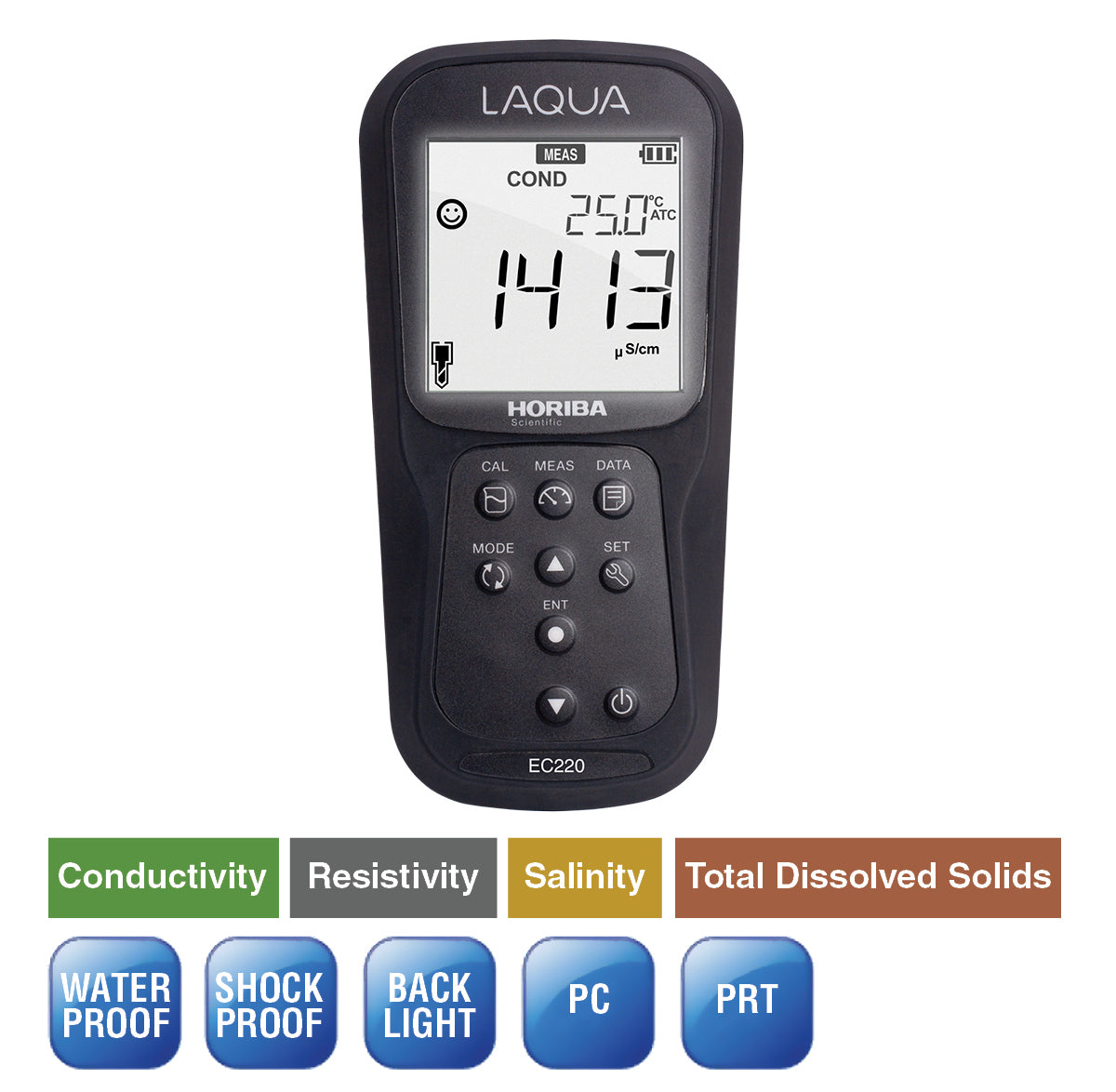

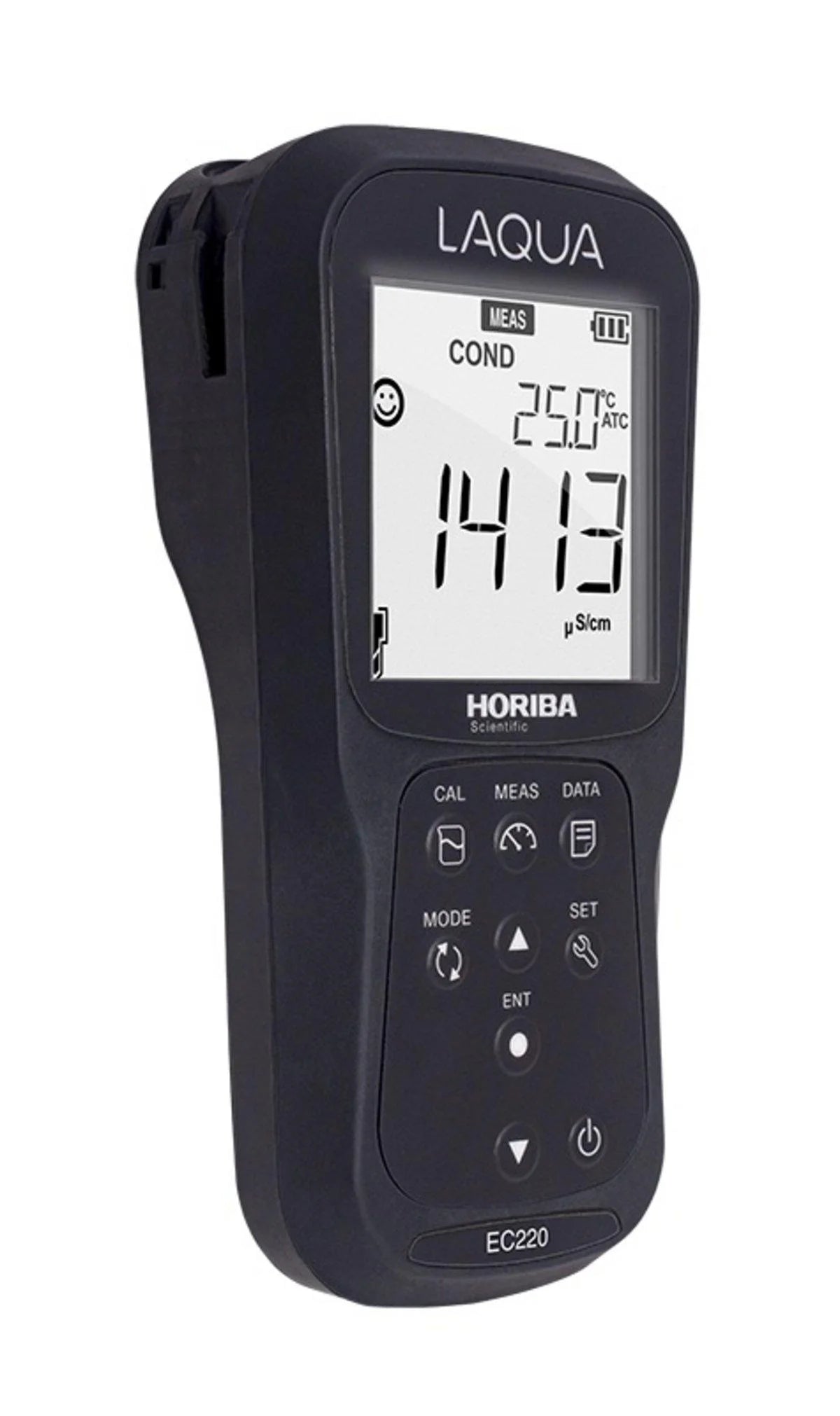

HORIBA LAQUA EC220-K Waterproof Handheld Conductivity, Resistivity, TDS, Salinity & Temperature Meter
Description
HORIBA LAQUA EC220-K Waterproof Handheld Conductivity, Resistivity, TDS, Salinity & Temperature Meter
Product Overview
The HORIBA LAQUA EC220-K is a professional handheld water-quality meter for accurate measurement of conductivity, resistivity, total dissolved solids (TDS), salinity and temperature. Its rugged IP67 waterproof, dustproof and shock-resistant housing makes it well suited to routine laboratory and field testing.
The meter supports automatic and manual calibration, automatic/manual temperature compensation, selectable TDS and salinity curves, and data storage for up to 1,000 readings. A backlit LCD, fold-out stand and protective carry case make operation convenient in a wide range of environments.
Key Features
-
Measures conductivity, resistivity, TDS, salinity and temperature
-
IP67 waterproof and dustproof, non-slip, shock- and scratch-resistant housing
-
Large 50 × 50 mm backlit monochrome LCD
-
Conductivity calibration: up to 4 points automatic or 5 points manual
-
Adjustable reference temperature, temperature coefficient and cell constant
-
Automatic or manual temperature compensation and temperature calibration
-
Four TDS conversion curves: Linear, EN27888, 442 and NaCl
-
Two salinity curves: NaCl and seawater
-
Auto Stable, Auto Hold and real-time measurement modes
-
Internal memory for up to 1,000 readings
-
Automatic data logging, real-time clock and date/time stamp
-
PC connection via optional USB cable; printer connection via optional RS232 cable
-
Programmable automatic shut-off, up to 30 minutes
-
More than 500 hours of battery life from two AA batteries
-
Three-year meter warranty
Technical Specifications
| Parameter | Specification |
|---|---|
| Conductivity range | 0.000 µS/cm to 200.0 mS/cm (with k=1.0 cell) |
| Conductivity resolution | 0.05% of full scale |
| Conductivity accuracy | ±0.6% of full scale; ±1.5% of full scale above 18.0 mS/cm |
| Conductivity units | S/cm or S/m; auto-ranging |
| Calibration | Up to 4-point automatic / 5-point manual |
| Cell constants | 0.1, 1.0 and 10.0 |
| Reference temperature | 15 to 30°C, adjustable |
| Temperature coefficient | 0.00 to 10.00%, adjustable |
| TDS range | Up to 100 ppt (TDS factor 0.5) |
| TDS resolution | 0.01 ppm (mg/L) / 0.1 ppt (g/L) |
| TDS accuracy | ±0.1% of full scale |
| Linear (0.40–1.00), EN27888, 442, NaCl | |
| Resistivity rangeTDS curves | 0.000 Ω·cm to 20.0 MΩ·cm |
| Resistivity resolution | 0.05% of full scale |
| Resistivity accuracy | ±0.6% of full scale; ±1.5% of full scale above 18.0 MΩ·cm |
| Salinity range | 0.0–100.0 ppt / 0.00–10.00% |
| Salinity resolution | 0.1 ppt / 0.01% |
| Salinity accuracy | ±0.2% of full scale |
| Salinity curves | NaCl and seawater |
| Temperature range | -30.0 to 130.0°C / -22.0 to 266.0°F |
| Temperature resolution | 0.1°C / 0.1°F |
| Temperature accuracy | ±0.5°C / ±0.9°F |
| Up to 1,000 readings | |
| Display | Backlit custom LCD |
| Meter inputsData memory | BNC conductivity electrode input; phono temperature sensor input |
| Housing | IP67 waterproof/dustproof |
| Power supply | 2 × AA batteries |
| Battery life | Over 500 hours |
| Dimensions | 160 × 80 × 40.6 mm |
| Weight | Approx. 260 g with batteries; 216 g without batteries |
Package Contents — EC220-K Kit
-
HORIBA LAQUA EC220 meter
-
9383-10D Ti/Pt black conductivity electrode, k=1.0, with integrated temperature sensor
-
84 µS/cm conductivity standard solution, 60 mL
-
1,413 µS/cm conductivity standard solution, 60 mL
-
12.88 mS/cm conductivity standard solution, 60 mL
-
111.8 mS/cm conductivity standard solution, 60 mL
-
2 × AA batteries
-
Carrying case
-
Instruction manual and quick guide
Suitable Applications
Ideal for routine water-quality testing in laboratories, environmental monitoring, water treatment, aquaculture, food and beverage processes, educational institutions and field sampling.
