HORIBA LAQUA DO220 Waterproof Handheld Dissolved Oxygen & Temperature Meter
Description
HORIBA LAQUA DO220 Waterproof Handheld Dissolved Oxygen & Temperature Meter
Product Overview

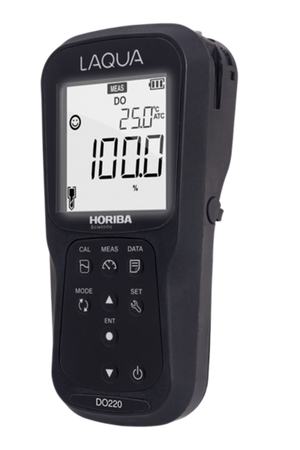

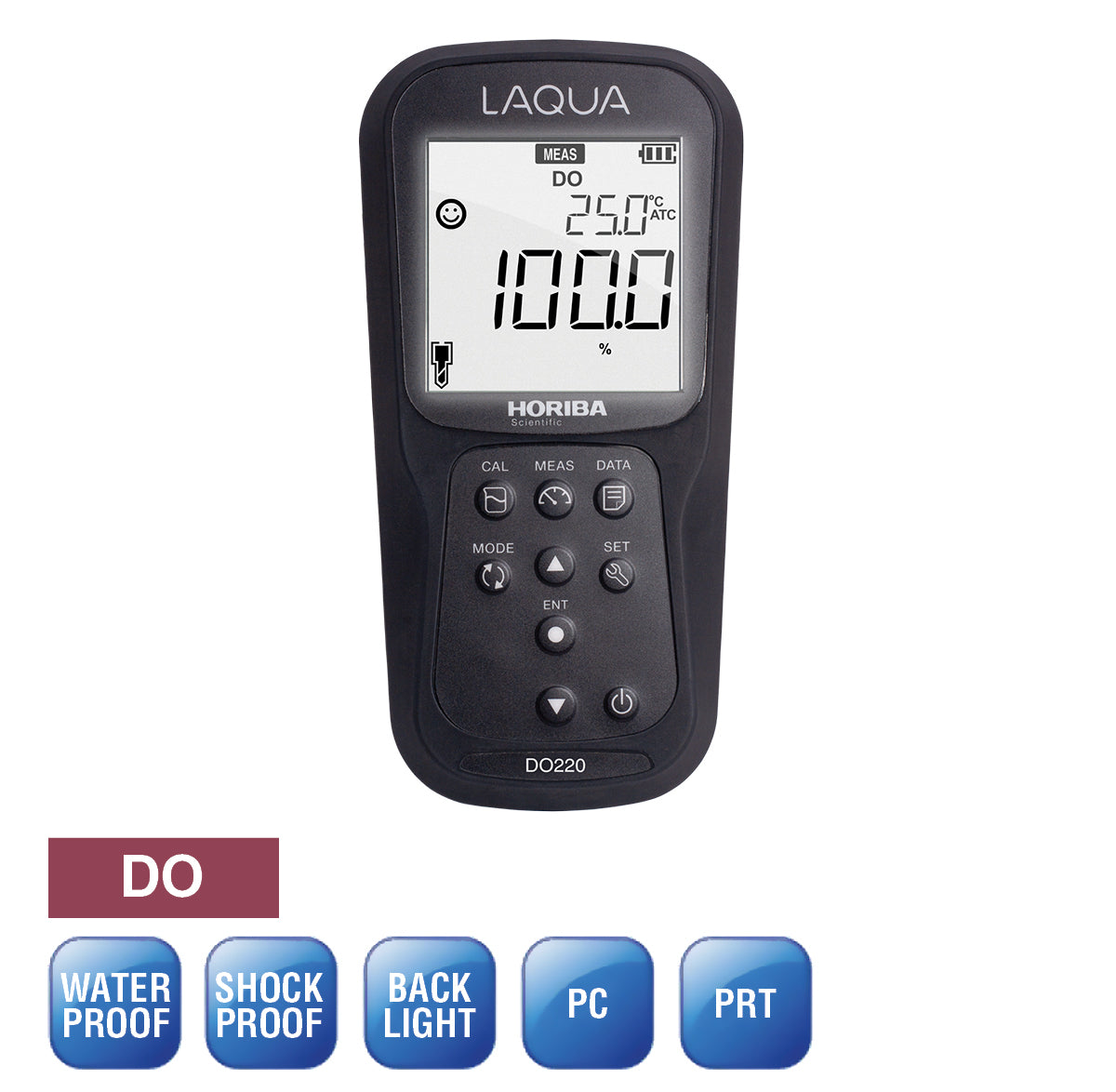

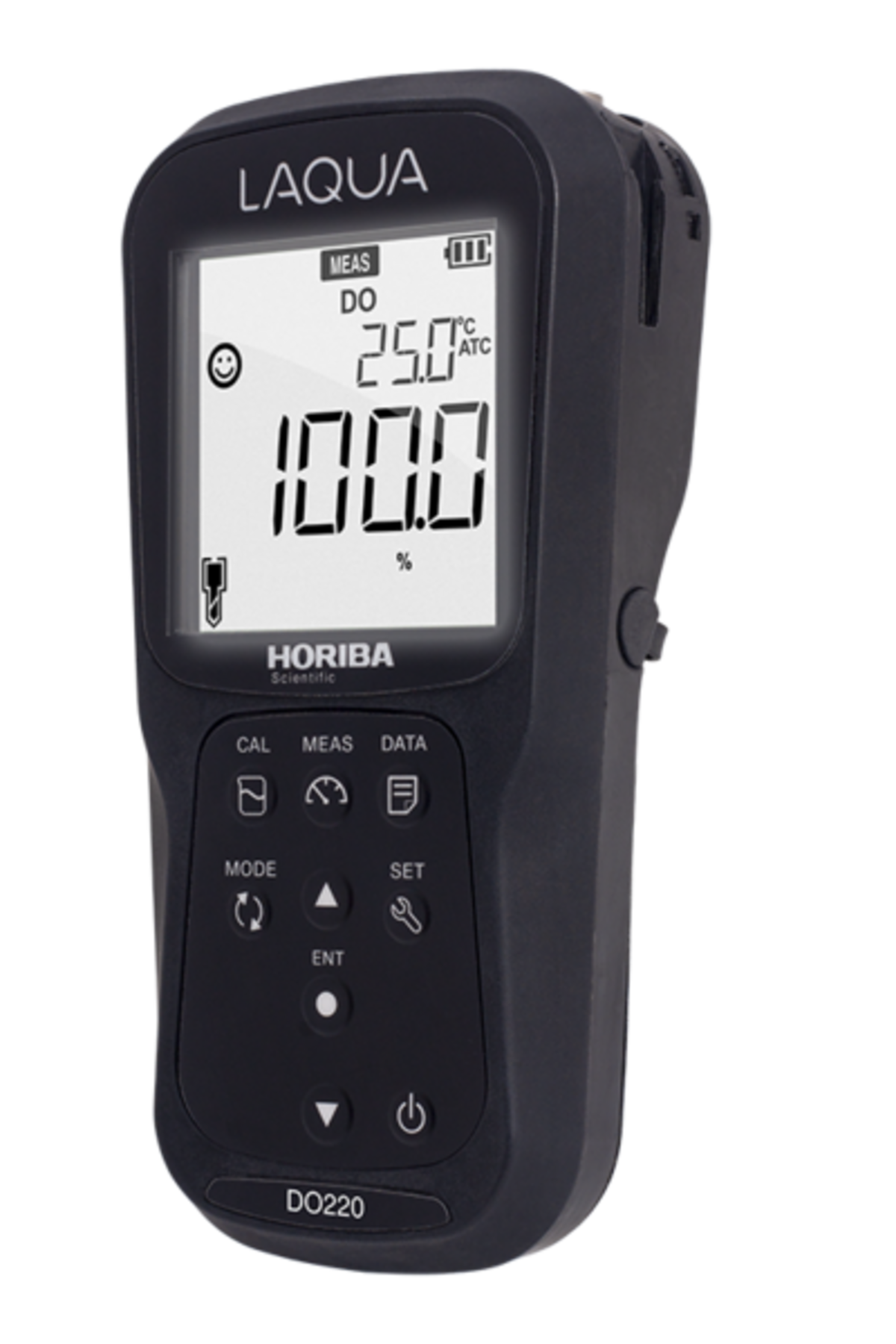

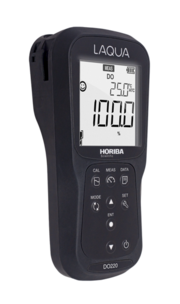

The HORIBA LAQUA DO220 is a professional handheld meter for measuring dissolved oxygen (DO) concentration, percentage saturation and temperature in water. Designed for dependable laboratory and field use, it features an IP67 waterproof and dustproof housing, a backlit display, automatic compensation functions and onboard data logging.
The meter uses a galvanic dissolved oxygen probe with an integrated temperature sensor. It automatically compensates measurements for salinity, barometric pressure and temperature, helping provide reliable readings across different water-testing conditions.
Key Features
-
Measures dissolved oxygen in mg/L (ppm) and % saturation
-
Measures temperature in °C or °F
-
Compatible with galvanic DO probes with integrated temperature sensor
-
Automatic salinity, barometric pressure and temperature compensation
-
Up to 2-point calibration
-
IP67 waterproof and dustproof casing
-
Shock-resistant, scratch-resistant and non-slip housing
-
Large 50 × 50 mm backlit monochrome LCD
-
Auto Stable, Auto Hold and real-time measurement modes
-
Automatic data logging with real-time clock and date/time stamp
-
Internal memory for up to 500 readings
-
Built-in electrode holder for two electrodes
-
Programmable automatic shut-off, up to 30 minutes
-
PC connection through optional USB cable
-
Printer connection through optional RS232 cable
-
Powered by 2 × AA batteries with over 500 hours of battery life
-
Three-year meter warranty
Technical Specifications
| Parameter | Specification |
|---|---|
| Dissolved oxygen range | 0.0 to 20.00 mg/L; 0.0 to 200.0% saturation |
| DO resolution | 0.01 mg/L; 0.1% |
| DO accuracy | ±0.1 mg/L |
| Salinity compensation | 0.0 to 40.0 ppt |
| Barometric pressure compensation | Yes |
| Temperature compensation | Yes |
| DO probe type | Galvanic probe with integrated temperature sensor |
| Calibration points | Up to 2 |
| Temperature range | -30.0 to 130.0°C / -22.0 to 266.0°F |
| Temperature resolution | 0.1°C / 0.1°F |
| Temperature accuracy | ±0.5°C / ±0.9°F |
| Temperature calibration | Yes |
| Data memory | Up to 500 readings |
| Data logging | Automatic |
| Date/time stamp | Yes |
| Measurement modes | Auto Stable, Auto Hold, Real Time |
| Display | Custom backlit LCD, 50 × 50 mm |
| Meter inputs | BNC for DO electrode; phono for temperature sensor |
| Meter output | Phono output for PC/printer connection |
| Housing | IP67 waterproof/dustproof, shock- and scratch-resistant, non-slip |
| Power supply | 2 × AA batteries |
| Battery life | More than 500 hours |
| Dimensions | 160 × 80 × 40.6 mm |
| Weight | Approx. 260 g with batteries; 216 g without batteries |

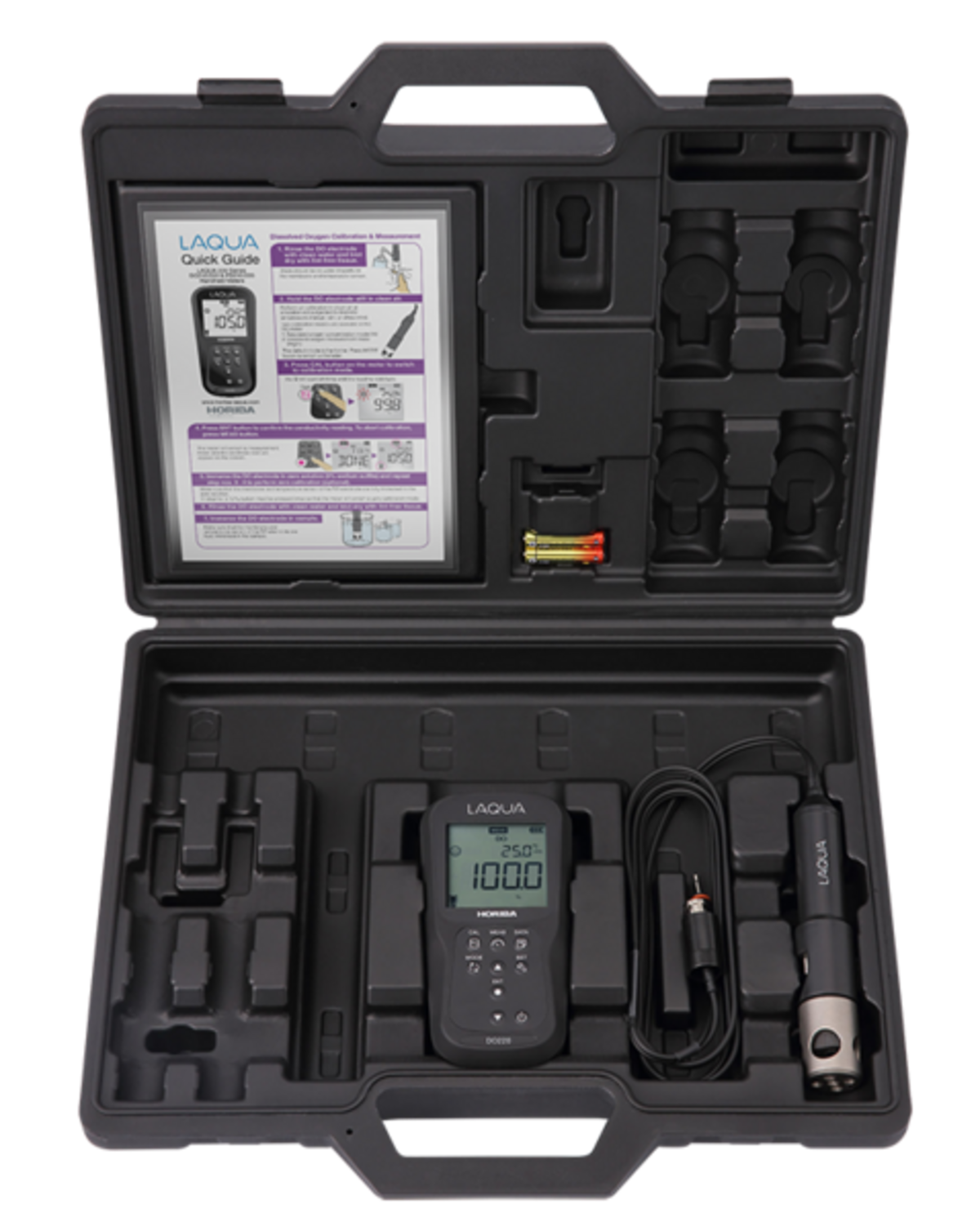

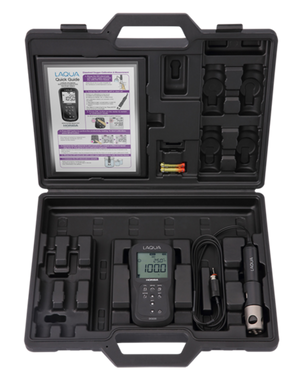

Package Options
DO220-K — 2 m Cable Kit
Order Code: 3200779531
-
LAQUA DO220 dissolved oxygen/temperature meter
-
9552-20D galvanic DO probe with integrated temperature sensor and 2 m cable
-
2 × AA batteries
-
Carrying case
-
Instruction manual and quick guide
DO220-K05 — 5 m Cable Kit
Order Code: 4000009168
-
LAQUA DO220 dissolved oxygen/temperature meter
-
9552-50D galvanic DO probe with integrated temperature sensor and 5 m cable
-
2 × AA batteries
-
Carrying case
-
Instruction manual and quick guide
Suitable Applications
Suitable for dissolved oxygen testing in environmental water monitoring, aquaculture, wastewater and water-treatment processes, lakes and rivers, research laboratories, educational institutions and routine field testing.
