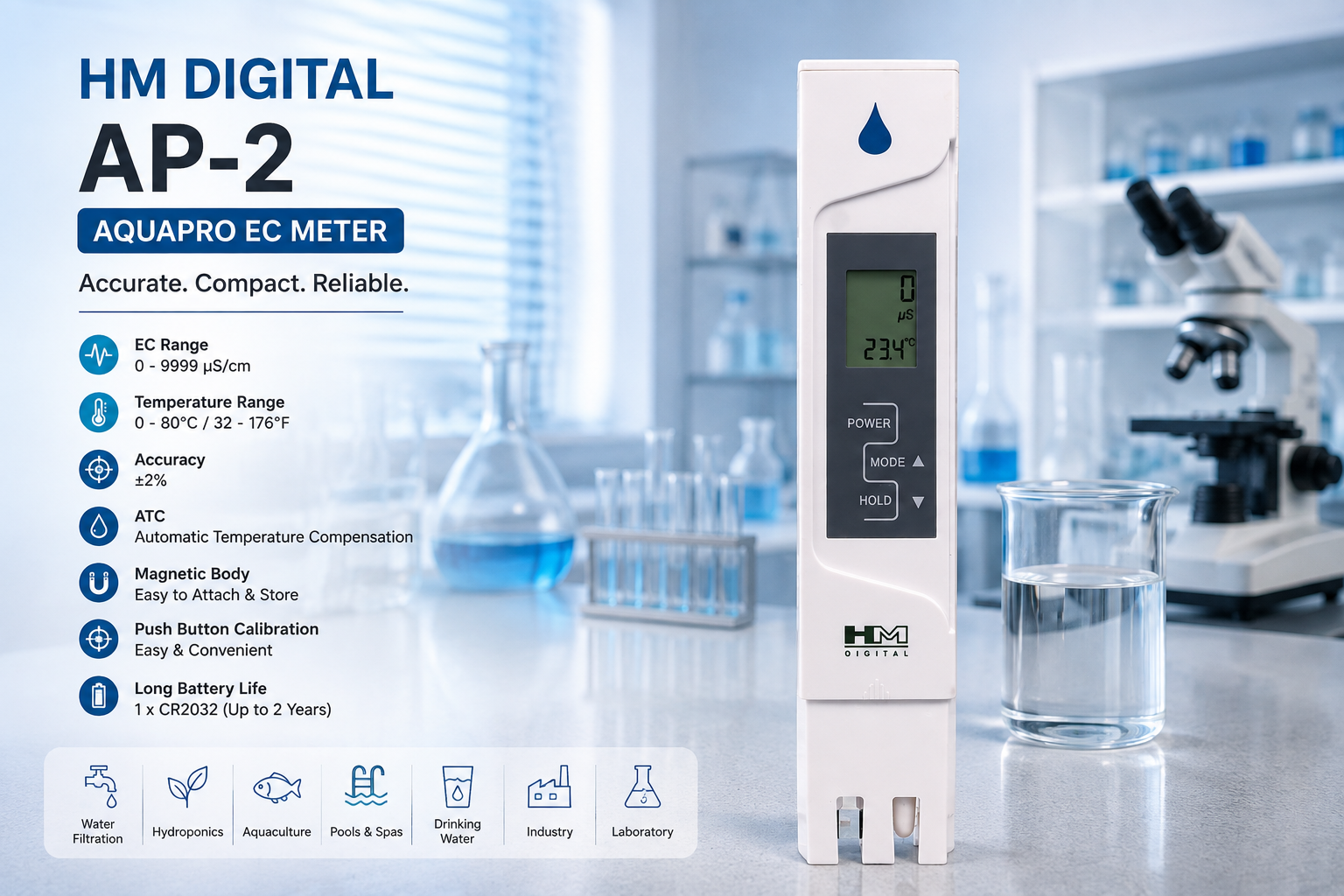

HM Digital AP-2 AquaPro Water Quality Tester | Digital EC & Temperature Meter

Product Name

HM Digital AP-2 AquaPro Water Quality Tester | Digital EC & Temperature Meter | 0–9999 µS/cm | Automatic Temperature Compensation | Push-Button Calibration

Brand

HM Digital

Model

AP-2

Product Series

AquaPro Series

Product Category

Water Quality Testing Instruments → EC / Conductivity Meters

Product Type

Digital Electrical Conductivity (EC) & Temperature Meter

Short Product Description

The HM Digital AP-2 AquaPro is a compact digital water quality tester designed to measure Electrical Conductivity (EC) and temperature. It features a wide EC measurement range of 0–9999 µS/cm, 1 µS resolution, automatic temperature compensation, digital push-button calibration and a large easy-to-read display.

Its water-resistant housing and magnetic body make the AP-2 particularly convenient for home water testing, water filtration, hydroponics, aquaculture, pools, spas and general water-quality monitoring.

Detailed Product Overview

The HM Digital AP-2 AquaPro is a handheld electrical conductivity meter designed for quick and convenient water-quality measurements.

Electrical Conductivity, or EC, measures the ability of water to conduct an electrical current. EC is commonly used as an indicator of the concentration of dissolved ionic substances in water.

The AP-2 provides an EC measurement range from 0 to 9999 µS/cm and simultaneously displays water temperature. Its Automatic Temperature Compensation (ATC) helps compensate for changes in conductivity caused by temperature variations.

The meter uses digital push-button calibration, eliminating the need for a screwdriver-based calibration procedure. It is factory calibrated and can be recalibrated when required.

Key Features

• Measures Electrical Conductivity (EC)

• Simultaneously measures temperature

• EC range: 0–9999 µS/cm

• EC resolution: 1 µS/cm

• Temperature range: 0–80°C / 32–176°F

• Temperature resolution: 0.1°C / 0.1°F

• Accuracy: ±2%

• Automatic Temperature Compensation (ATC)

• Digital push-button calibration

• Large, easy-to-read LCD display

• Water-resistant housing

• Magnetic body for convenient mounting

• Data-hold function

• Low-battery indicator

• Automatic shut-off

• Compact and lightweight design

• Battery powered

• Factory calibrated

• Designed for household and professional water-quality applications

Technical Specifications

The specifications above are based primarily on HM Digital's current product documentation.

What is EC?

EC stands for Electrical Conductivity.

Electrical conductivity indicates how easily electrical current can pass through water. Dissolved ions such as salts and minerals increase conductivity.

EC is commonly used for:

• Water-quality monitoring

• Hydroponics

• Agriculture

• Aquaculture

• Water filtration

• Industrial water systems

• Pool and spa monitoring

• Laboratory testing

The AP-2 displays EC in µS/cm (microsiemens per centimetre).

EC Conversion

1 mS/cm = 1000 µS/cm

For example:

• 500 µS/cm = 0.5 mS/cm

• 1000 µS/cm = 1.0 mS/cm

• 2500 µS/cm = 2.5 mS/cm

• 5000 µS/cm = 5.0 mS/cm

Does the AP-2 Measure TDS?

The AP-2 is officially specified by HM Digital as an EC meter.

Some marketplace listings describe the AP-2 as a TDS/EC tester because EC can be used to estimate TDS. However, for your website, I recommend listing the primary measurement as EC, rather than claiming that the AP-2 directly measures TDS.

This avoids confusing it with HM Digital's dedicated TDS models.

Recommended website wording:

"Measures Electrical Conductivity (EC) and temperature. EC can be used as an indicator of dissolved ionic content in water."

Automatic Temperature Compensation

The AP-2 includes Automatic Temperature Compensation (ATC).

Because electrical conductivity changes with temperature, ATC helps compensate for temperature-related changes and provides more consistent EC measurements across the meter's operating temperature range.

ATC Range: 0–80°C.

Digital Calibration

The AP-2 uses push-button digital calibration.

This makes calibration easier compared with meters requiring a small calibration screwdriver.

The manufacturer states that the meter is factory calibrated and can be digitally recalibrated when required. Current HM Digital documentation references factory calibration using a 700 µS solution, while some older manuals reference 1413 µS. For a current website listing, the manufacturer's current product page should take precedence.

Magnetic Body

One of the distinctive features of the AP-2 is its magnetic body.

This allows the meter to be conveniently attached to suitable metal surfaces, with HM Digital specifically highlighting use on a refrigerator.

This makes it particularly suitable for home users who want quick access to their water-testing meter.

Water-Resistant Housing

The AP-2 features a water-resistant housing designed to protect the meter from normal splashes and contact associated with water testing.

Important: It should be described as water-resistant, not fully waterproof or IP-rated, unless the actual product documentation supplied with your stock specifies otherwise.

Applications

1. Drinking Water Testing

The AP-2 can be used to monitor the electrical conductivity of drinking water and compare water quality before and after filtration.

2. RO & Water Filtration

Useful for checking changes in conductivity across water filtration systems.

It can help users compare:

Feed Water → Filtered Water → Product Water

A significant change in EC can indicate that the filtration system is removing dissolved ionic substances.

3. Hydroponics

EC is an important parameter for monitoring nutrient concentration in hydroponic water.

The AP-2 can be used to monitor EC levels in nutrient solutions.

4. Aquaculture

Can be used for monitoring conductivity in water used for fish and aquatic systems.

5. Aquarium Applications

Useful for general conductivity monitoring in aquarium water and related systems.

6. Swimming Pools & Spas

The AP-2 can be used for conductivity measurements in pool and spa water as part of general water-quality monitoring.

7. Industrial Applications

EC measurements can be useful in:

• Boilers

• Cooling towers

• Process water

• Water treatment

• Filtration systems

HM Digital documentation specifically identifies applications including water-filter performance checking, drinking-water conductivity, nutrient monitoring for plants and fish, pool/spa testing and other EC applications.

Display

The AP-2 features a large digital LCD display designed to make measurements easy to read.

The display provides:

• EC reading

• Temperature reading

• Temperature unit

• Battery status / low-battery indication depending on operating state

The EC and temperature readings can be viewed simultaneously.

Data Hold Function

The Hold function allows the displayed measurement to be retained on the screen.

This is useful when:

• Recording readings

• Testing in difficult-to-view locations

• Comparing multiple samples

• Working away from the testing container

Automatic Shut-Off

The AP-2 includes an automatic shut-off function designed to conserve battery power.

Older HM Digital documentation specifies an automatic shut-off after approximately 5 minutes of inactivity.

Power Supply

Battery: 1 × CR2032
Voltage: 3V
Battery Type: Lithium coin/button cell

The current HM Digital product page specifies a CR2032 battery as included.

Physical Specifications

Dimensions: 15 × 2.8 × 1.3 cm

Weight: Approximately 42.5 g

The compact form factor makes the AP-2 suitable for carrying in a laboratory bag, toolbox or water-testing kit.

Package Contents

A typical AP-2 package includes:

• 1 × HM Digital AP-2 AquaPro EC Meter

• 1 × CR2032 Battery

• 1 × Protective Cap

• 1 × Storage / Carrying Case

• User Documentation

Package contents can vary by market or production/packaging revision, so the contents supplied with your actual inventory should be treated as final.

How to Use

Step 1 — Remove the Protective Cap

Remove the protective cap from the sensor area.

Step 2 — Switch On

Press the power button to turn on the AP-2.

Step 3 — Place the Sensor in the Sample

Immerse the sensor electrodes into the water sample.

Step 4 — Allow the Reading to Stabilize

Wait for the EC and temperature values to stabilize.

Step 5 — Read the Display

The display provides the EC measurement and temperature simultaneously.

Step 6 — Use Hold if Required

Press the Hold function if you need to retain the reading for recording.

Step 7 — Rinse

After testing, rinse the sensor appropriately with clean water and replace the protective cap.

Calibration Recommendation

For reliable measurements:

• Calibrate periodically according to frequency of use.

• Use an appropriate certified EC calibration solution.

• Do not calibrate using distilled or de-ionized water.

• Rinse the sensor before and after calibration.

• Allow the reading to stabilize before completing calibration.

The AP-2's calibration should be performed using an appropriate conductivity calibration standard rather than pure water.

Advantages

Compact Design

Small enough to carry easily.

Wide EC Range

Measures EC from 0 to 9999 µS/cm.

Temperature Measurement

Provides simultaneous temperature measurement.

ATC

Automatic temperature compensation improves consistency when water temperature changes.

Easy Calibration

Push-button digital calibration simplifies the calibration process.

Magnetic Body

Can conveniently be attached to suitable metal surfaces.

Water-Resistant

Designed for normal water-testing environments.

Low Operating Cost

Uses a standard CR2032 coin-cell battery.

Easy to Use

Designed for both professional and consumer water-quality testing.

Ideal Users

The HM Digital AP-2 is suitable for:

• Water-treatment professionals

• RO service technicians

• Water filtration companies

• Laboratory technicians

• Hydroponic growers

• Aquaculture operators

• Aquarium users

• Pool and spa professionals

• Agriculture professionals

• Environmental testing users

• Home water-quality users

• Industrial water-treatment applications

Product Highlights

0–9999 µS/cm EC Range

Wide measurement range suitable for a variety of water-quality applications.

EC + Temperature

Measures electrical conductivity and temperature simultaneously.

Automatic Temperature Compensation

Helps compensate for temperature-related changes in conductivity.

Digital Calibration

Simple push-button calibration.

Magnetic Body

Convenient magnetic design for easy storage.

Water-Resistant

Suitable for everyday water-testing environments.

Compact & Lightweight

Only approximately 42.5 g.
