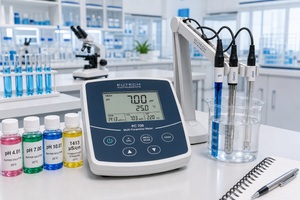

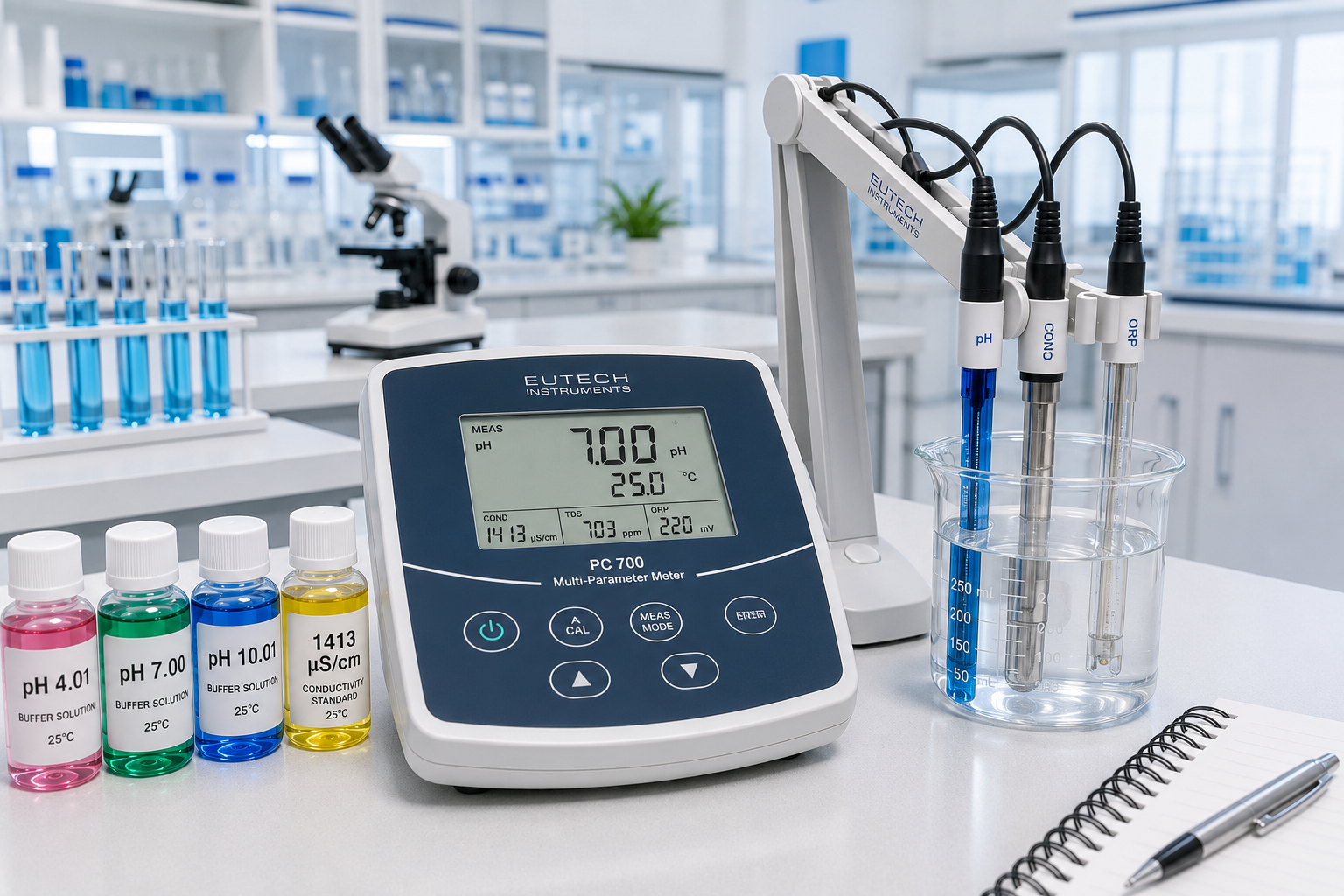

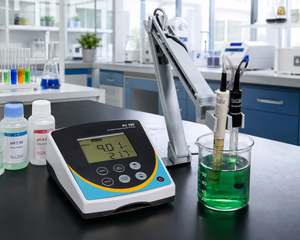

Eutech PC 700 Multi-Parameter Meter

Eutech PC 700 Multi-Parameter Meter

The Eutech PC 700 Multi-Parameter Meter is a professional bench-top instrument designed to measure pH, ORP (Redox), Conductivity (EC), Total Dissolved Solids (TDS), and Temperature with exceptional accuracy and reliability. Combining multiple analytical functions into a single compact unit, the PC 700 is an ideal solution for laboratories, research facilities, educational institutions, water treatment plants, environmental monitoring, and industrial quality control. Featuring advanced calibration options, automatic temperature compensation, auto-ranging conductivity measurement, and built-in data storage, the PC 700 provides dependable performance for routine and advanced laboratory analysis.

⸻

Key Features

• 5-in-1 Multi-Parameter Measurement: Measures pH, ORP (Redox), Conductivity (EC), TDS, and Temperature using a single instrument.

• High-Precision pH Measurement: Measures -2.00 to 16.00 pH with 0.01 pH resolution and ±0.01 pH accuracy.

• ORP Measurement: Measures oxidation-reduction potential up to ±2000 mV for advanced water quality analysis.

• Wide Conductivity Range: Measures from 0.0 µS/cm to 200.0 mS/cm, suitable for ultra-pure water through highly conductive samples.

• Automatic Conductivity Ranging: Automatically switches across five conductivity ranges for seamless operation.

• Accurate TDS Measurement: Measures TDS up to 100.0 ppt (or 200.0 ppt depending on the selected TDS factor) with an adjustable conversion factor of 0.40–1.00.

• Advanced 5-Point Calibration: Supports up to 5-point calibration for pH, conductivity, and TDS, ensuring maximum measurement accuracy.

• Selectable Cell Constants: Compatible with 0.1, 1.0, and 10.0 cell constants for various applications.

• Automatic & Manual Temperature Compensation: Ensures reliable readings across varying sample temperatures.

• Large Dual LCD Display: Clearly displays measurement values along with temperature in °C or °F.

• Built-in Stability Indicator: Indicates when readings have stabilized for confident measurements.

• Data Memory: Stores up to 100 measurement records in non-volatile memory.

• Interchangeable Probes: Easily switch between pH/ORP electrodes and conductivity probes for enhanced versatility.

• Integrated Electrode Holder: Provides stable and convenient electrode positioning during testing.

• Universal Power Supply: Operates using a 100–240 VAC power adapter, making it suitable for laboratories worldwide.



Technical Specifications

Specification  Details

Measurement Parameters : pH, ORP, Conductivity (EC), TDS, Temperature

pH Range : -2.00 to 16.00 pH

pH Resolution : 0.01 pH

pH Accuracy : ±0.01 pH

ORP Range : ±2000 mV

ORP Resolution : 0.1 mV / 1 mV

ORP Accuracy : ±0.2 mV (within ±199.9 mV), ±2 mV (beyond)

Conductivity Range : 0.0 µS/cm to 200.0 mS/cm

Conductivity Accuracy : ±1% Full Scale

Conductivity Calibration : Up to 5 Points

Cell Constants : 0.1, 1.0, 10.0 (Selectable)

TDS Range : Up to 100.0 ppt (0.5 factor) / 200.0 ppt (1.0 factor)

TDS Factor : Adjustable (0.40–1.00)

Temperature Range : 0.0 to 100.0°C (32.0 to 212.0°F)

Temperature Resolution : 0.1°C / 0.1°F

Temperature Accuracy : ±0.5°C

Temperature Compensation : Automatic (ATC) / Manual (MTC)

Data Memory : 100 Readings

Display : Large Dual LCD

Power Supply : 9 V DC Adapter (100–240 VAC)

Applications

The Eutech PC 700 is ideal for a wide range of professional applications, including:

• Water & Wastewater Treatment
• Drinking Water Quality Analysis
• Environmental Monitoring
• Chemical & Analytical Laboratories
• Food & Beverage Industry
• Pharmaceutical Laboratories
• Industrial Process Monitoring
• Cooling Towers & Boiler Water Testing
• Agriculture & Hydroponics
• Educational & Research Institutions
• Quality Assurance & Quality Control (QA/QC)

Why Choose the Eutech PC 700?

The Eutech PC 700 Multi-Parameter Meter offers a powerful combination of accuracy, flexibility, and efficiency by integrating pH, ORP, Conductivity, TDS, and Temperature measurements into a single laboratory instrument. With advanced 5-point calibration, automatic ranging, automatic temperature compensation, interchangeable probes, and 100-reading memory, it is designed to deliver consistent and reliable performance for demanding laboratory and industrial applications. Whether conducting routine water quality testing or advanced research, the PC 700 provides the precision and convenience professionals depend on.
