Short Description

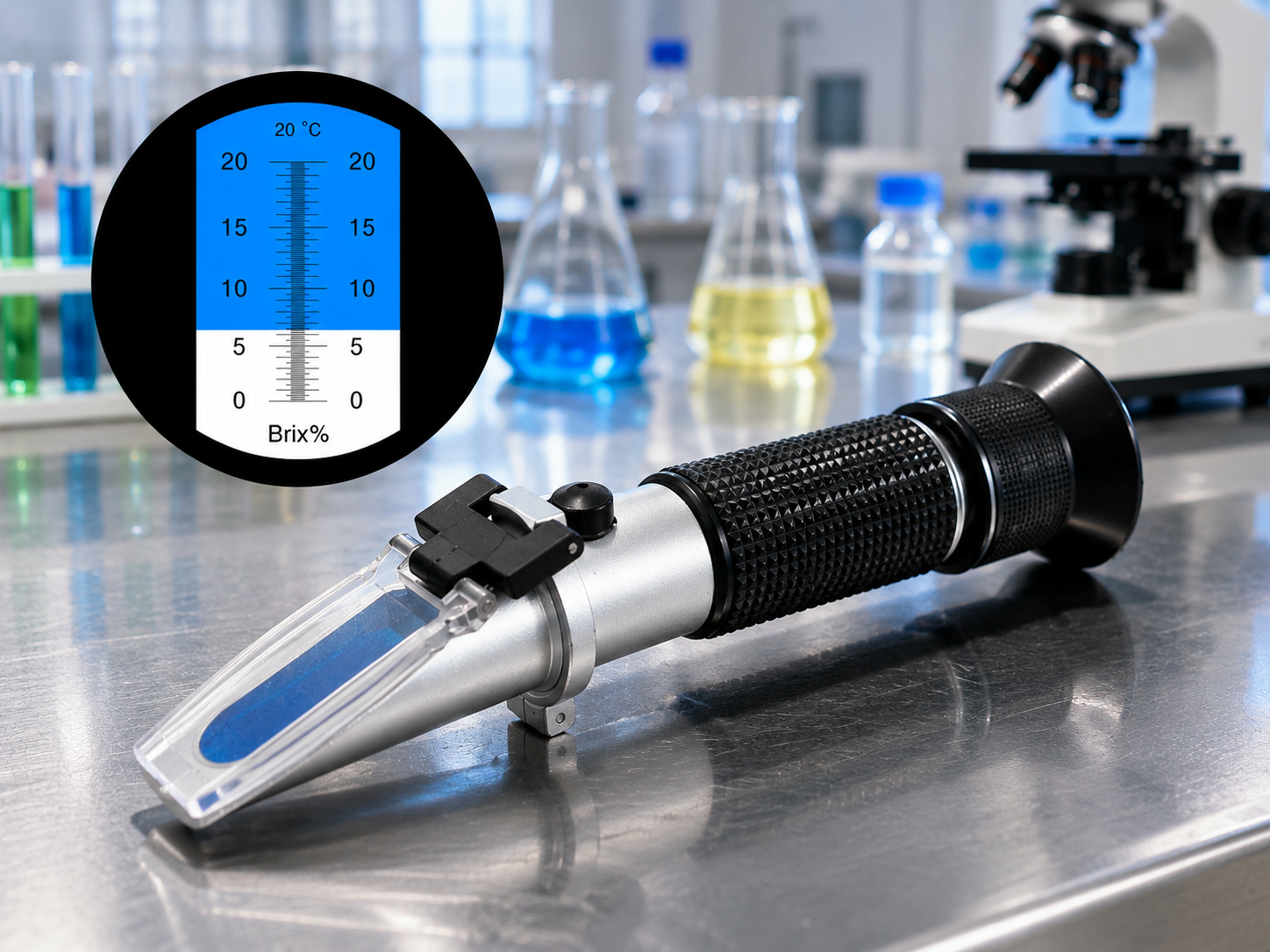

The ERMA 0–20% Brix Hand Refractometer is a portable optical instrument designed for measuring the Brix value/total soluble solids of liquid samples. It is suitable for fruit juices, beverages, food processing, agriculture, restaurants, industrial kitchens and laboratory quality control. The ERMA model is specified with a 0–20% Brix range, 0.1% Brix minimum division, ATC and adjustable calibration.

Key Features

• Brix Measurement Range: 0–20% Brix
• Minimum Division: 0.1% Brix
• Automatic Temperature Compensation (ATC)
• Adjustable calibration
• Handheld optical design
• Clear, easy-to-read scale
• Requires only a few drops of sample
• No battery required for optical measurement
• Compact and portable
• Durable metal/aluminium body
• Comfortable non-slip grip
• Suitable for laboratory and field testing
• Protective carrying case

Technical Specifications

Product Description

The ERMA Hand Refractometer 0–20% Brix works on the optical principle of refraction to determine the concentration of dissolved substances in a liquid. A small quantity of sample is placed on the prism, and the resulting light/dark boundary is viewed through the eyepiece against the calibrated Brix scale.

Its 0–20% Brix range makes it particularly useful for relatively low-to-medium concentration samples such as fruit juices, beverages, sugar solutions and other food-processing liquids.

The instrument incorporates Automatic Temperature Compensation (ATC) to help compensate for temperature effects during measurement.

What is Brix?

°Brix is a commonly used scale for expressing the concentration of dissolved solids in a liquid, particularly sucrose solutions.

For a pure sucrose-water solution, a reading of approximately 10° Brix corresponds to about 10 g of sucrose per 100 g of solution.

For fruit juice, beverages and other complex samples, the Brix reading is generally used as an indication of total soluble solids (TSS) rather than an exact measurement of sugar alone.

Applications

🍊 Food & Beverage Industry

• Fruit juice testing
• Juice concentration measurement
• Soft drinks
• Syrups
• Sugar solutions
• Jams and preserves
• Food-processing liquids
• Beverage quality control

🍎 Agriculture & Horticulture

• Fruit maturity testing
• Produce quality assessment
• Harvest quality control
• Fruit juice/TSS measurement
• Agricultural research

🧪 Laboratory & Quality Control

• Raw-material inspection
• In-process quality control
• Finished-product testing
• Soluble-solids measurement
• Research and development

🏭 Industrial Applications

• Process concentration checks
• Water-soluble formulations
• Certain industrial liquids
• Lubricant/process quality control

ERMA hand refractometers are also marketed for process and quality control, lubricant control, food processing, agriculture, restaurants and industrial kitchens.

How to Use

1. Open the daylight/sample cover.
2. Clean the prism with distilled or deionized water.
3. Dry the prism with a soft, lint-free cloth.
4. Place a few drops of the sample onto the prism.
5. Close the cover gently.
6. Ensure the sample spreads evenly over the prism.
7. Point the instrument toward a suitable light source.
8. Look through the eyepiece.
9. Adjust the focus until the scale is sharp.
10. Read the Brix value at the boundary between the light and dark areas.
11. Clean the prism immediately after measurement.

Calibration

For routine use, calibrate the refractometer according to the manufacturer's instructions.

A common zero-reference check uses distilled/deionized water. If adjustment is required, use the supplied calibration mechanism.

Because temperature can affect refractive-index measurements, calibration and testing should be performed in accordance with the instrument's specified temperature conditions. The ERMA 1E2-02 is specified with ATC and adjustable calibration.

Advantages

✔ 0–20% Brix Range

Suitable for low-to-medium concentration liquid samples.

✔ Automatic Temperature Compensation

Helps compensate for temperature-related measurement variation.

✔ Small Sample Requirement

Only a few drops are needed for routine testing.

✔ Easy Optical Reading

The built-in optical scale can be viewed directly through the eyepiece.

✔ Portable

Compact handheld construction makes it convenient for laboratory, production and field applications.

✔ No Battery Required

The traditional optical design operates using ambient light.

✔ Adjustable Calibration

Allows the instrument to be checked and adjusted for routine measurements.

✔ Durable Construction

Metal/aluminium-style construction with a textured grip is commonly specified for ERMA handheld refractometers.

Package Contents

Typical package:

• 1 × ERMA Hand Refractometer 0–20% Brix
• 1 × Protective storage/carrying case
• 1 × Calibration screwdriver
• 1 × Sample dropper/pipette
• 1 × Cleaning cloth
• 1 × User manual

Note: Package contents can vary according to supplier and product version. Confirm the actual supplied accessories before publishing them as guaranteed inclusions.

Product Highlights

0–20% BRIX RANGE
0.1% BRIX MINIMUM DIVISION*
AUTOMATIC TEMPERATURE COMPENSATION
ADJUSTABLE CALIBRATION
OPTICAL SCALE
FEW-DROP SAMPLE
PORTABLE DESIGN
NO BATTERY REQUIRED

Suitable For

Fruit Juice Testing | Beverage Testing | Sugar Solutions | Food Processing | Agriculture | Fruit Maturity Testing | Laboratory QC | Research & Development | Restaurants | Industrial Kitchens
