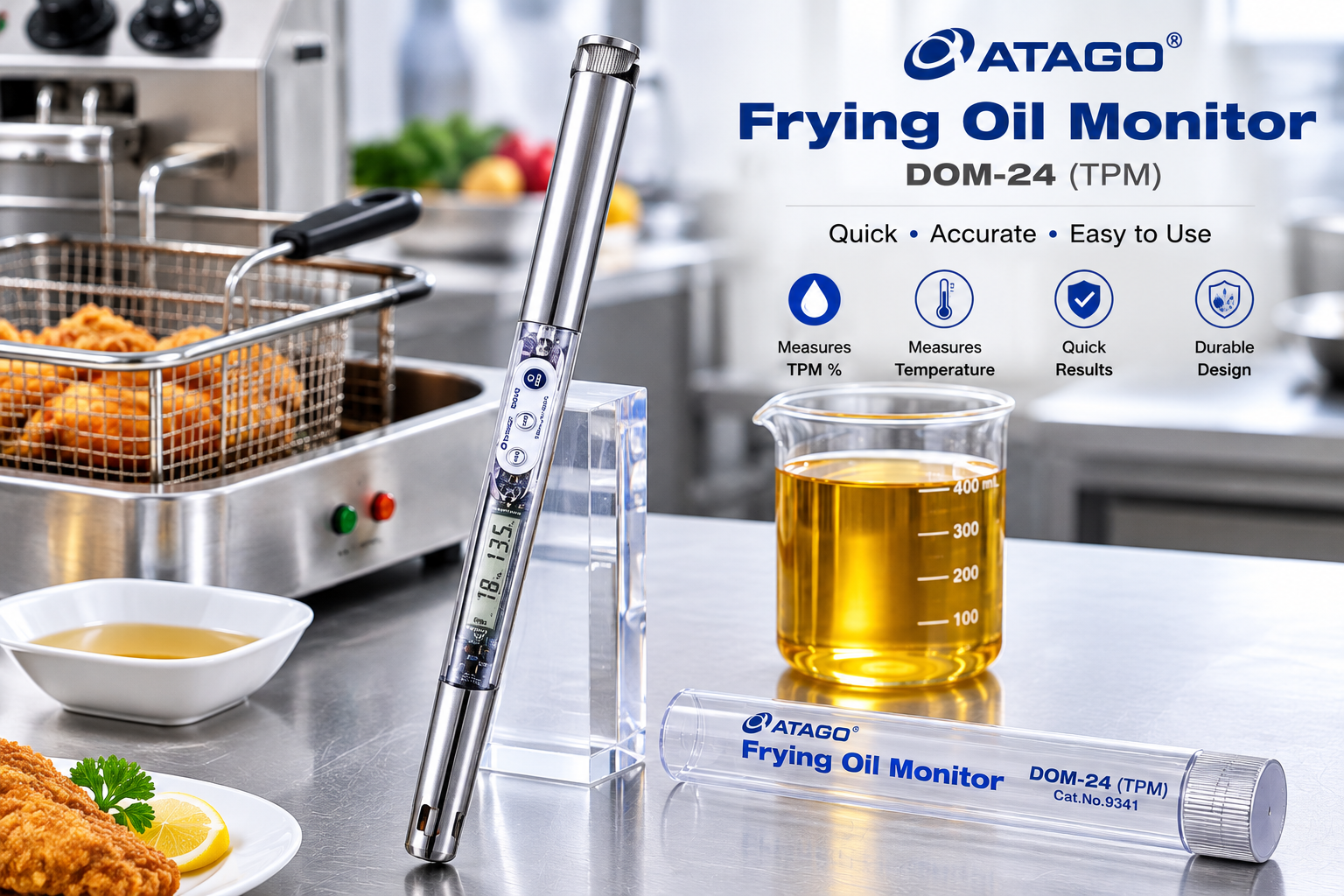

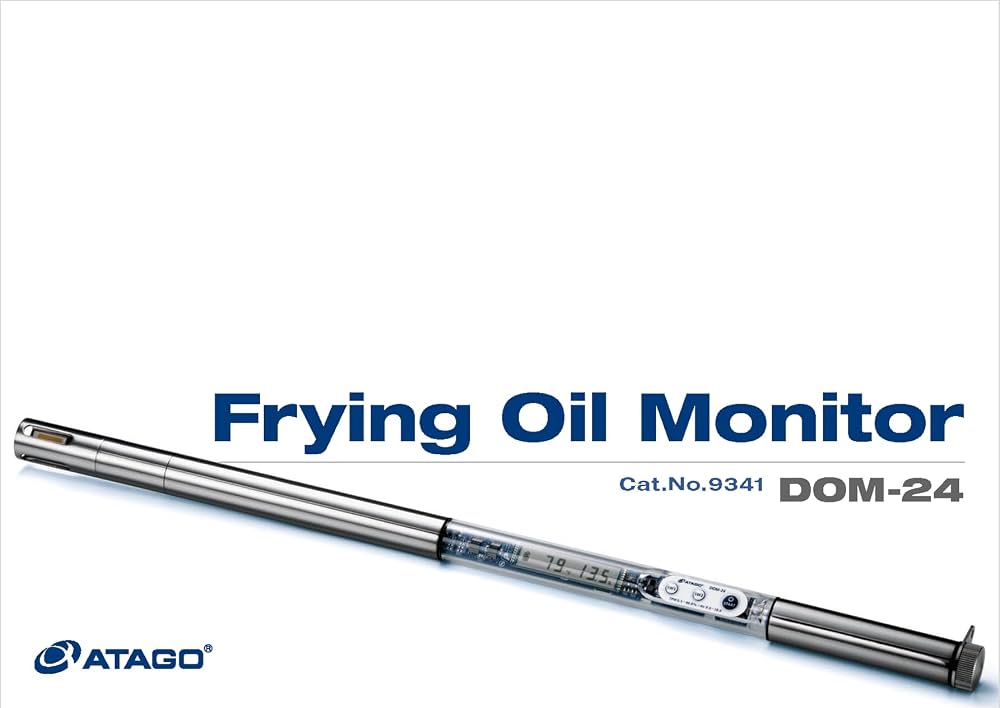

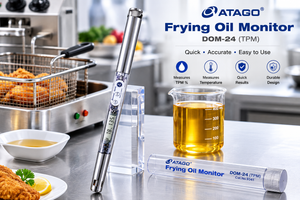

ATAGO DOM-24 Frying Oil Monitor | TPM & Acid Value (AV) Meter | 0.5–40.0% TPM | 0–225°C Temperature Range | IP67 | Cat. No. 9341
Product Brochure
For more details about this product, download the brochure.
Short Description
ATAGO DOM-24 is a professional digital frying-oil monitor designed to quickly evaluate cooking-oil deterioration by measuring Total Polar Materials (TPM) and Acid Value (AV), while also displaying oil temperature. It is designed for food-service kitchens, restaurants, food-processing facilities and quality-control applications.
Key Features
- Measures Total Polar Materials (TPM)
- Measures Acid Value (AV)
- Measures frying-oil temperature
- Automatic Temperature Compensation (ATC)
- Measurement results available in approximately 30 seconds
- No reagent or test strips required
- Direct measurement in frying oil
- IP67 water-resistant construction
- Rugged, impact-resistant design
- Easy-to-read digital display
- Battery operated for portable use
- Helps establish a numerical basis for determining when frying oil should be replaced
- Suitable for HACCP-oriented frying-oil quality management
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | DOM-24 |
| Cat. No. | 9341 |
| TPM Measurement Range | 0.5–40.0 % |
| TPM Resolution | 0.5 % |
| TPM Accuracy | ±2.0 % |
| Acid Value (AV) Range | 0.00–9.99 |
| AV Resolution | 0.01 |
| AV Accuracy | ±0.2 |
| Temperature Range | 0–225°C / 32–437°F |
| Temperature Resolution | 1°C / 1°F |
| Temperature Accuracy | ±1°C / ±2°F |
| Accuracy Guarantee | 20–200°C / 68–392°F |
| Power Supply | 2 × AAA alkaline batteries |
| Protection Class | IP67 |
| Dimensions | Approx. Ø22 × 490 mm |
| Weight | Approx. 400 g, main unit only |
| Display | Digital LCD |
| Measurement Principle | Sensor-based direct measurement in frying oil |
These specifications are based on ATAGO's current product information and catalogue; ATAGO notes that specifications and appearance may change without notice.
What Does DOM-24 Measure?
TPM – Total Polar Materials:
TPM provides a numerical indication of frying-oil deterioration and is useful for monitoring the overall condition of cooking oil.
AV – Acid Value:
The DOM-24 can display an Acid Value based on a calibration curve, providing an additional numerical indicator of changes in cooking-oil properties.
Temperature:
The instrument measures oil temperature from 0 to 225°C, allowing oil quality readings to be assessed together with temperature.
Applications
- Commercial restaurants
- Fast-food kitchens
- Hotels and catering operations
- Food-processing industries
- Fried-food manufacturing
- Central kitchens
- Bakery and snack-food production
- Quality-control laboratories
- Food-service hygiene monitoring
- Frying-oil replacement monitoring
- HACCP-based food-quality management
How to Use
- Switch on the DOM-24.
- Select TPM or AV measurement mode.
- Immerse the sensor into the frying oil up to the specified immersion line.
- Start the measurement.
- Gently stir the oil where appropriate to obtain a representative sample.
- Wait for the reading to stabilize.
- Read the TPM/AV and temperature values on the LCD.
ATAGO describes the DOM-24 as requiring no special preparation or setup before measurement, with readings available once the measurement stabilizes.
Included / Optional Accessories
Standard product: DOM-24 main instrument.
Available accessories:
- Oil Monitor Liquid TPM 7.0%, 70 mL – RE-99300
- Short Strap – RE-79430
Why Choose ATAGO DOM-24?
The DOM-24 allows kitchens and food manufacturers to replace subjective visual judgement with numerical oil-quality measurements. This can help avoid replacing usable oil too early, while also helping identify oil that has deteriorated and should be replaced.
Description
Short Description
ATAGO DOM-24 is a professional digital frying-oil monitor designed to quickly evaluate cooking-oil deterioration by measuring Total Polar Materials (TPM) and Acid Value (AV), while also displaying oil temperature. It is designed for food-service kitchens, restaurants, food-processing facilities and quality-control applications.
Key Features
- Measures Total Polar Materials (TPM)
- Measures Acid Value (AV)
- Measures frying-oil temperature
- Automatic Temperature Compensation (ATC)
- Measurement results available in approximately 30 seconds
- No reagent or test strips required
- Direct measurement in frying oil
- IP67 water-resistant construction
- Rugged, impact-resistant design
- Easy-to-read digital display
- Battery operated for portable use
- Helps establish a numerical basis for determining when frying oil should be replaced
- Suitable for HACCP-oriented frying-oil quality management
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | DOM-24 |
| Cat. No. | 9341 |
| TPM Measurement Range | 0.5–40.0 % |
| TPM Resolution | 0.5 % |
| TPM Accuracy | ±2.0 % |
| Acid Value (AV) Range | 0.00–9.99 |
| AV Resolution | 0.01 |
| AV Accuracy | ±0.2 |
| Temperature Range | 0–225°C / 32–437°F |
| Temperature Resolution | 1°C / 1°F |
| Temperature Accuracy | ±1°C / ±2°F |
| Accuracy Guarantee | 20–200°C / 68–392°F |
| Power Supply | 2 × AAA alkaline batteries |
| Protection Class | IP67 |
| Dimensions | Approx. Ø22 × 490 mm |
| Weight | Approx. 400 g, main unit only |
| Display | Digital LCD |
| Measurement Principle | Sensor-based direct measurement in frying oil |
These specifications are based on ATAGO's current product information and catalogue; ATAGO notes that specifications and appearance may change without notice.
What Does DOM-24 Measure?
TPM – Total Polar Materials:
TPM provides a numerical indication of frying-oil deterioration and is useful for monitoring the overall condition of cooking oil.
AV – Acid Value:
The DOM-24 can display an Acid Value based on a calibration curve, providing an additional numerical indicator of changes in cooking-oil properties.
Temperature:
The instrument measures oil temperature from 0 to 225°C, allowing oil quality readings to be assessed together with temperature.
Applications
- Commercial restaurants
- Fast-food kitchens
- Hotels and catering operations
- Food-processing industries
- Fried-food manufacturing
- Central kitchens
- Bakery and snack-food production
- Quality-control laboratories
- Food-service hygiene monitoring
- Frying-oil replacement monitoring
- HACCP-based food-quality management
How to Use
- Switch on the DOM-24.
- Select TPM or AV measurement mode.
- Immerse the sensor into the frying oil up to the specified immersion line.
- Start the measurement.
- Gently stir the oil where appropriate to obtain a representative sample.
- Wait for the reading to stabilize.
- Read the TPM/AV and temperature values on the LCD.
ATAGO describes the DOM-24 as requiring no special preparation or setup before measurement, with readings available once the measurement stabilizes.
Included / Optional Accessories
Standard product: DOM-24 main instrument.
Available accessories:
- Oil Monitor Liquid TPM 7.0%, 70 mL – RE-99300
- Short Strap – RE-79430
Why Choose ATAGO DOM-24?
The DOM-24 allows kitchens and food manufacturers to replace subjective visual judgement with numerical oil-quality measurements. This can help avoid replacing usable oil too early, while also helping identify oil that has deteriorated and should be replaced.
