Aquasol Digital Table Top pH Meter ABT201M with Built-In Magnetic Stirrer | pH Range (-2) to 16 pH with Stirrer | ORP / pH / Temp | 5-Point Calibration, ATC, Memory | Lab Grade
Description

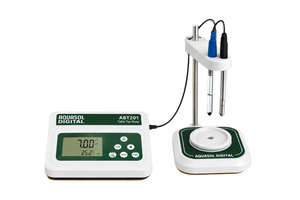

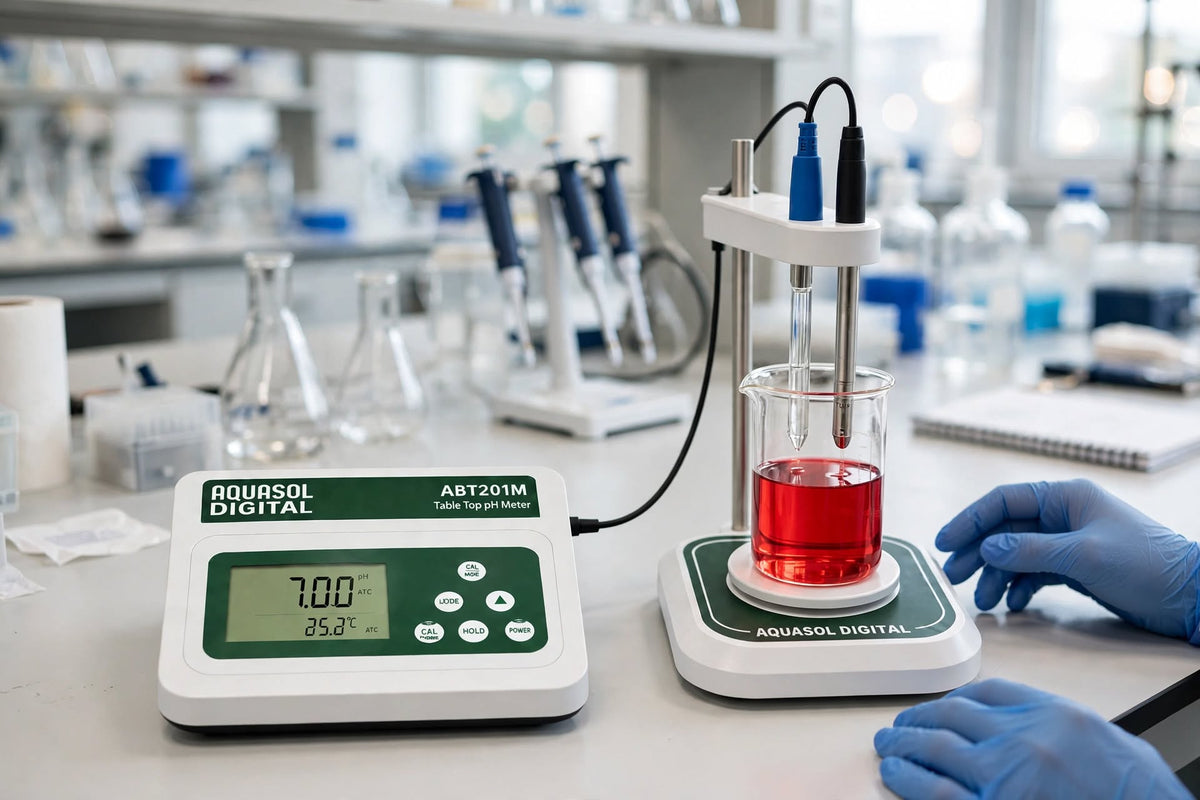

The AQUASOL DIGITAL ABT201M is a laboratory-grade tabletop pH meter designed for accurate and convenient measurement of pH, ORP and temperature. Its built-in magnetic stirrer provides controlled sample mixing during measurement, while automatic temperature compensation (ATC), multi-point calibration and memory functions support reliable routine laboratory analysis.
The compact tabletop design, splash-resistant controls, electrode holder and large display make it suitable for laboratories, water testing, research, education, food processing and industrial quality-control applications. Aquasol tabletop/benchtop meters are designed as multiparameter instruments, with ORP measurement available through the appropriate electrode.
Key Features
- Model: ABT201M
- Brand: AQUASOL DIGITAL
- Instrument Type: Tabletop / Benchtop pH Meter
- pH Range: -2.00 to 16.00 pH
- ORP Measurement: Supported
- Temperature Measurement: Supported
- Built-In Magnetic Stirrer: Yes
- 5-Point pH Calibration: Yes
- Automatic Temperature Compensation (ATC): Yes
- Memory / Data Storage: Yes
- Laboratory Grade Construction
- Large digital display
- Splash-resistant keyboard/control panel
- Electrode holder for convenient operation
- Microprocessor-based operation
- Suitable for routine and advanced laboratory testing
The Aquasol family documentation confirms the built-in stirrer, ATC, electrode holder, memory/USB connectivity and multiparameter capability of this class of instrument.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | AQUASOL DIGITAL |
| Model | ABT201M |
| Product Type | Table Top pH Meter |
| pH Range | -2.00 to 16.00 pH |
| pH Resolution | 0.01 pH |
| ORP | Yes |
| ORP Range | Up to ±1999 mV* |
| Temperature | Yes |
| Temperature Range | 0 to 110°C* |
| Temperature Resolution | 0.1°C* |
| ATC | Yes |
| ATC Range | 0 to 100°C* |
| Calibration | 5-Point Calibration |
| Stirrer | Built-In Magnetic Stirrer |
| Stirrer Control | Variable speed / timer* |
| Display | Large Digital / LCD |
| Memory | Yes |
| Data Connectivity | USB* |
| Keyboard | Splash Resistant |
| Electrode Holder | Integrated |
| Application | Laboratory / Industrial |
| Brand Origin | AQUASOL DIGITAL |
*These values are corroborated for the closely related Aquasol tabletop/benchtop pH/ORP configuration and should be confirmed against the ABT201M datasheet/manual before being treated as model-specific. Aquasol documentation lists -2 to 16 pH, ±1999 mV ORP, 0–110°C temperature, 0.01 pH resolution, ATC and variable-RPM/timer stirrer for the related ABPH01 configuration.
pH Measurement
- Range: -2.00 to 16.00 pH
- Resolution: 0.01 pH
- Calibration: 5-point
- ATC: Automatic Temperature Compensation
- Designed for acidic, neutral and alkaline sample measurement.
ORP Measurement
The meter can be configured for ORP/redox measurement using a compatible ORP electrode. Aquasol's related tabletop/benchtop specification lists an ORP range of approximately ±1999 mV with 1 mV-class resolution.
Temperature Measurement
Temperature measurement supports temperature compensation and monitoring during pH testing. The related Aquasol configuration specifies 0–110°C, with 0.1°C resolution and approximately ±0.2°C accuracy.
Built-In Magnetic Stirrer
The integrated magnetic stirrer helps maintain sample homogeneity during measurement. This is particularly useful where consistent mixing is required for repeatable laboratory measurements.
Aquasol's published bench-top documentation specifically describes its built-in stirrer platform and variable RPM/timer functionality.
5-Point Calibration
The ABT201M supports 5-point pH calibration, allowing users to calibrate the electrode across a wider measurement range.
This is particularly useful when working with samples covering different pH regions and helps maintain measurement accuracy over the operating range.
Recommended practice: use fresh, appropriate certified buffer solutions and follow the instrument manual for the exact calibration sequence and supported buffer set.
Automatic Temperature Compensation
Temperature can influence pH measurement. The built-in ATC function compensates for temperature variation when a compatible temperature sensor is connected.
Benefits include:
- More consistent measurements
- Reduced temperature-related measurement variation
- Convenient laboratory operation
- Improved repeatability
Aquasol's published specifications identify ATC as a standard feature of its tabletop pH meters.
Memory & Data Management
The instrument incorporates a memory/data-storage function for convenient retention of measurement information. Related Aquasol tabletop models also specify USB connectivity for data handling.
Applications
The AQUASOL DIGITAL ABT201M can be used for:
- Water quality testing
- Wastewater analysis
- Drinking-water laboratories
- Environmental testing
- Research laboratories
- Educational institutions
- Pharmaceutical laboratories
- Food and beverage testing
- Chemical laboratories
- Industrial quality control
- Process sample testing
- Agricultural and soil-related laboratory analysis
- General laboratory pH testing
Aquasol tabletop pH instruments are marketed for industrial, laboratory, water-testing, food and educational applications.
Advantages
Laboratory-Grade Tabletop Design
Provides a more stable working platform than handheld testers and is suited to regular laboratory measurements.
Wide pH Range
The -2.00 to 16.00 pH range covers strongly acidic through strongly alkaline samples.
Integrated Stirring
The built-in magnetic stirrer eliminates the need for a separate external stirrer for many routine applications.
Multiparameter Capability
One instrument can support pH and temperature measurements and can be used for ORP when the appropriate electrode is fitted.
ATC
Automatic temperature compensation helps simplify measurements where sample temperature varies.
Multi-Point Calibration
5-point calibration provides flexibility for measurements across a broad pH range.
