AQUASOL DIGITAL ABT203 Table Top Multi-Parameter Meter | pH / Conductivity / TDS / Salinity / Temperature | ATC | Laboratory Water Quality Tester
Product Brochure
For more details about this product, download the brochure.
Description

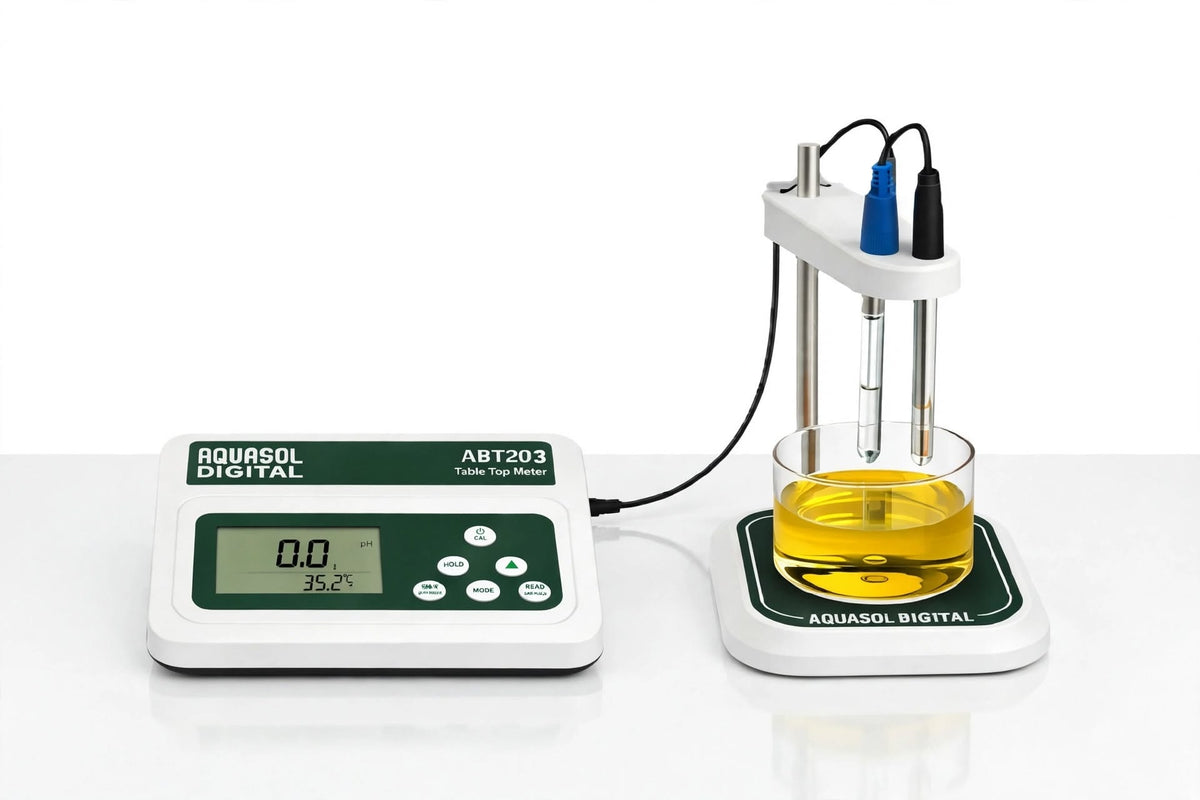

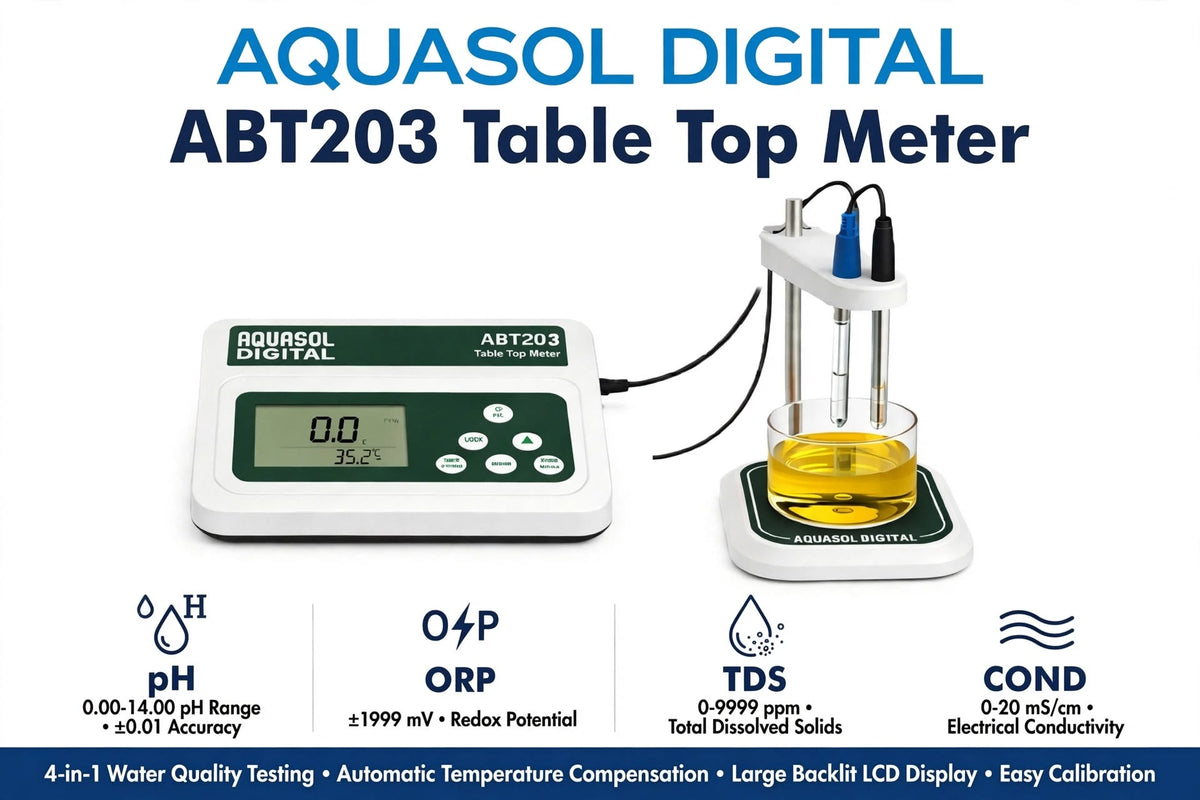

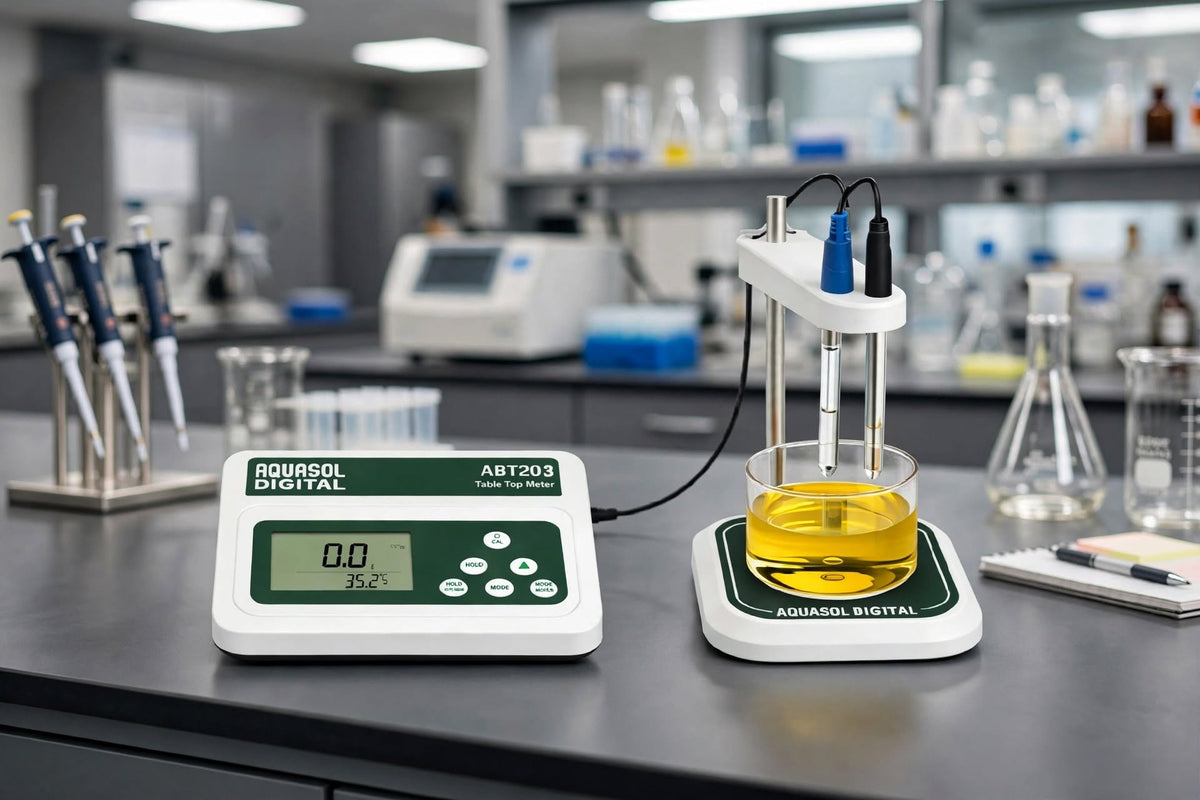

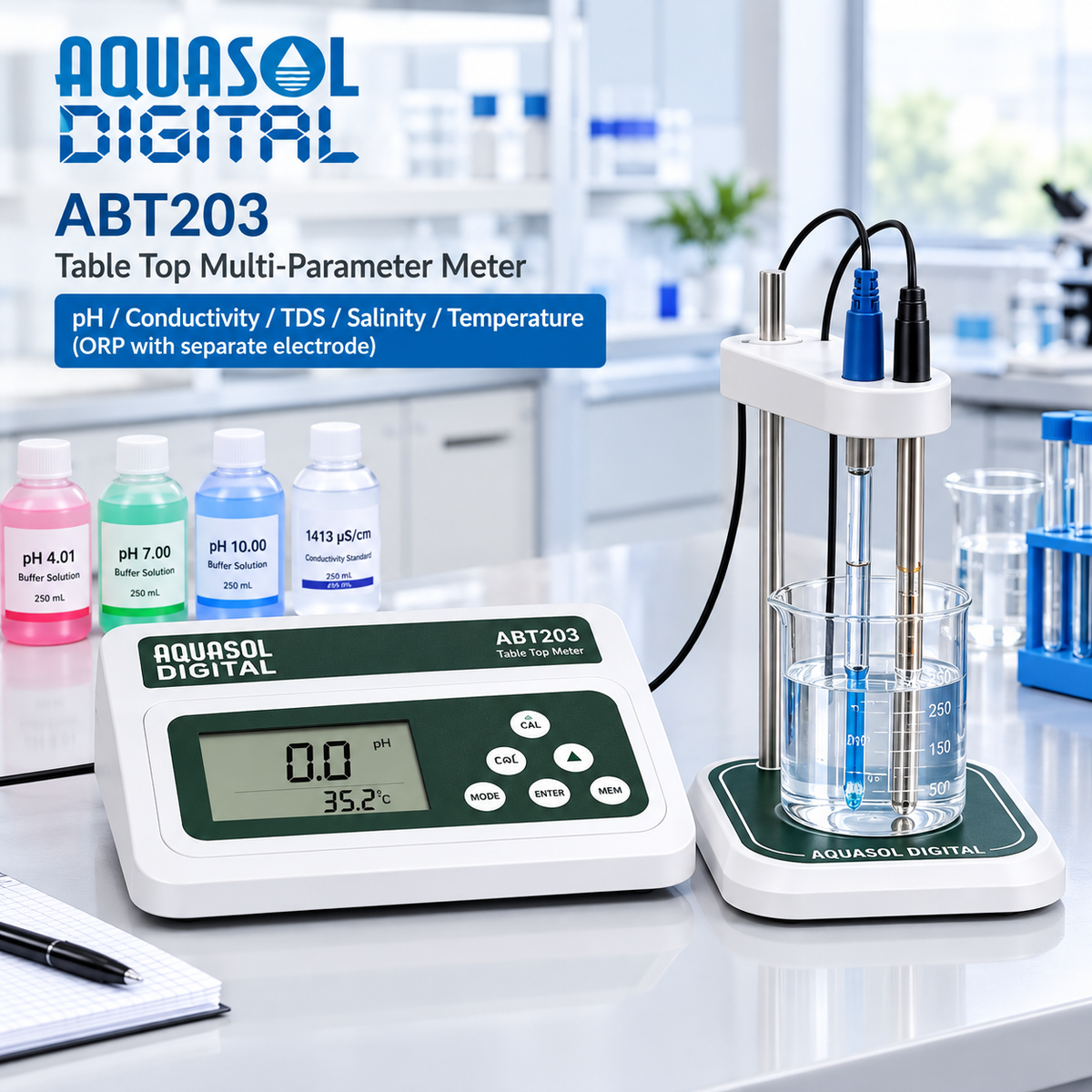

AQUASOL DIGITAL ABT203 is a compact table-top multi-parameter meter for laboratory and industrial water-quality analysis. It provides measurement of pH, Conductivity, TDS, Salinity and Temperature, with ORP measurement available using a separate ORP electrode. The instrument features a large LCD display, rugged ABS housing, splash-proof keyboard, built-in ATC and advanced memory/storage functionality.
Key Features
- Advanced microprocessor-based design
- Multi-parameter measurement capability
- Measures pH, ORP, Conductivity, TDS, Salinity and Temperature
- Large LCD display
- Simultaneous multi-parameter display
- Rugged ABS housing
- Splash-proof keyboard
- Built-in Automatic Temperature Compensation (ATC)
- Advanced storage/memory function
- Automatic calibration functions
- Stable table-top configuration
- Electrode holder with stand supplied
- Suitable for laboratory and industrial water testing
- ORP measurement possible by adding a compatible ORP electrode
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ABT203 |
| pH Range | -2.00 to 16.00 pH |
| pH Accuracy | 1% |
| pH Resolution | 0.01 pH |
| ORP Range | ±1999 mV |
| ORP Accuracy | 2% |
| ORP Resolution | 1 mV |
| Conductivity Range | 0 to 100 mS/cm |
| Conductivity Accuracy | 1% |
| Conductivity Resolution | 1 µS |
| TDS Range | 0 to 66.0 ppt / 66,000 ppm |
| TDS Accuracy | 1% |
| TDS Resolution | 1 ppm |
| Salinity Range | 0 to 50 ppt |
| Salinity Accuracy | 1% |
| Salinity Resolution | 1 ppm |
| Temperature Range | 0 to 110°C |
| Temperature Accuracy | ±0.2°C |
| Temperature Resolution | 0.1°C |
| ATC | Yes |
| ATC Range | 0 to 100°C |
Note: ORP measurement requires a separate AMEORLG ORP electrode, as specified in the supplied datasheet.
Calibration
pH Calibration – USA Mode
- pH 1.68
- pH 4.01
- pH 7.00
- pH 10.00
- pH 12.45
pH Calibration – NIST Mode
- pH 1.68
- pH 4.01
- pH 6.86
- pH 9.18
- pH 12.45
Conductivity Calibration
- 0 µS/cm
- 84 µS/cm
- 1413 µS/cm
- 12.88 mS/cm
- 80 mS/cm
Sensors & Standard Accessories
Included Sensors
- pH Sensor: AMEPHLG
- Conductivity/TDS Sensor: AMECNLG
- Temperature Sensor: AMETEMP
For ORP
- ORP Electrode: AMEORLG — available separately
What's Included in the Box
Standard Packing:
- AQUASOL DIGITAL ABT203 Table Top Meter
- AMEPHLG pH Sensor
- AMECNLG Conductivity/TDS Sensor
- AMETEMP Temperature Sensor
- pH Calibration Solutions – pH 4, 7 & 10
- Conductivity Standard Solution – 1413 µS/cm
- Electrode Holder with Stand
The supplied datasheet specifically lists the pH, conductivity/TDS and temperature sensors and calibration solutions above.
Applications
The ABT203 can be used for:
- Water quality testing
- Drinking water analysis
- RO/DM water testing
- Wastewater testing
- Effluent treatment plants
- Environmental laboratories
- Industrial process water
- Research laboratories
- Quality-control laboratories
- Educational institutions
- Agriculture and irrigation water testing
- Aquaculture
- Food and beverage laboratories
- General chemical and water analysis
Parameter Overview
pH: Indicates the acidic or alkaline nature of an aqueous sample.
Conductivity: Used to assess the ionic conductivity of water and aqueous solutions.
TDS: Provides an indication of the total dissolved solids present in a sample.
Salinity: Useful for measuring dissolved salt concentration in water.
Temperature: Provides temperature measurement and supports temperature compensation.
ORP: Measures oxidation-reduction potential when the appropriate ORP electrode is connected.
Product Benefits
- One instrument for multiple water-quality parameters
- Reduces the need for separate meters
- Easy-to-read LCD
- Laboratory table-top format
- Built-in ATC
- Wide measurement ranges
- Automatic calibration capability
- Memory/storage functionality
- Rugged ABS construction
- Splash-proof operating keyboard
- Replaceable/parameter-specific electrodes
- Suitable for routine professional testing
