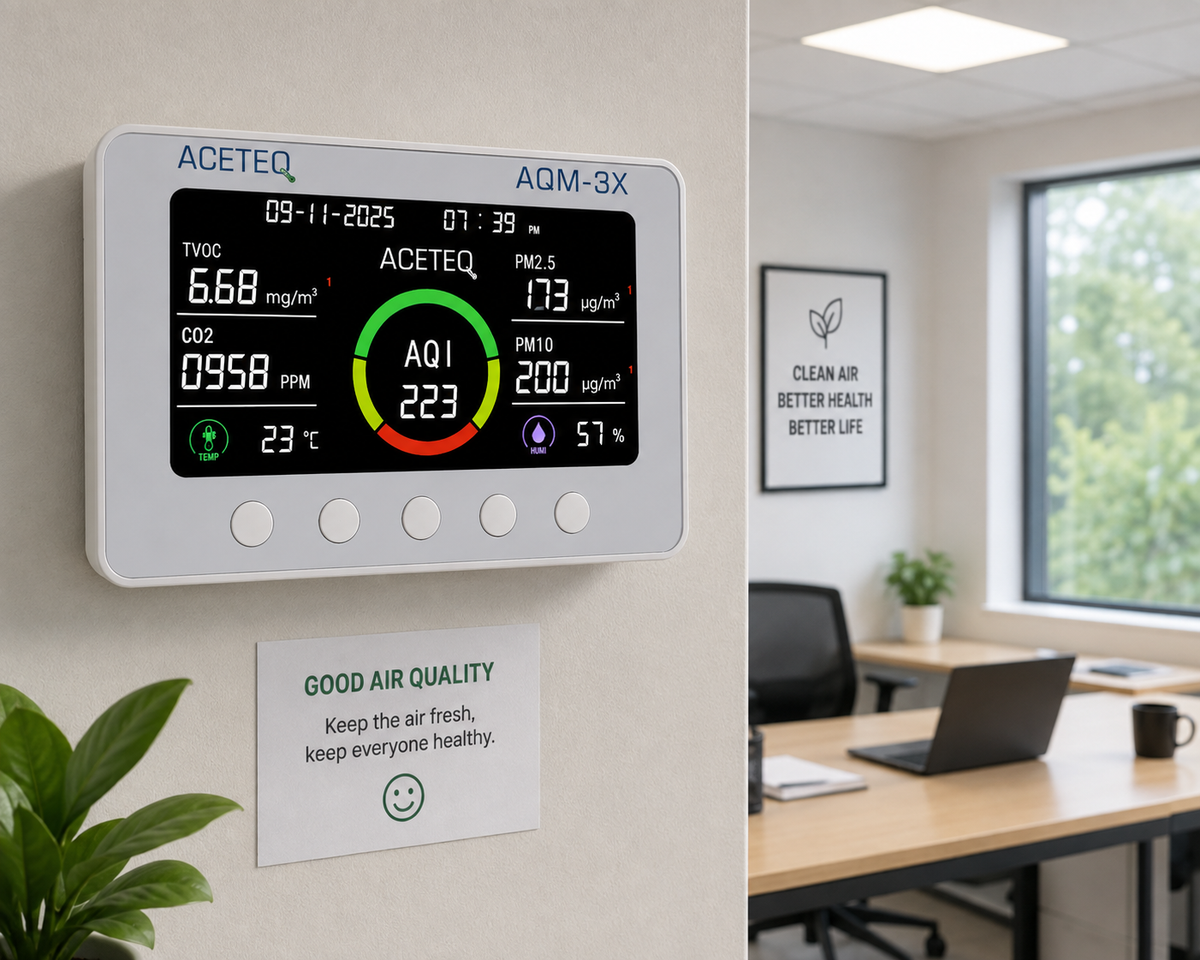

ACETEQ™ AQM-3X Smart IAQ Monitor | PM2.5, PM10, CO₂, TVOC, Temperature, Humidity & AQI | Indoor Air Quality Monitoring System
Description
The ACETEQ AQM-3X Smart IAQ Monitor is an advanced indoor air quality monitoring device designed to provide real-time information about the air conditions in homes, classrooms, offices, gyms, apartments, hotels, and other indoor environments.
The AQM-3X continuously monitors multiple important air-quality parameters, including CO₂, TVOC, PM2.5, PM10, temperature, humidity, and overall Air Quality Index (AQI). Its large color display presents the readings clearly, allowing users to quickly understand the current indoor air quality.
With NDIR CO₂ sensing, laser-based particulate measurement, temperature and humidity monitoring, an AQI display, alarm function, and buzzer, the AQM-3X is suitable for both everyday indoor monitoring and professional environmental assessment.
Key Features
- Real-time Indoor Air Quality (IAQ) monitoring
- Displays AQI from 0–500
- CO₂ measurement using NDIR technology
- TVOC monitoring
- Laser-based PM2.5 and PM10 dust measurement
- Temperature and relative humidity display
- Large, easy-to-read digital display
- Time and date display
- Adjustable alarm function
- Built-in buzzer
- Wall mounting hole for convenient installation
- Multiple parameters displayed simultaneously
- Suitable for continuous indoor air monitoring
Parameters Measured
The ACETEQ AQM-3X provides information on:
- CO₂
- TVOC
- PM2.5
- PM10
- Temperature
- Relative Humidity
- Air Quality Index (AQI)
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | AQM-3X |
| Temperature Measurement Range | -10°C to 55°C |
| Temperature Accuracy | ±2°C |
| Humidity Measurement Range | 5%–95% RH |
| Humidity Accuracy | ±5% RH |
| CO₂ Measurement Range | 400–5000 ppm |
| CO₂ Resolution | 1 ppm |
| CO₂ Accuracy | ±50 ppm or ±5% of reading |
| TVOC Measurement Range | 0–20 mg/m³ |
| PM10 Measurement Range | 0–500 µg/m³ |
| PM2.5 Measurement Range | 0–500 µg/m³ |
| AQI Measurement Range | 0–500 |
| Working Temperature | -10°C to 55°C |
| Working Humidity | 0–95% RH, non-condensing |
| Input Voltage | DC 5V / 2A |
| Product Weight | Approx. 500 g |
| Product Size | 180 × 39 × 119 mm |
Applications
The AQM-3X is ideal for monitoring indoor air quality in:
- Homes – Monitor everyday indoor air conditions
- Classrooms – Help assess ventilation and classroom air quality
- Offices – Monitor CO₂ and particulate levels in workspaces
- Gyms – Track air quality in high-occupancy areas
- Apartments – Monitor indoor environmental conditions
- Hotels – Support air-quality monitoring in guest and common areas
Benefits of Using the AQM-3X
The AQM-3X provides a convenient way to monitor several important air-quality parameters using a single device. By displaying CO₂, particulate matter, TVOC, temperature, humidity, and AQI together, it helps users identify changes in indoor environmental conditions and make informed decisions regarding ventilation and air management.
Its compact design and wall-mounting provision make it suitable for permanent placement, while the large display allows readings to be viewed easily from a distance.
