Description
Analysis Note
Specific surface area (according to BET; 5-Pt. measurement): 480 – 540 m²/g
Pore volume (N₂-isotherm): 0.74 – 0.84 ml/g
d 50 (laser diffraction, size distribution): 9.7 – 11.7 µm
Layer thickness: 175 – 225 µm
Deviation of layer thickness per plate: ≤ 30 µm
A) Colour test
Bleu VIF Organol: 11 – 25
Ceres black: 34 – 48
Ceres violet BRN: 52 – 67
Separation number: ≥ 10.5
B) Steroid test
Hydrocortisone: 25 – 37
Reichstein S: 37 – 49
Methyltestosterone: 42 – 54
Typical value determined on a conditioned sheet
Eluent A) Toluene (45% rel.humidity)
Eluent B) Ethyl acetate/Toluene (95/5 v/v; 20% rel.humidity)
Application

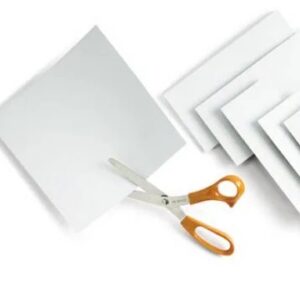

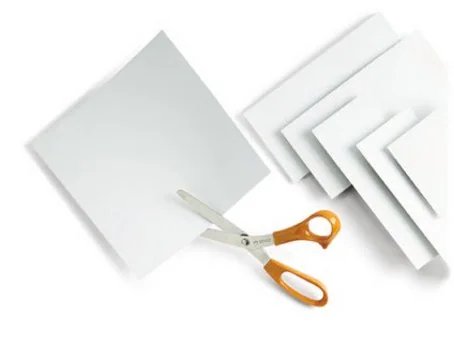

Aluminum TLC plate, silica gel coated with flourescent indicator F254. The silica gel TLC plates come in a quantity of 25 size 20×20 cm for thin layer chromatography applications.
General description

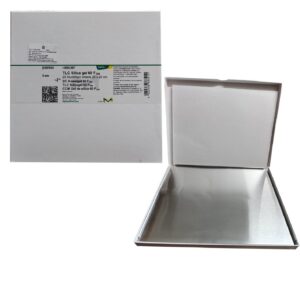

25 Aluminium sheets 20 x 20 cm
Our classical silica TLC plates are based on a combination of our proven silica gel 60 and the addition of a unique polymeric binder resulting in a very adherent and hard surface that will not crack or blister and even allow writing with a pencil on the surface without risk to damage the layer.
